JPW-130MQ TO-5 Relay

The function index, performance index of the relay is equal to international same kinds mainstream military products. The relay is produced by semi-automatization production line. It has high reliability. It has the features of small size, long life, high environmental performance indicators, etc. It is suitable for the aerospace aviation, and ground equipment, it can replace the imported products.



Environmental Characteristics

Environmental Specifications
Temperature Range (℃) -65~+125
Relative Humidity (40±2) ℃, 90%~95%
Vibration (Hz) 10~3000
(m/s2) 294
Random Vibration (m/s2)2/Hz) 40
Shock (m/s2) 735
Acceleration (m/s2) 735

Electrical Characteristics

Contact Arrangement 2 Form C (DPDT) Operate Time (ms) ≤6.0
Coil Operating Power (W) 0.5 Release Time (ms) ≤3.0
Leak Rate (atm.cm3/s) ≤1 X 10-9 Contact Load Ratings Resistive 1.0A, 28V d.c.
Contact Resistance (Ω) Initial ≤0.1
After life ≤0.25
Insulation Resistance (MΩ) 25℃ ≥10000 (500V d.c.) Low level 10µA~50µA, 10mV~50mV
125℃ ≥1000 (500Vd.c.)
Dielectric Strength Vr.m.s.(50Hz) Normal ≥500
Low pressure ≥125 Contact Life Ratings 1 X 105Cycles
Mass (g) ≤4.5 Contact Overload Rating DC, 2.0A, 28V d.c., 100 Cycles


Detailed Electrical Specifications (-65°C to 125°C) Vd.c.

Coil Code Coil Voltage 25℃ -65℃ to 125℃
Nominal Maximum Coil Resistance (1±10%) Ω Pick-up Voltage max Drop-out Voltage min Pick-up Voltage max Drop-out Voltage min
005 5 5.8 100 3.6 0.23 4.5 0.12
012 12 16.0 850 9.0 0.64 10.0 0.41

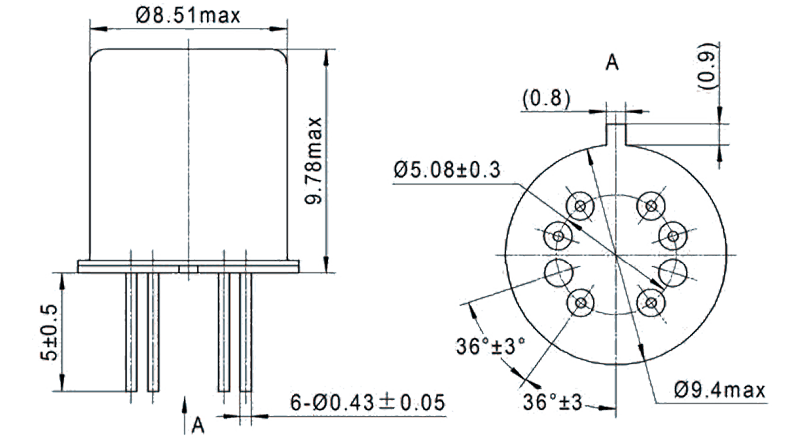

Dimensions Connection Diagram Resistive Load
jpw 130mq dimension - JPW-130MQ TO-5 Relay jpw 130mq Connection diagram - JPW-130MQ TO-5 Relay

Viewed from bottom side

jpw 130mq resistive load - JPW-130MQ TO-5 Relay


RF Parameters

Parameters Unit Target
Frequency GHz 0.05 – 3
Insertion Loss (dB) ≤0.9
Isolation (dB) ≥26
VSWR ≤1.6


Order mark

Example: J65B/XP30009-027JPW-130MQ

J 65B / XP30009 027 JPW-130MQ
Relay Series Coil Code Detailed Specification Number Specification Number Style Symbol
