Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-40°C ~ 60°C |
| Relative Humidity |
30°C ~ 60°C, 95% |
| Random Vibration |
20 Hz ~ 80 Hz |
80 Hz ~ 101 Hz |
101 Hz ~ 1016 Hz |
1016 Hz ~ 2000 Hz |
| 0.5 (m/s2) 2/Hz |
+3 dB/Oct |
2.3 (m/s2) 2/Hz |
-3 dB/Oct |
| Shock |
400 m/s2 |
| Acceleration |
120 m/s2 |
| Circuitry |
2 NC |
| Weight |
≤ 200 g |
| Connection Types |
JYS6P0404SN plug |
| Pretravel |
2 mm ± 0.3 mm |
| Total Travel |
14 mm ± 0.4 mm |
| Total Travel Force |
≤ 75 N |
| Life |
2500 cycles |
Electrical Ratings
| Contact Rating |
28 Vd.c., 5 A |
| Contact Resistance
(Including resistance of cable) |
≤ 0.15 Ω |
| Insulation Resistance |
≥ 300 MΩ |
| Dielectric Withstanding Voltage |
500 Vr.m.s. |
Dimension
|

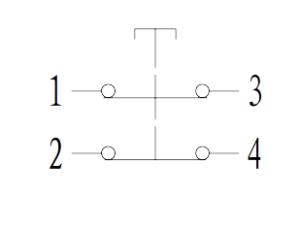

Circuit Diagram
|
 |
 |
Order Mark
| K080-19BⅡ |
Ⓙ |
| Part Number |
Quality Grade |
Technical specification: RY3.604.110JT
