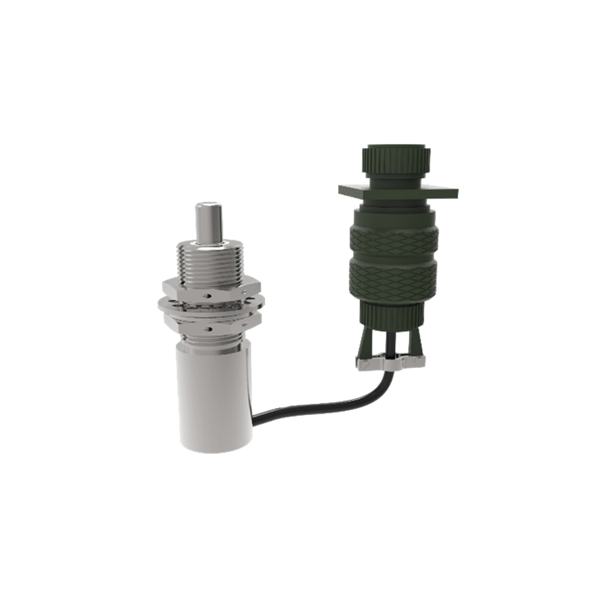

Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-55°C ~ 85°C |
| Damp Heat Test |
240 h |
| Salt Spray Test |
96 h |
| Functional Vibration |
5 Hz ~ 102 Hz |
102 Hz ~ 204 Hz |
204 Hz ~ 306 Hz |
306 Hz ~ 408 Hz |
408 Hz ~ 2000 Hz |
| 1 (m/s2)2/Hz |
-6 dB/Oct |
-6 dB/Oct |
-6 dB/Oct |
1 (m/s2)2/Hz |
| Shock |
200 m/s2 |
| Acceleration |
30 m/s2 |
| Circuitry |
DPDT |
| Weight |
≤ 385 g |
| Connection Types |
JY27467T11B35P plug
JY27656T11B35S receptacle |
| Pretravel Force |
40 N ± 13.4 N |
| Differential Travel Force |
17.84 N |
| Pretravel |
1.02 mm |
| Differential Travel |
0.51 mm |
| Overtravel |
6.35 mm |
| Cable Length |
1000 mm |
| Life |
25000 cycles |
Electrical Ratings
| Contact Rating |
1 A, 18 ~ 32 Vd.c. |
| Contact Resistance
(Including cable and resistance) |
≤ 0.33 Ω |
| Insulation Resistance |
≥ 1000 MΩ |
| Dielectric Withstanding Voltage |
≥ 1000 Vr.m.s |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark
| LAMCS-PC |
Ⓙ |
| Part Number |
Quality Grade |
Technical specification: RY3.604.105JT
