Mirco-D Pre-Wired Metal Shell Connector

Mirco-D Pre-Wired Metal Shell Connector

  • Specification: GJB2446A.
  • A more economical replacement for MIL-STD-83513 Micro-D connectors.
  • Despite options for wire listed below, customized color sequence and length are available upon request.
  • Crimped to twist pin contacts or sockets, the wire is silver-plated and PTFE insulated.
  • 9, 15, 21, 25, 31, 37, 51, 66, 74, 100, 144 positions are available for both plug and socket.



Category:

Performance Specifications

Operating Temperature -55 ℃ to +125 ℃
Vibration Frequency 10 to 2000 Hz, Acceleration 196 m/s²
Shock 735 m/s²
Rated Current 3 A
Contact Resistance ≤ 10 mΩ
Insulated Resistance ≥ 5000 MΩ
Dielectric Withstand Voltage 800 VAC
Mechanical Life ≥ 500 cycles

Materials and Finishes

Connector Shell Aluminum Alloy or Stainless Steel, 300 Series
Insulator Liquid Crystal Polymer (LCP)/Polyphenyl Sulfide(PPS)
Interfacial Seal Fluorosilicone Rubber
Pin Contact Beryllium Copper, Gold over Nickel Plating
Socket Contact Copper Alloy, Gold Over Nickel Plating
Hardware 300 Series SUS
Encapsulant Epoxy

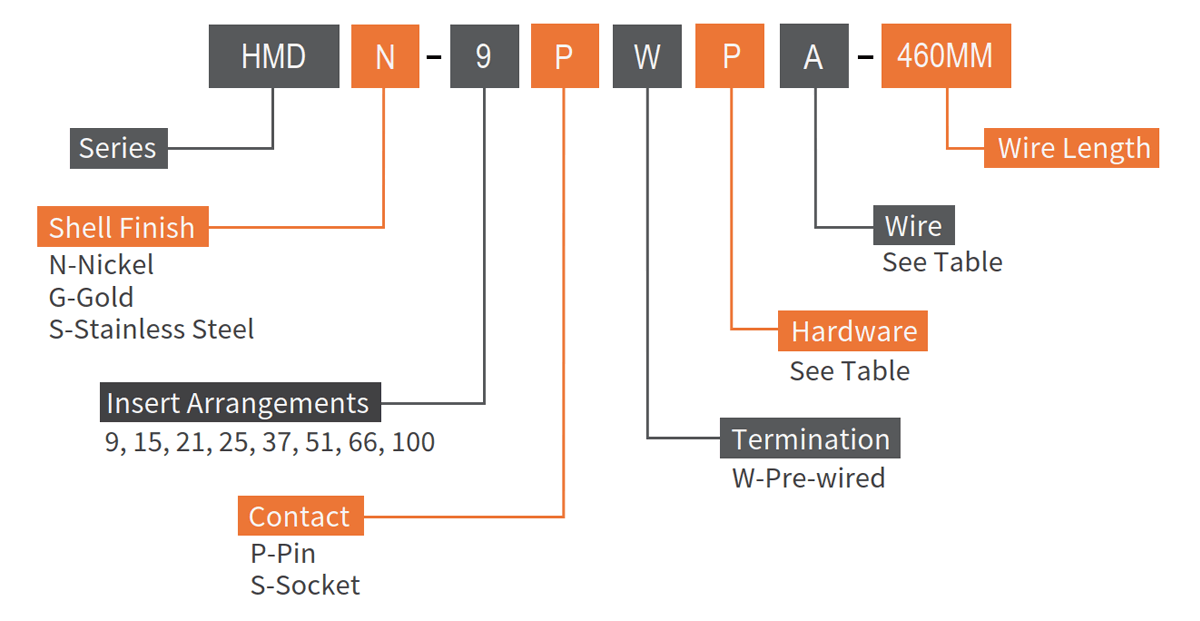

How to Order

Micro D Pre wired Metal Shell Connector how to order

Mounting Hardware
None F L P

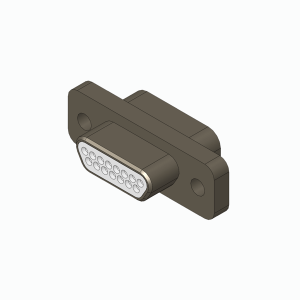

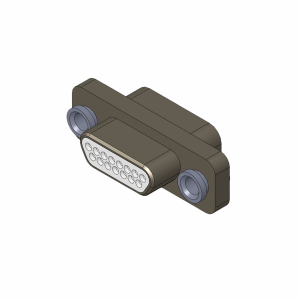

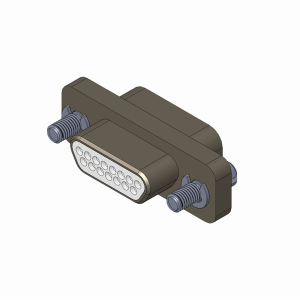

HMD Series tru hole 2 HMD Series F mounting hardware HMD Series L mounting hardware HMD Series P mounting hardware 3
Tru-hole Float Mount Slotted Screw

with Retainer

 Jackpost
Code Wire Type Color Wire Gauge
A Taped PTFE 250 VRMS White (with numbered label) #26
B Taped PTFE 250 VRMS 10 Colors Repeating #26
C Taped PTFE 250 VRMS White (with numbered label) #24
D Taped PTFE 250 VRMS 10 Colors Repeating #24
E Taped PTFE 600 VRMS White (with numbered label) #26
F Taped PTFE 600 VRMS 10 Colors Repeating #26
G Extruded PTFE 600 VRMS White (with numbered label) #26
H Extruded PTFE 600 VRMS 10 Colors Repeating #26
J Extruded PTFE 600 VRMS Color-Coded Stripes Per MIL-STD-681 #26

Dimensions

Micro D Pre wired Metal Shell Connector dimensions



Code A B C D E F G
HMD*-9P 19.6 14.3 7.6 8.3 9.9 4.7 6.8
HMD*-15P 23.5 18.2 7.6 12.3 13.8 4.7 6.8
HMD*-21P 27.4 22 7.6 16 17.6 4.7 6.8
HMD*-25P 29.8 24.5 7.6 18.6 20.2 4.7 6.8
HMD*-31P 33.6 28.3 7.6 22.4 24 4.7 6.8
HMD*-37P 37.4 32.2 7.6 26.3 27.8 4.7 6.8
HMD*-51P 36.4 30.86 8.7 25 26.6 5.8 7.9
HMD*-66P 42.9 37.3 8.7 31.4 33 5.8 7.9
HMD*-74P 38.8 33.5 9.7 27.5 29.1 6.8 9.1
HMD*100P 54.7 45.7 9.7 35 36.6 6.8 9.1
HMD*-9S 19.6 14.3 7.6 9.8 9.9 6.1 6.8
HMD*-15S 23.5 18.2 7.6 13.7 13.8 6.1 6.8
HMD*-21S 27.4 22 7.6 17.4 17.6 6.1 6.8
HMD*-25S 29.8 24.5 7.6 20 20.2 6.1 6.8
HMD*-31S 33.6 28.3 7.6 23.8 24 6.1 6.8
HMD*-37S 37.4 32.2 7.6 27.7 27.8 6.1 6.8
HMD*-51S 36.4 30.86 8.7 26.5 26.6 7.2 7.9
HMD*-66S 42.9 37.3 8.7 32.9 33 7.2 7.9
HMD*-74S 38.8 33.5 9.7 29 29.1 8.3 9.1
HMD*100S 54.7 45.7 9.7 36.6 36.65 8.2 9.1
