Specifications

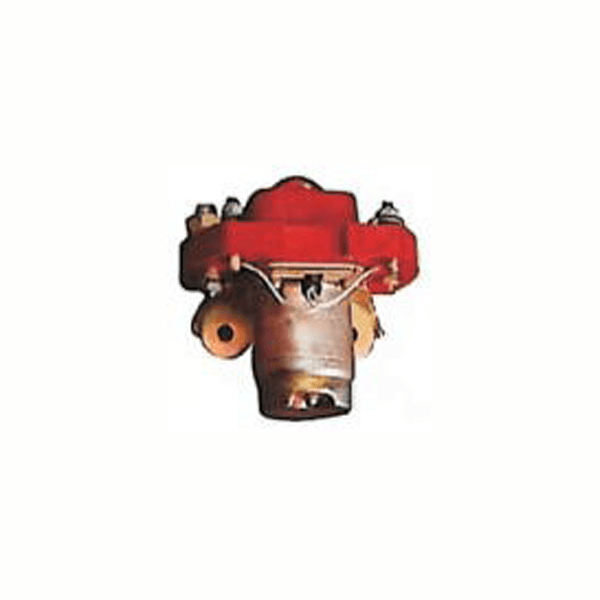

| Model | YC1H200A | ||
| Load | 27 VDC | Resistive | 200 A, 15000 cycles |
| Inductive τ(s) | 200 A, 5000 cycles | ||
| ≤ 0.05 | |||
| 220 VAC, 400Hz, cosφ≥0.5 | – | ||
| Coil | Rated Voltage | 27 VDC | |
| Maximum Coil Voltage | 30 VDC | ||
| (20 ± 5) ℃ Maximum Pick-up Current | 5 A | ||
| (20 ± 5) ℃ Maximum Holding Current | 0.5 A | ||
| Transient Voltage Suppression | – | ||
| Operate Voltage | (20 ± 5) ℃ Cold Maximum Operate Voltage | Pick-up | 18 V |
| Drop-out | 4.5 V | ||
| (20 ± 5) ℃ Thermal Maximum Operate Voltage | Pick-up | 20 V | |
| Drop-out | 6.5 V | ||
| Environmental
Conditions |
Working Temperature | -60℃ + 50℃ | |
| Elevation | 0 m ~ 25000 m | ||
| Maximum Relative Humidity | 20℃, 98% | ||
| Vibration | 10 Hz ~ 200 Hz, 3.5 G | ||
| Shock | 40 times/min ~ 100 times/min, 4 G | ||
| Linear Acceleration | 8 G | ||
| Weight | 500 g | ||
| Installation | Not direction sensitive | ||
