| Model |

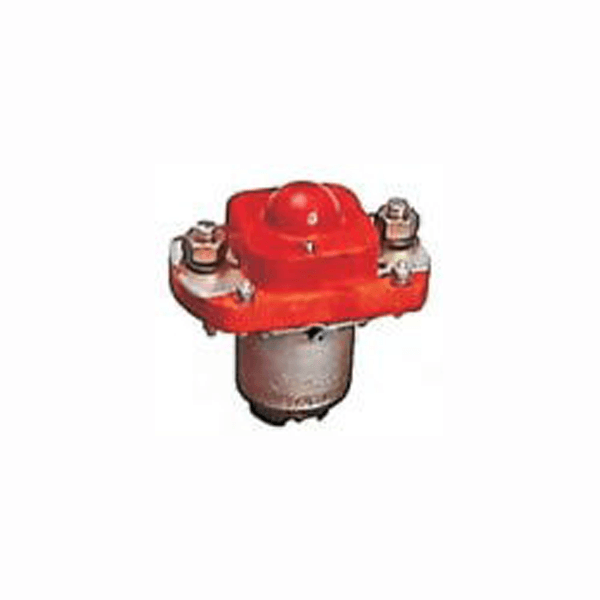

YC1H400A |
| Load |
27 VDC |
Resistive |
400 A, 15000 cycles |
| Inductive τ(s) |
400 A, 5000 cycles |
| ≤ 0.003 |
| 220 VAC, 400 Hz, cosφ≥0.5 |
– |
| Coil |
Rated Voltage |
27 VDC |
| Maximum Coil Voltage |
30 VDC |
| (20 ± 5) ℃ Maximum Pick-up Current |
5 A |
| (20 ± 5) ℃ Maximum Holding Current |
0.6 A |
| Transient Voltage Suppression |
– |
| Operate Voltage |
(20 ± 5) ℃ Cold Maximum Operate Voltage |
Pick-up |
18 V |
| Drop-out |
4. 5 V |
| (20 ± 5) ℃ Thermal Maximum Operate Voltage |
Pick-up |
20 V |
| Drop-out |
6.5 V |
| Environmental Conditions |
Working Temperature |
-60℃ + 50℃ |
| Elevation |
0 m ~ 25000 m |
| Maximum Relative Humidity |
20℃, 98% |
| Vibration |
10 Hz ~ 200 Hz, 3.5 G |
| Shock |
60 times/min ~ 100 times/min, 4 G |
| Linear Acceleration |
8 G |
| Weight |
1000 g |
| Installation |
Not direction sensitive |
