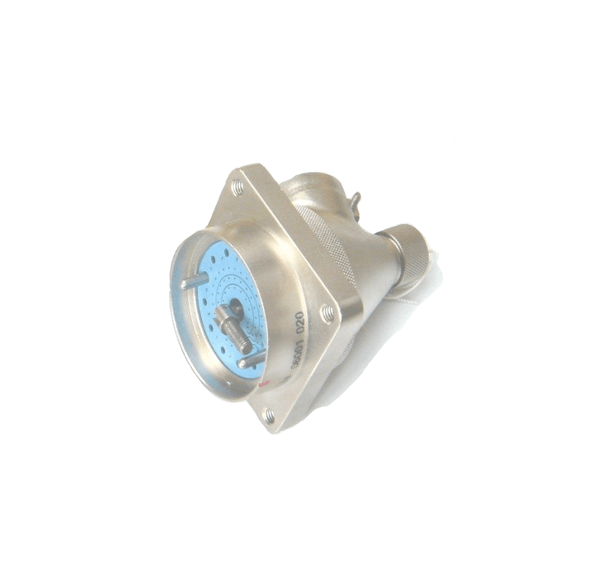

Specifications
| Shell | Aluminum Alloy |
| Shell Finishing | Sandblasting and Nickel Plating |
| Insulator | Thermoplastic Plastic |
| Contact | Gold-Plated Copper Alloy (Crimp) |
| Mechanical Life | 500 cycles (Manual), 10 cycles (Simulated Launches) |
| Mechanical Demating Force | Fastening hardware releaser in connector: 500 N ~ 600 N
Fastening hardware releaser not in connector: 55 N ~ 72 N |
| Random Vibration | 0.1 G2/Hz |
| Shock | Acceleration 1000 m/s² |
| Acceleration | 500 m/s² |
| Quality Grade | J Grade |
| Operating Temperature | -55℃ ~ +125℃ |
| Relative Humidity | At 40℃ ± 2℃: 90% ~ 98% |
| Low Pressure | 11.6 kPa |
| Salt Spray Test | 48 h |
Electrical Ratings
Contact Characteristics
|
Pin Diameter |
Φ0.77 mm | Φ2.41 mm | |
| Operating Current | 3 A |
10 A |
|
|
Contact Resistance |
Before Life | ≤15 mΩ | ≤2 mΩ |
| After Life | ≤18 mΩ |
≤3 mΩ |
|
|
Number of Contacts |
YF10-71 | 60 | 11 |
| YF10-72 | 60 |
12 |
|
Insulation Resistance
|
Normal Temperature |
High Temperature | Humid and Heat |
| ≥1600 mΩ | ≥500 mΩ |
≥20 mΩ |
Dielectric Withstand Voltage
|
Normal Temperature |
High Temperature | Humid and Heat |
| AC 1000 Vrms | AC 1000 Vrms |
AC 500 Vrms |

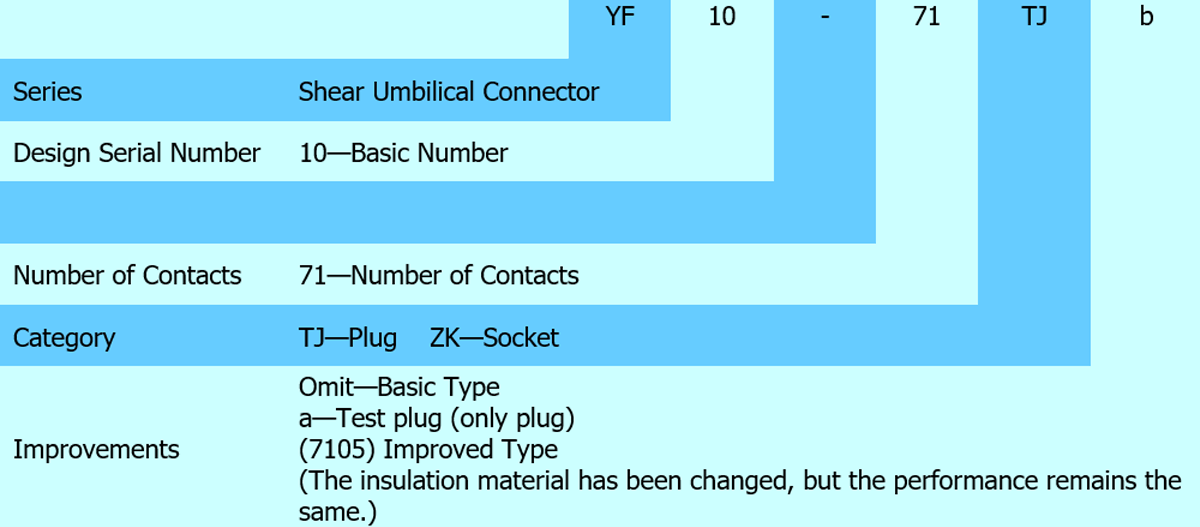

How to Order
Eg: YF10-71TJ: Indicates YF10 type basic plug with 71 pin contacts.
Model Specifications
|
Code |
Quality Grade | Feature |
| YF10-71TJ | J Grade |
71 Pin Plug Mating with sockets that have the same layout |
|
YF10-71ZK |
J Grade | 71 Pin Socket
Mating with plugs that have the same layout and teat plug |
| YF10-71TJa | J Grade |
71 Pin Test Plug Mating with sockets that have the same layout (Test) |
|
YF10-71TJ (7105) |
J Grade | 71 Pin Improved Plug
Mating with sockets that have the same layout |
| YF10-71ZK (7105) | J Grade |
71 Pin Improved Socket Mating with plugs that have the same layout and teat plug |

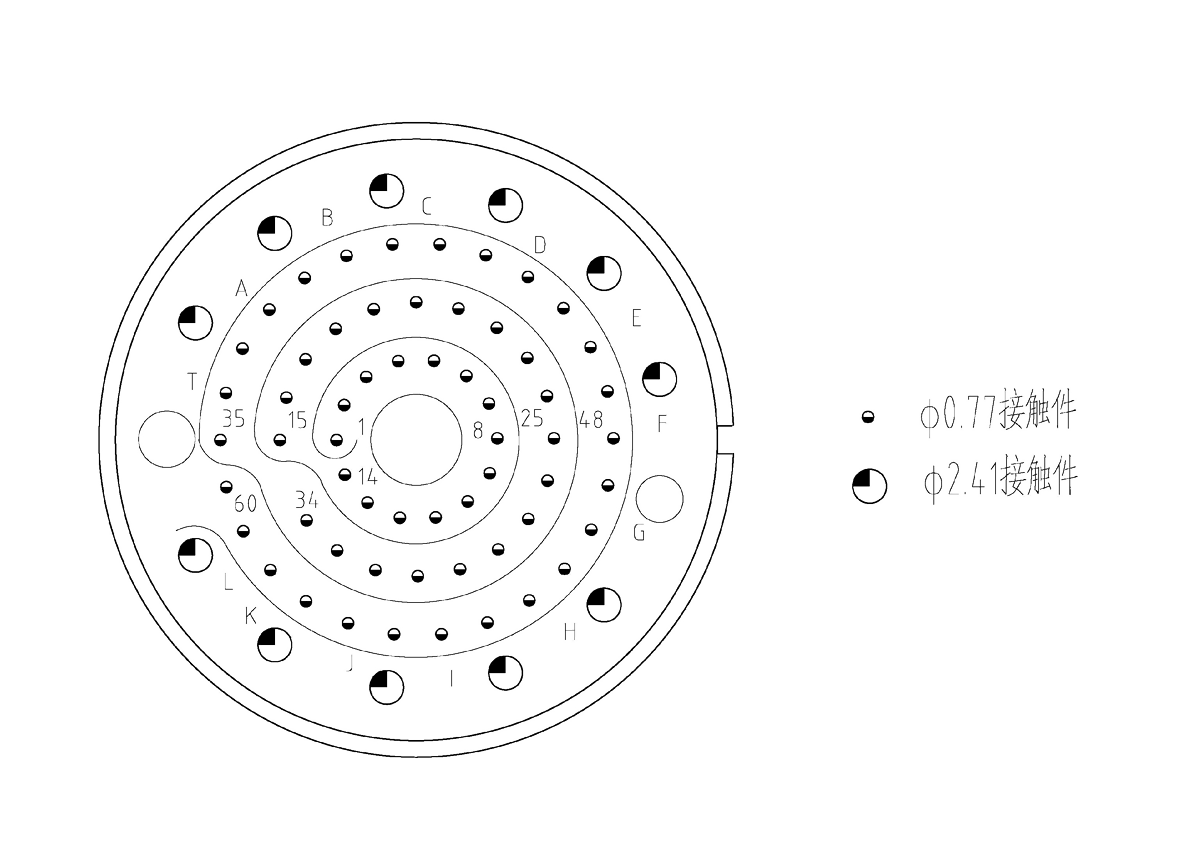

YF10 Series Contact Arrangement (Front View of Mating Surface Pin Contact)
71 Pin
 |
|
Code of Contact |
Contact Diameter | Rated Current | Conductor Section Area | Outer Diameter of Conductor Insulation |
| 22 | 0.77 mm | 3 A | 0.15 mm2 ~ 0.32 mm2 |
1.0 mm ~ 1.2 mm |
|
12 |
2.41 mm | 10 A | 2.1 mm2 ~ 3.3 mm2 |
2.8 mm ~ 3.7 mm |
Dimension

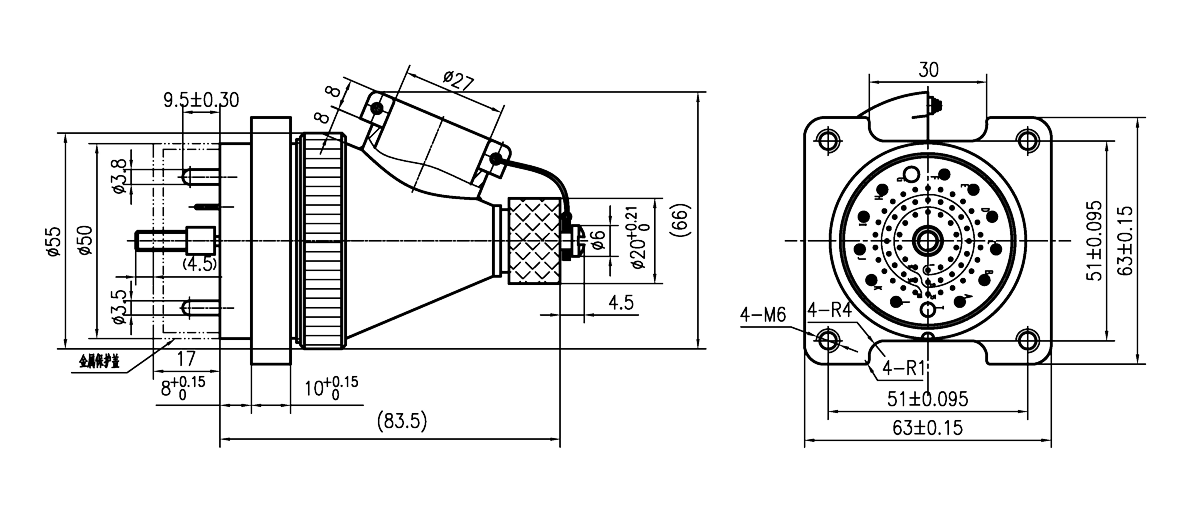

YF10 Plug
 |

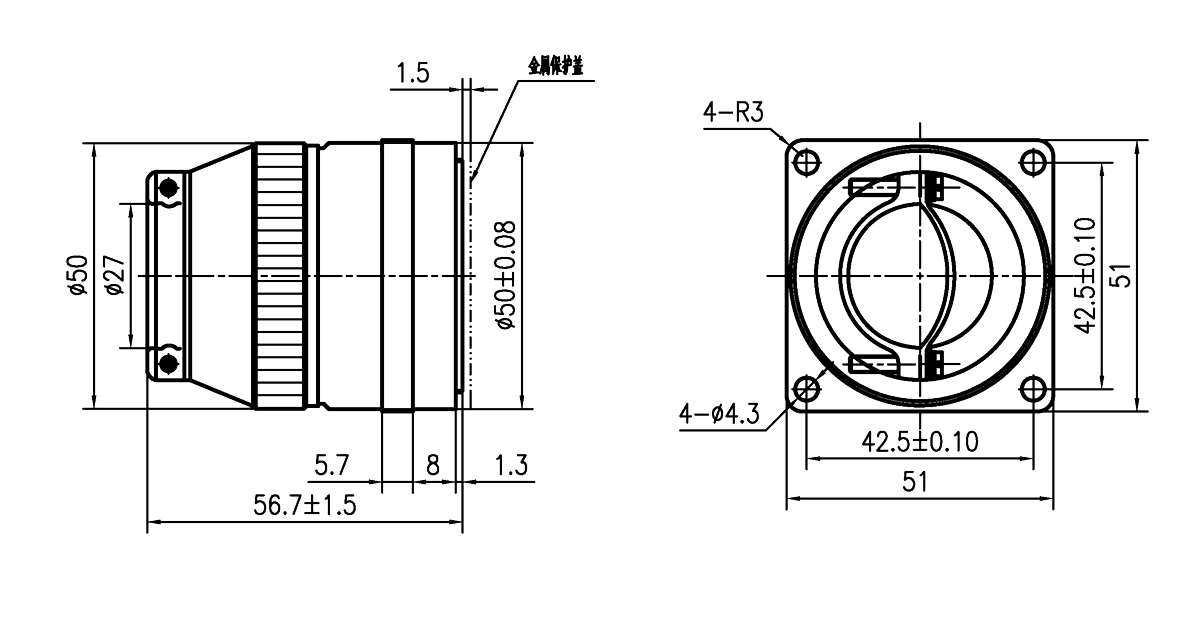

YF10 Socket
 |
