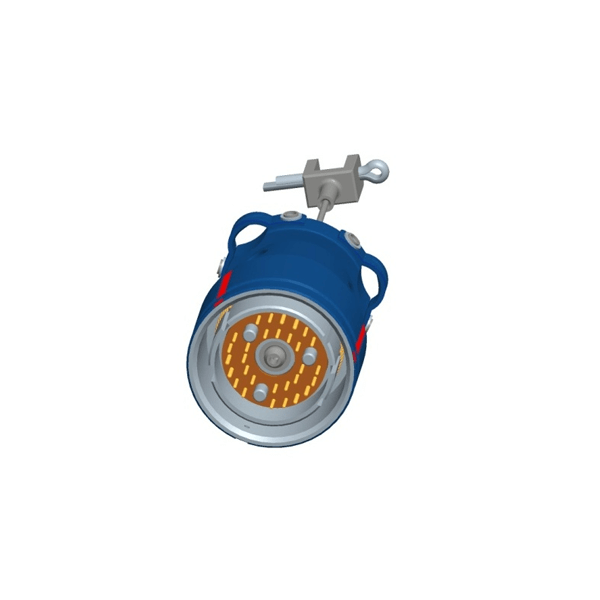

Specifications
| Shell | Aluminum Alloy |
| Shell Finishing | Electroless Nickel Plating, Covered with white/sea blue amino paint |
| Insulator | Thermoplastic Plastic |
| Contact | Gold-Plated Copper Alloy (Solder Cup) |
| Mechanical Life | 300 cycles (YF13)
500 cycles (YF13A) |
| Mechanical Demating Force | 19.6 N ~ 49 N (YF13)
40 N ~ 60 N (YF13A) 40 N ~ 80 N (YF13A 30°angled pull) |
| Sinusoidal Vibration | Frequency 10 ~ 2000 Hz, Acceleration 200 m/s² |
| Random Vibration | Power Spectral Density 0.1 G2/Hz
Total Acceleration RMS 11.6 G |
| Shock | Acceleration 686 m/s² (YF13)
Acceleration 735 m/s² (YF13A) |
| Acceleration | 200 m/s² (YF13)
250 m/s² (YF13A) |
| Operating Temperature | -55℃ ~ +100℃ (YF13)
-55℃ ~ +125℃ (YF13A) |
| Relative Humidity | At 40℃ ± 2℃: 95% ~ 98% |
| Salt Spray Test | 48 h (only YF13A) |
| Operating Pressure | 0.22 MPa ~ 6.7 Pa |
| Sealing | 0.22 MPa |
| Flameproof | Mating: Under 600℃ high temperature radiation for 30 seconds, the insulation resistance is not less than 10MΩ (YF13)
Under 600° flame jet for 1 minute, the signal socket does not short-circuit (YF13A) |
Electrical Ratings
Contact Characteristics
|
Pin Diameter |
Φ0.8 mm | Φ1 mm |
| Operating Current | 3 A |
5 A |
|
Contact Resistance |
≤8 mΩ | ≤5 mΩ |
| Number of Contacts | 24 |
6 |
Insulation Resistance
|
1 atm |
High Temperature | Humid | Low Pressure |
| ≥1000 mΩ | ≥500 mΩ | ≥20 mΩ |
≥ 100 mΩ |
Dielectric Withstand Voltage
|
1 atm |
Humid | Low Pressure |
| AC 1000 Vrms | AC 500 Vrms |
AC 200 Vrms |

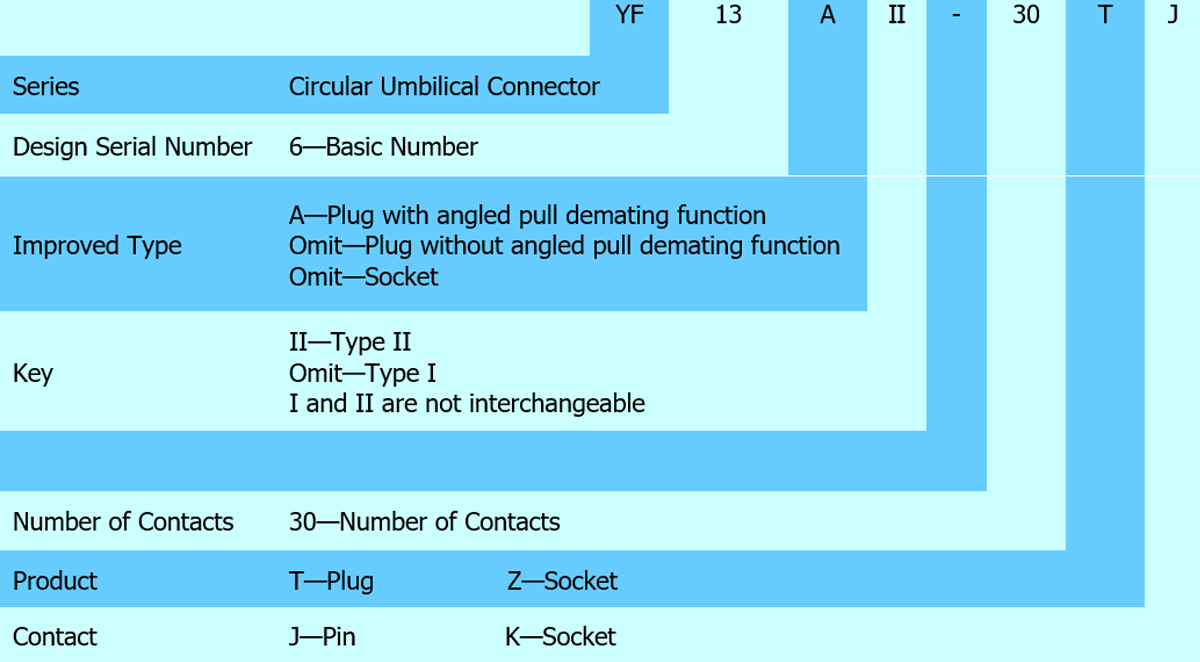

How to Order
Eg: YF13A-30T: This indicates a YF13 type 30-pin circular umbilical plug with angled demating function.
Model Specifications
|
Code |
Quality Grade | Feature |
| YF13-30T | J Grade |
30 Pin Circular Umbilical Plug Mating only with YF13-30Z |
|
YF13A-30T |
J Grade | 30 Pin Oblique Force Separable Umbilical Plug
Mating only with YF13-30Z |
| YF13B-30TJ | J Grade |
30 Pin Oblique Force Separable Umbilical Plug Mating only with YF13-30Z |
|
YF13AⅡ-30TJ |
J Grade | 30 Pin Oblique Force Separable Umbilical, Type Ⅱ Keyed Plug
Mating only with YF13Ⅱ-30ZK |
| YF13BⅡ-30TJ | J Grade |
30 Pin Oblique Force Separable Umbilical, Type Ⅱ Keyed Plug Mating only with YF13Ⅱ-30ZK |
|
YF13-30Z |
J Grade | 30 Pin Circular Umbilical Plug
Mating only with YF13-30T, YF13A-30T and YF13B-30TJ |
| YF13Ⅱ-30ZK | J Grade |
30 Pin Type II Keyed Circular Umbilical Socket Mating only with YF13AⅡ-30TJ and YF13BⅡ-30TJ |

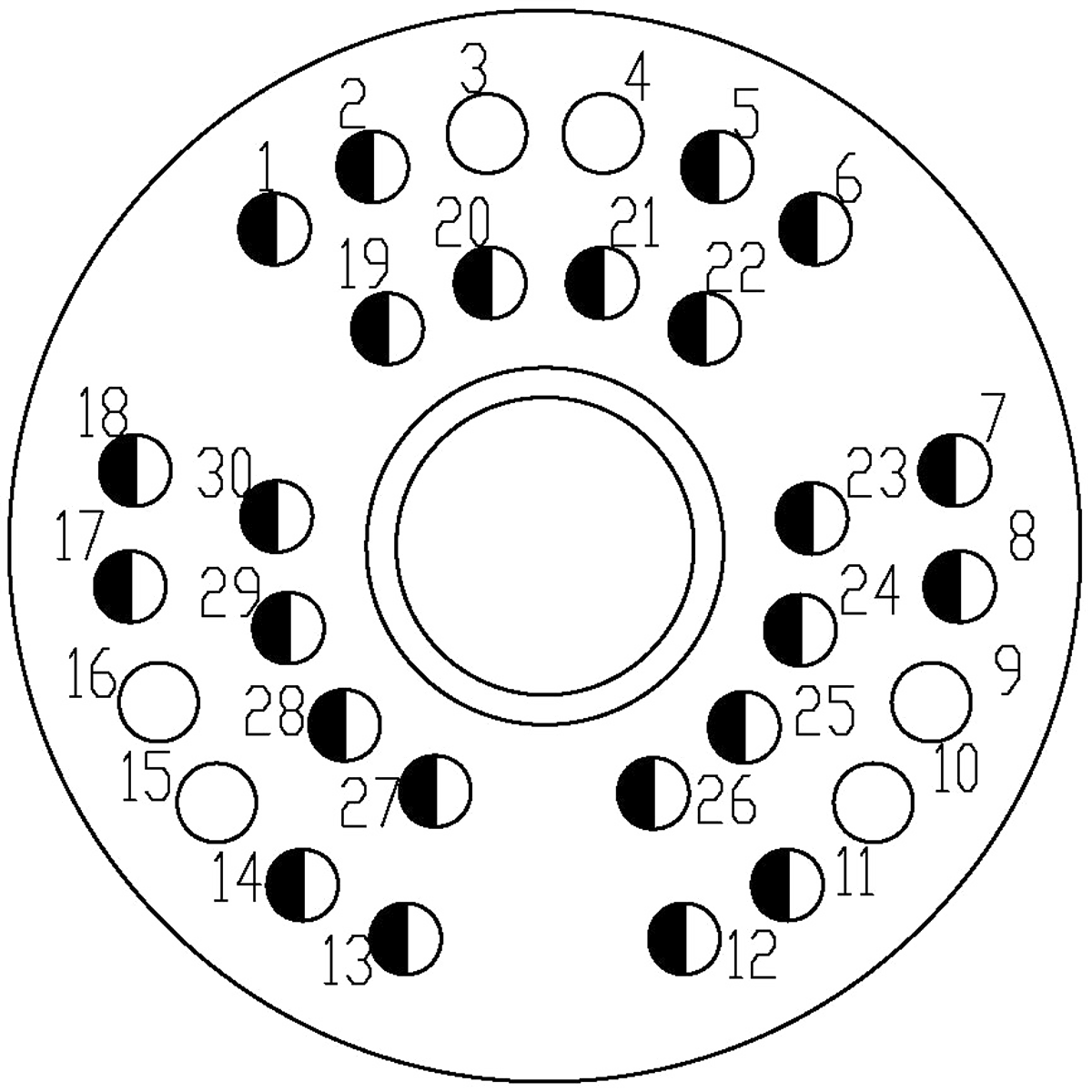

Contact Arrangement (Front View of The Socket Mating Surface)
30 Pin
 |
Solder Cup Specification
|
Contact Diameter |
Symbol | Soldering Cup Hole Diameter | Soldering Cup Hole Area | Solderable Area |
| Φ1 mm |  |
Φ1.5 mm | 1.77 mm2 |
1.24 mm2 |
|
Φ0.8 mm |
 |
Φ1 mm | 0.79 mm2 |
0.55 mm2 |
Dimension

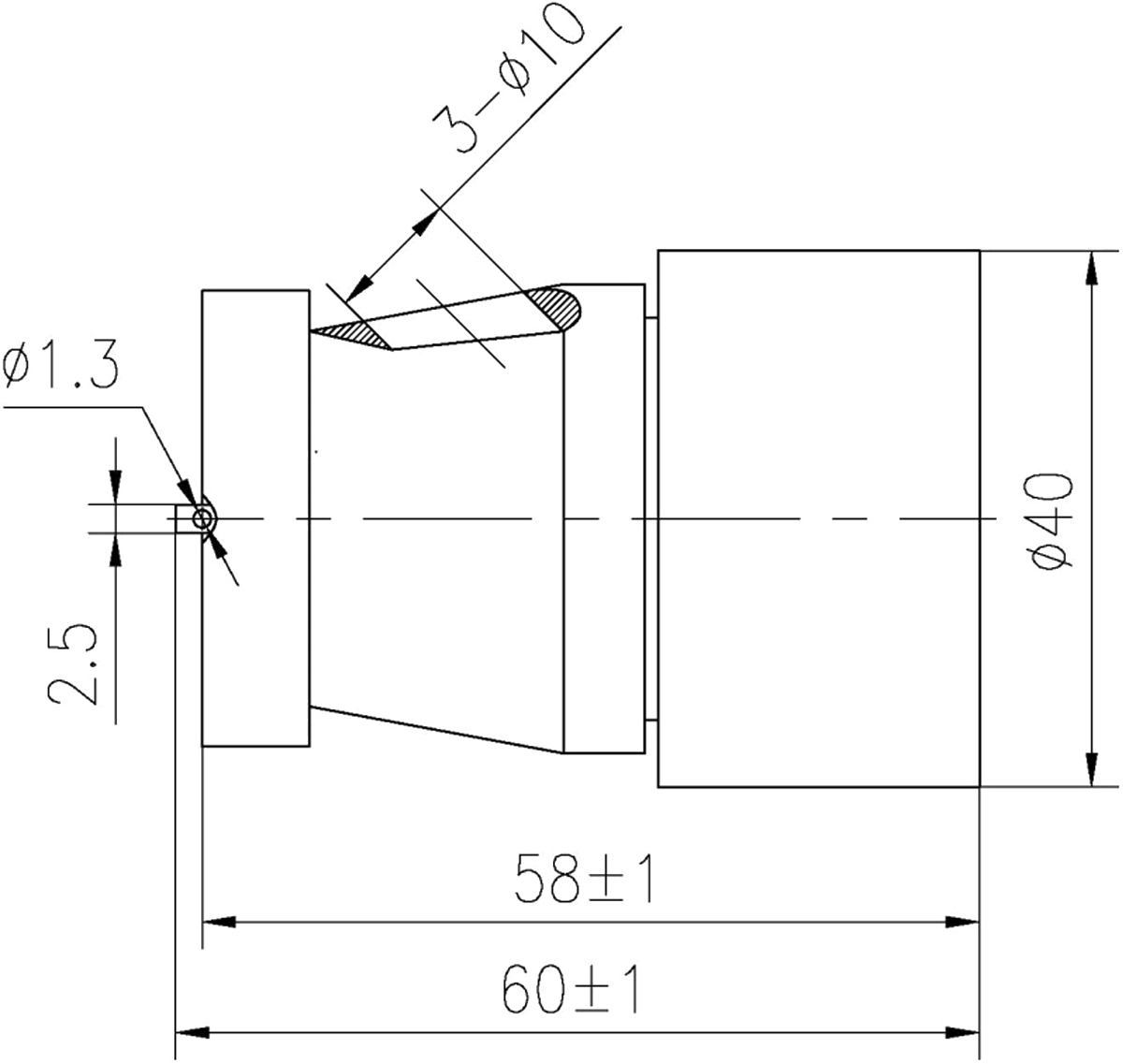

YF13-30T Circular Umbilical Plug
 |

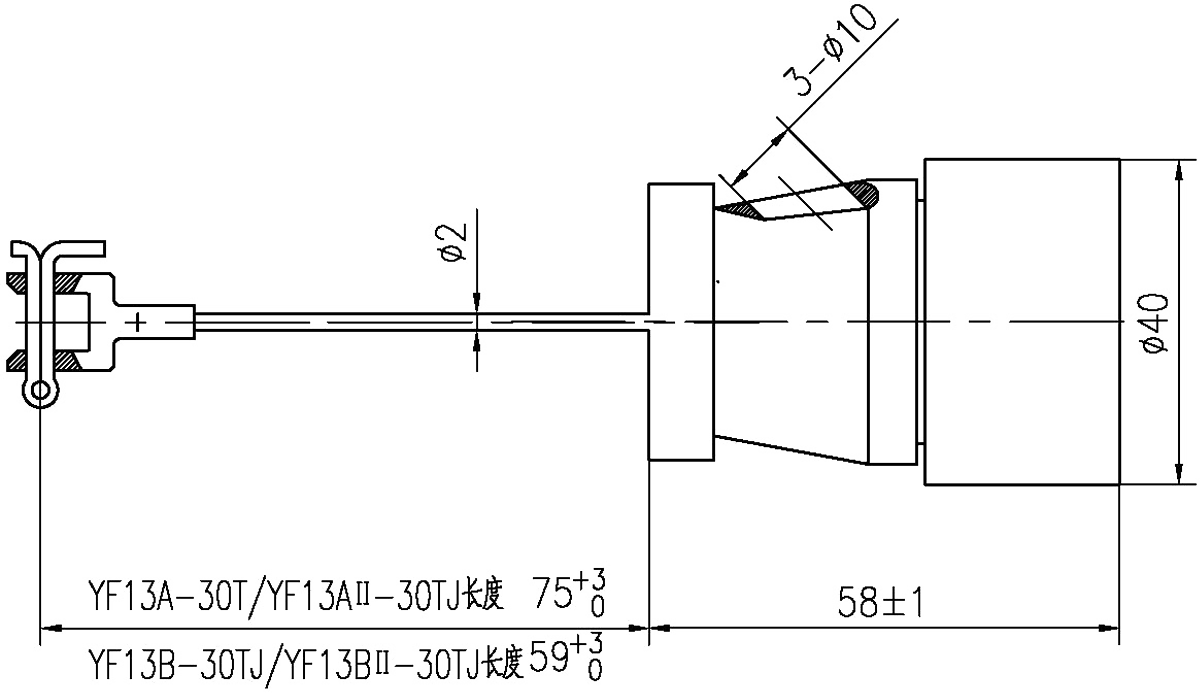

YF13A-30T, YF13B-30TJ, YF13AⅡ-30TJ, YF13BⅡ-30TJ Oblique Force Separable Umbilical Plug
 |
YF13-30Z, YF13Ⅱ-30ZK Sockets
 |

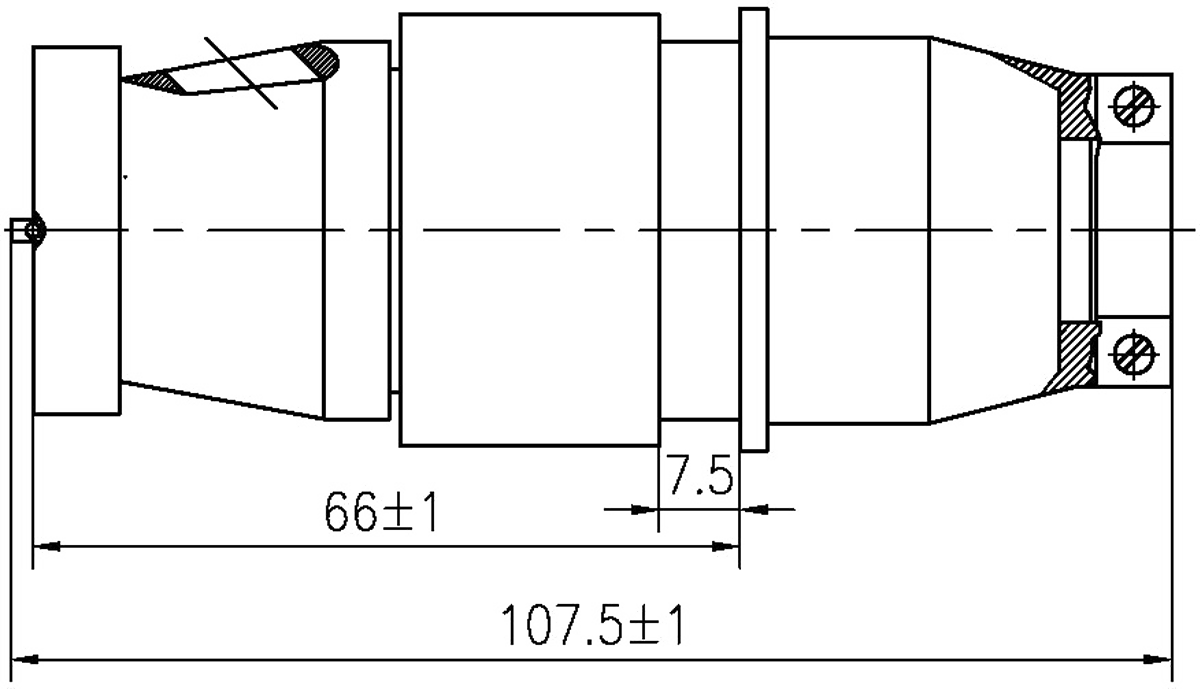

YF13-30T/Z Dimension after Mating
 |
YF13A-30T, YF13B-30TJ / YF13-30Z, YF13AⅡ-30TJ, YF13BⅡ-30TJ / YF13Ⅱ-30ZK Dimension after Mating
