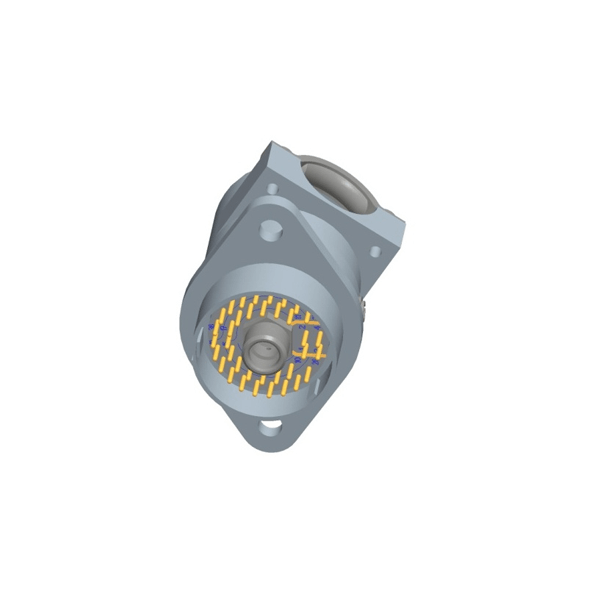

Specifications
| Shell | Aluminum Alloy |
| Shell Finishing | Electroless Nickel Plating |
| Insulator | Thermoplastic Plastic |
| Contact | Gold-Plated Copper Alloy
Solder Cup (YF17-30/52/66) Crimp (YF17-36) |
| Mechanical Life | 500 cycles (YF17-36))
300 cycles (YF17-30/52/66) |
| Electromagnetic Demating | 28 ± 3 V(DC) |
| Mechanical Demating Force | 20 N ~ 30 N (YF17-36)
30 N ~ 70 N (YF17-30/52/66) |
| Sinusoidal Vibration | Frequency 10 ~ 2000 Hz, Acceleration 100 m/s² |
| Random Vibration | Power Spectral Density 0.3 G2/Hz
Total Acceleration RMS 20G |
| Shock | Acceleration 980 m/s² |
| Acceleration | Radial Acceleration 392 m/s²
Axial Acceleration 245 m/s² |
| Operating Temperature | -55℃ ~ +125℃ (YF17-30/52/66)
-70℃ ~ +125℃ (YF17-36) |
| Relative Humidity | At 40℃ ± 2℃: 95% ~ 98% |
| Operating Pressure | 101.33 kMPa ~ 4.4 kPa (YF17-30/52/66)
Not less than 1.0×10-3Pa (YF17-36) |
| Air Tightness | 215.7 kPa (YF17-30) |
| Salt Spray Test | 48 h |
Electrical Ratings
Contact Characteristics
|
Pin Diameter |
Φ0.77 mm | Φ0.8 mm | Φ1 mm | Φ1.6 mm | |
| Operating Current | 2 A | 3 A | 5 A |
10 A |
|
|
Contact Resistance |
≤15 mΩ | ≤8 mΩ | ≤5 mΩ | ≤5 mΩ | |
|
Number of Contacts |
YF17-30 |
—— | 24 | 6 |
—— |
| YF17-36 | 36 | —— | — |
—— |
|
|
YF17-52 |
—— | 43 | — | 8 | |
| YF17-66 | —— | 58 | — |
8 |
|
Insulation Resistance
|
1 atm |
High Temperature | Humid |
| ≥1000 mΩ | ≥500 mΩ |
≥50 mΩ |
Dielectric Withstand Voltage
|
1 atm |
Low Pressure | Humid |
| AC 1000 Vrms | AC 150 Vrms |
AC 500 Vrms |

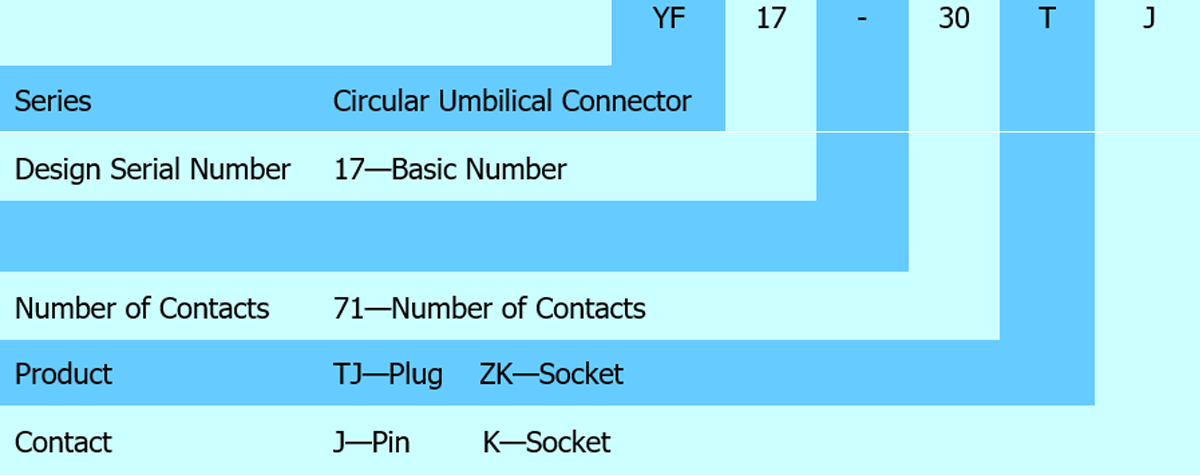

How to Order
Eg: YF17-36TK: Indicates a YF17 type 36 pin circular umbilical plug.
Model Specifications
|
Code |
Quality Grade | Feature |
| YF17-30TJ | J Grade |
30 Pin Circular Umbilical Plug Mating with YF17-30ZK |
|
YF17-30ZK |
J Grade | 30 Pin Circular Umbilical Socket
Mating with YF17-30TJ |
| YF17-52TJ | J Grade |
52 Pin Circular Umbilical Plug Mating with YF17-52ZK |
|
YF17-52ZK |
J Grade | 52 Pin Circular Umbilical Socket
Mating with YF17-52TJ |
| YF17-66TJ | J Grade |
66 Pin Circular Umbilical Plug Mating with YF17-66ZK |
|
YF17-66ZK |
J Grade | 66 Pin Circular Umbilical Socket
Mating with YF17-66TJ |
| YF17-36TK | J Grade |
36 Pin Circular Umbilical Plug Mating with YF17-36ZJ |
|
YF17-36ZJ |
J Grade |
36 Pin Circular Umbilical Socket Mating with YF17-36TK |
Contact Arrangement (Front View of The Socket Mating Surface)
30 Pin
 |
Solder Cup Specification
|
Contact Diameter |
Symbol | Soldering Cup Hole Diameter | Soldering Cup Hole Area | Solderable Area |
| Φ1 mm |  |
Φ1.5 mm | 1.77 mm2 |
1.24 mm2 |
|
Φ0.8 mm |
 |
Φ1 mm | 0.79 mm2 |
0.55 mm2 |
36 Pin
 |
Contact Crimping
|
Contact Diameter |
Symbol | Soldering Cup Hole Diameter | Soldering Cup Hole Area | Solderable Area |
| Φ0.77 mm |  |
— | — |
— |
52 Pin
 |
Solder Cup Specification
|
Contact Diameter |
Symbol | Soldering Cup Hole Diameter | Soldering Cup Hole Area |
Solderable Area |
|
Ethernet Contact |
 |
– | – | – |
| Φ1.6 mm |  |
Φ1.5 mm | 1.77 mm2 |
1.24 mm2 |
|
Φ0.8 mm |
 |
Φ1 mm | 0.79 mm2 |
0.55 mm2 |
68 Pin
 |
|
Contact Diameter |
Symbol | Soldering Cup Hole Diameter | Soldering Cup Hole Area | Solderable Area |
| Φ1.6 mm |  |
Φ1.5 mm | 1.77 mm2 |
1.24 mm2 |
|
Φ0.8 mm |
 |
Φ1 mm | 0.79 mm2 |
0.55 mm2 |
Dimension
YF17-30TJ Circular Umbilical Plug
 |
YF17-30ZK Circular Umbilical Socket
 |

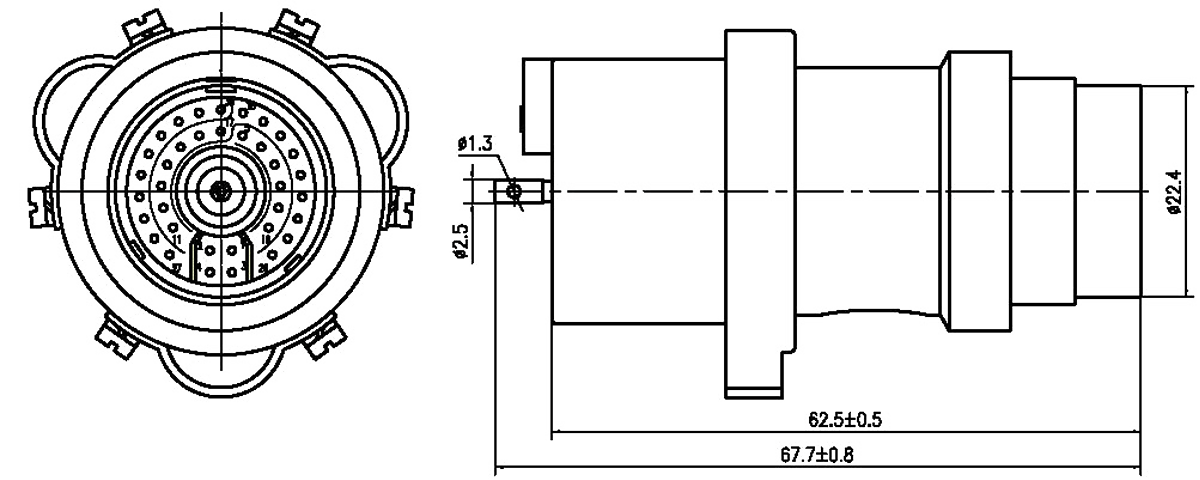

YF17-36TK Circular Umbilical Plug
 |

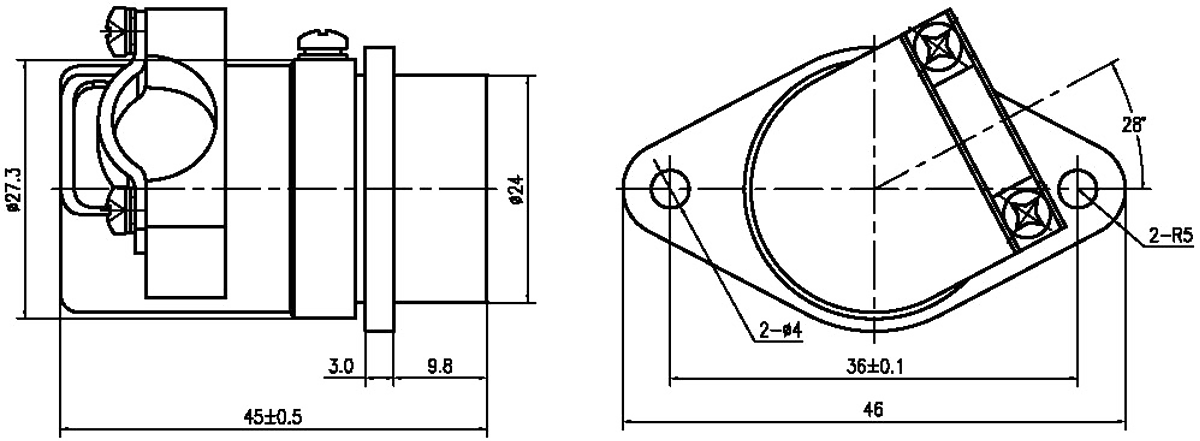

YF17-36ZJ Circular Umbilical Socket
 |

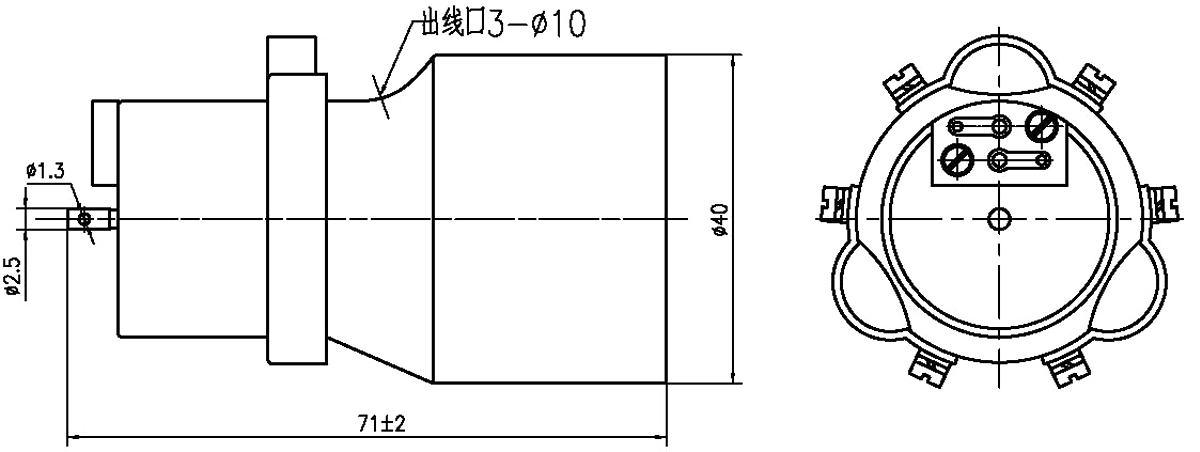

YF17-52TJ Circular Umbilical Plug
 |

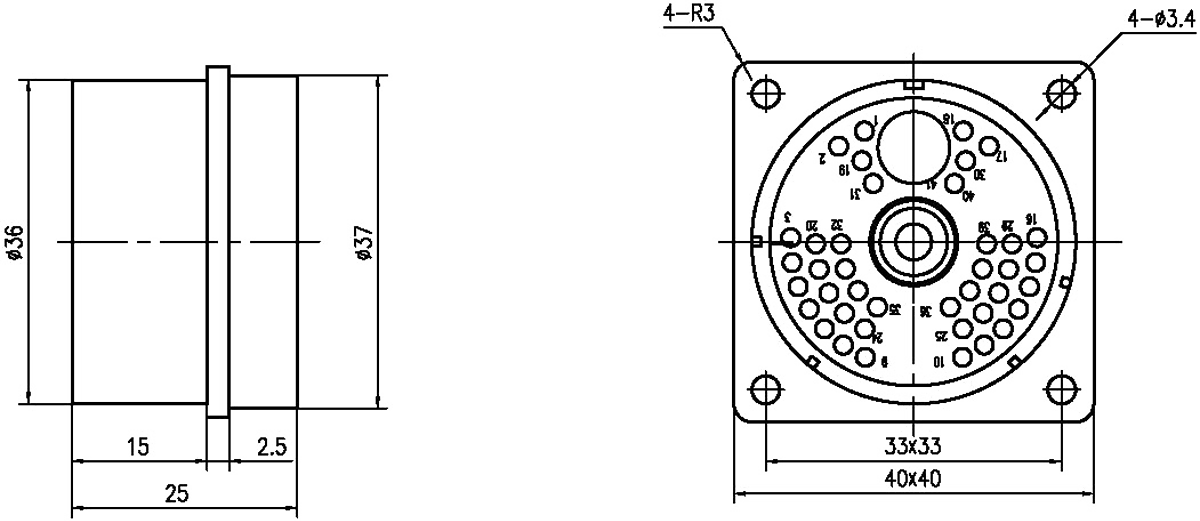

YF17-52ZK Circular Umbilical Socket
 |

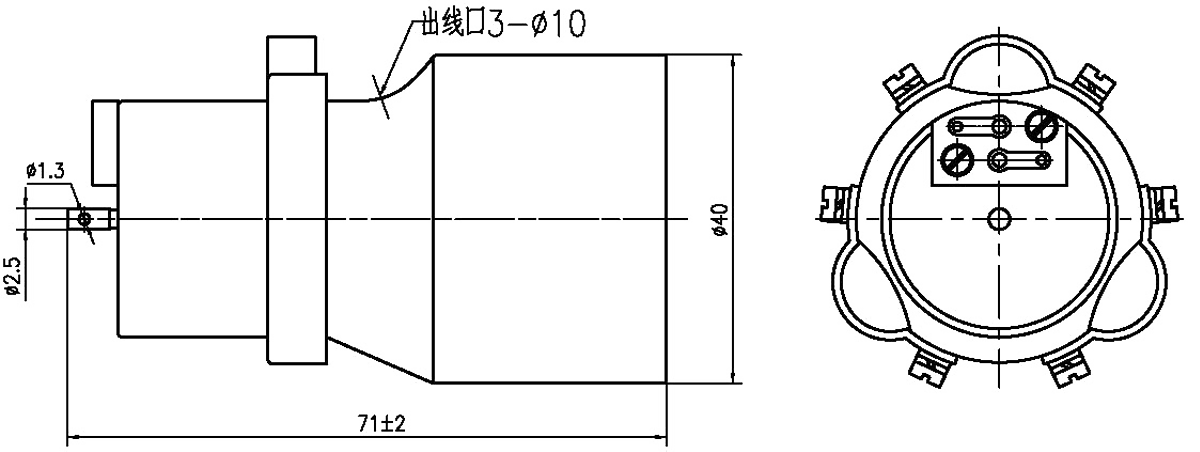

YF17-66TJ Circular Umbilical Plug
 |

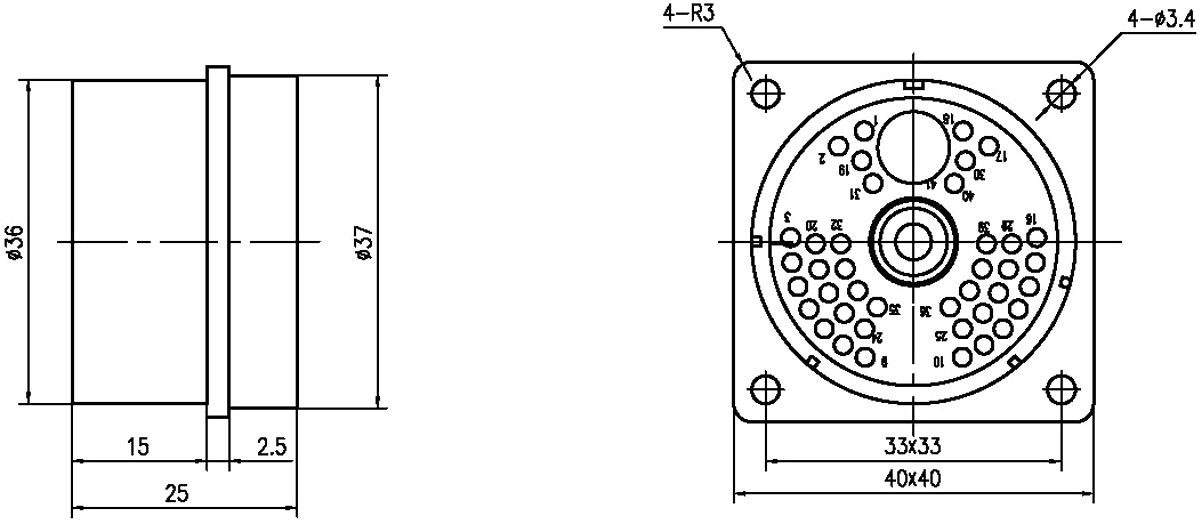

YF17-66ZK Circular Umbilical Socket
 |

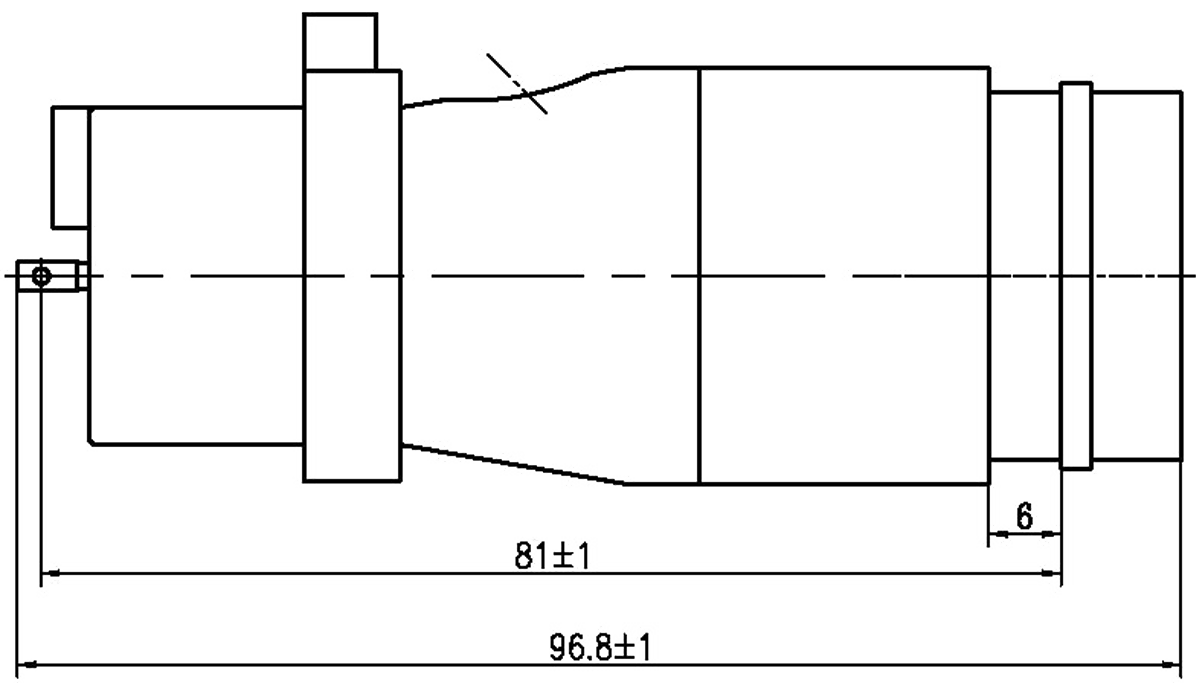

YF17-30TJ/ZK Dimension after Mating
 |

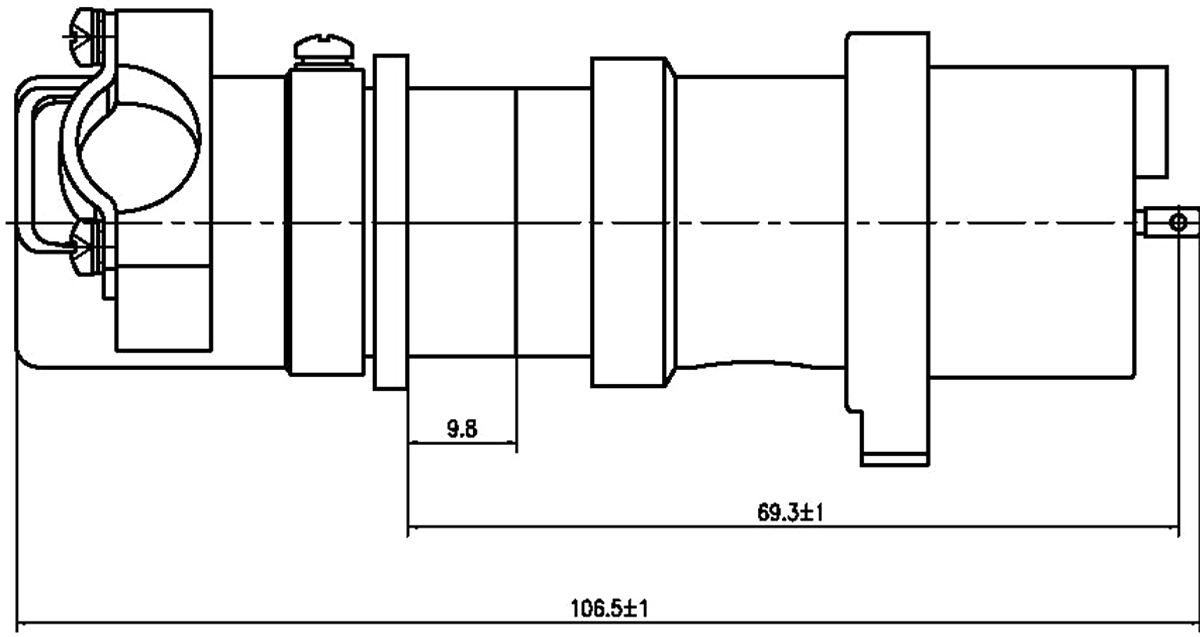

YF17-36TK/ZJ Dimension after Mating
 |

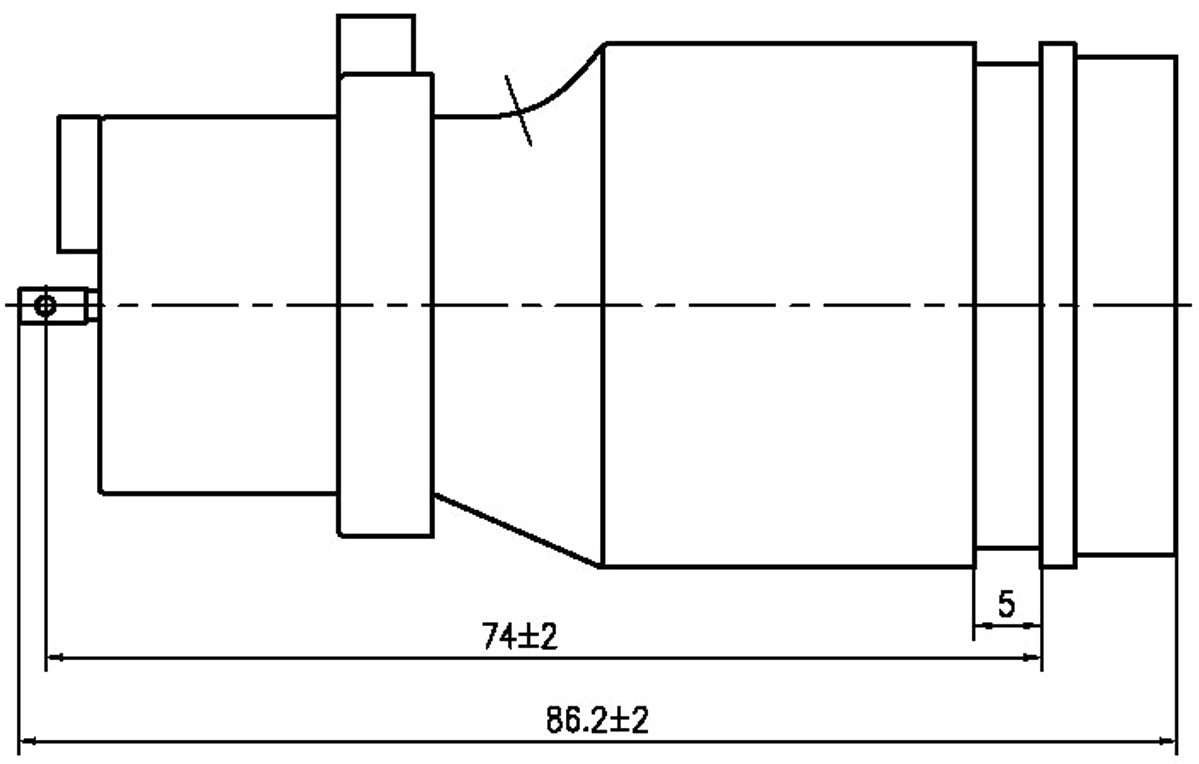

YF17-52/66TJ/ZK Dimension after Mating
 |
