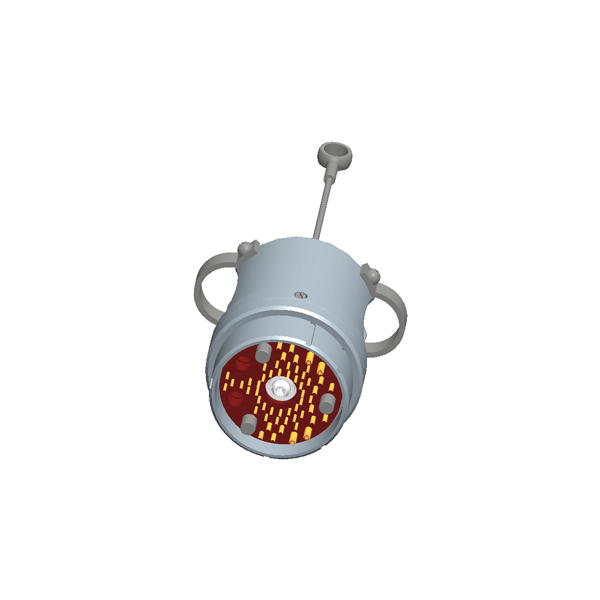

Specifications
| Shell | Stainless Steel |
| Shell Finishing | Chemical Polishing |
| Insulator | Thermoplastic Plastic |
| Sealing Ring | Silicone Rubber, Nitrile Rubber |
| Contact | Gold-Plated Copper Alloy (Crimp) |
| Mechanical Life | 500 cycles |
| Electromagnetic Demating | 28 ± 4 V(DC) (YF30-65 Motor Driven Plug) |
| Electromagnetic Coil | Resistance: 6.5 Ω ± 0.3 Ω
YF30-65TJD Plug: YF30-65TJDa Plug: Motor demating is polarity sensitive. |
| Mechanical Demating Force | 60 N ~ 150 N (YF30-12)
30 N ~ 90 N (YF30-65 Motor Driven Plug) 100 N ~ 200 N (YF30-57/65) |
| Sinusoidal Vibration | Frequency 10 ~ 2000 Hz, Acceleration 147 m/s² |
| Random Vibration | Power Spectral Density 0.6 G2/Hz (YF30-12/57)
Power Spectral Density 0.4 G2/Hz (YF30-65) |
| Shock | Acceleration 980 m/s² (YF30-12/57)
Acceleration 735 m/s² (YF30-65) |
| Acceleration | Acceleration 250 m/s² |
| Operating Temperature | -65℃ ~ +200℃ |
| Relative Humidity | At +40℃ ± 2℃: 95% ~ 98% |
| Demate Under High-temperature | +400℃, After 5 minutes, plug and socket demating |
| Flameproof | +600℃, Maintain 1500 s (only socket) |
| Salt Spray Test | 96 h |
Electrical Ratings
Contact Characteristics
|
Contact Specifications |
Contact Resistance | Rated Current | Characteristic Impedance |
| Φ1 mm | ≤15 mΩ | 5 A |
— |
|
Φ1.6 mm |
≤8 mΩ | 10 A | — |
| Φ2.4 mm | ≤6 mΩ | 20 A |
— |
|
8#Dual Coaxial |
≤55 mΩ | — | 75 Ω |
| 12#Coaxial | ≤66 mΩ | — |
50 Ω |
Insulation Resistance
|
Normal Temperature |
Rain Test | High Temperature | Humid and Heat |
| 5000 mΩ | 100 mΩ | 500 mΩ |
100 mΩ |
Dielectric Withstand Voltage
|
Normal Temperature |
High Temperature | Low Pressure | Humid and Heat |
| AC 1000 Vrms | AC 500 Vrms | AC 200 Vrms |
AC 500 Vrms |

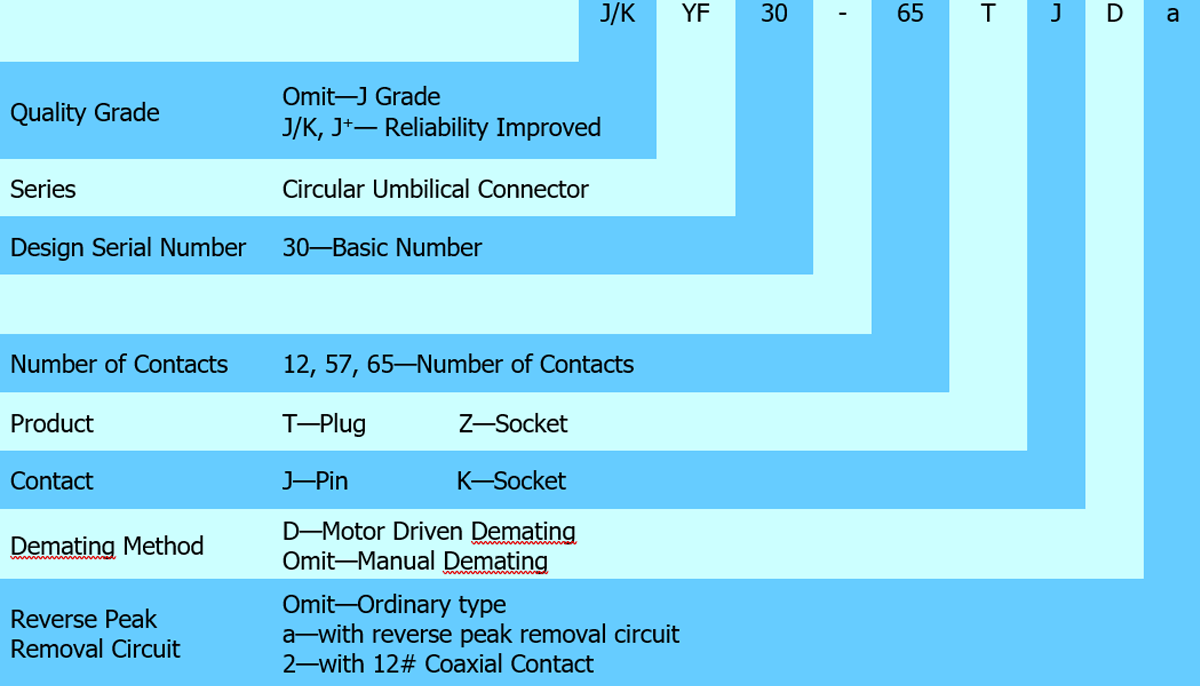

How to Order
Eg: YF30-65TJDa: This indicates a 65 pin circular umbilical pin plug with anti-backlash circuitry, design serial number 30.
Connector Specifications
|
Quality Grade |
Plug Type | Feature | Part Number of Socket | Feature |
| J Grade | YF30-12TJ | Manual Plug
Single-outlet cable cover |
YF30-12ZK |
Double-layer Socket |
|
YF30-57TJ |
Manual Plug
Dual-outlet cable cover |
YF30-57ZK | Double-layer Socket | |
| YF30-65TJ2
YF30-65TJD YF30-65TJDa |
Manual Plug
Three-outlet cable cover Motor driven plug without reverse peak removal circuit Three-outlet cable cover Motor driven plug with reverse peak removal circuit Three-outlet cable cover |
YF30-65ZK2 |
Double-layer Socket |
|
|
Reliability Improved |
J/K YF30-65TJ2
J/K YF30-65TJD J/K YF30-65TJDa |
Manual Plug
Three-outlet cable cover Motor driven plug without reverse peak removal circuit Three-outlet cable cover Motor driven plug with reverse peak removal circuit Three-outlet cable cover |
J/K YF30-65ZK2 |
Double-layer Socket |
Crimp Contact Accessory
M22520/1-01JP17/YF30-20J
|
Code |
Contact Name | Contact Code | Adaptive Wire | Crimping Tools | Positioner |
| YF30-57TJ | 8＃Dual Coaxial Pins | M39029/90-529 | M17/176-00002 | Inner：M22520/2-01
Middle, Outside：M22520/5-01 |
Inner：K709 Middle：Y631 B Outside：Y631 A |
|
YF30-57ZK |
8＃Dual Coaxial Sockets | M39029/91-530 | |||
| YF30-65TJ2
YF30-65TJD YF30-65TJDa |
12#Coaxial Pins |
M39029/102-558 |
SFF-50-1.5-1 |
Inner：MH992
Outside：M22520/5-01 |
Inner：K1360 Outside：M2250/5-03 (A) or M22520/5-35 (B) |
| YF30-65ZK2 | 12#Coaxial Socket | M39029/103-559 | |||
|
YF30-57TJ |
12#Pin | YF30-00-31 | 12#, 14# | M22520/1-01 | JP15/YF30-12J |
| YF30-57TJ
YF30-65TJ2 YF30-65TJD YF30-65TJDa |
16#Pin | YF30-00-30 | 16#, 18#, 20# |
JP16/YF30-16J |
|
|
YF30-12TJ YF30-57TJ YF30-65TJ2 YF30-65TJD YF30-65TJDa |
20#Pin | YF30-00-29 |
20#, 22#, 24# |
||
|
YF30-57ZK |
12#Socket | YF30-00-25 | 12#, 14# | JP18/YF30-12K | |
| YF30-57ZK
YF30-65ZK2 |
16#Socket | YF30-00-24 |
16#, 18#, 20# |
JP19/YF30-16K |
|
|
YF30-12ZK YF30-57ZK YF30-65ZK2 |
20#Socket | YF30-00-23 | 20#, 22#, 24# |
JP20/YF30-20K |
Note: The contact configuration for the Reliability Improved is the same as that for the J Grade, alternative contact must be ordered separately.
Other Accessories
|
Name |
Accessory Model | Adaptive Product |
| Fastening Tool | JP1/YF30 |
YF30-57TJ, YF30-57ZK, YF30-65TJ2, YF30-65TJD, YF30-65TJDa, YF30-65ZK2 |
|
Fastening Tool |
JP2/YF30-12TJ | YF30-12TJ |
| Fastening Tool | JP3/YF30-12ZK |
YF30-12ZK |
|
Mating Tool |
JP21/YF30-65 |
YF30-65TJ2, YF30-65TJD, YF30-65TJDa |
Note: No other accessories are included with the product. Please purchase them separately according to your needs.
Contact Arrangement (Front View of Plug Mating Surface)
YF30-12 Contact Arrangement
|
YF30-57 Contact Arrangement
|
YF30-65 Contact Arrangement
|
Dimension
Manual Plug (YF30-12TJ)
|
|
Double-layer Socket (YF30-12ZK)
 |

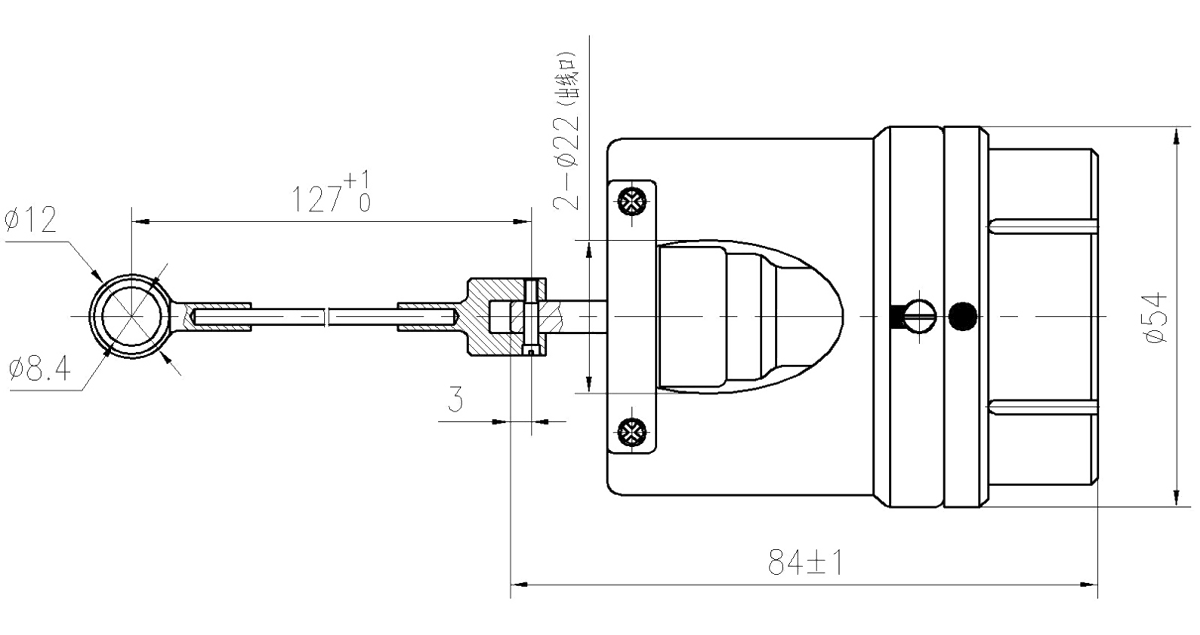

Manual Plug (YF30-57TJ)
 |

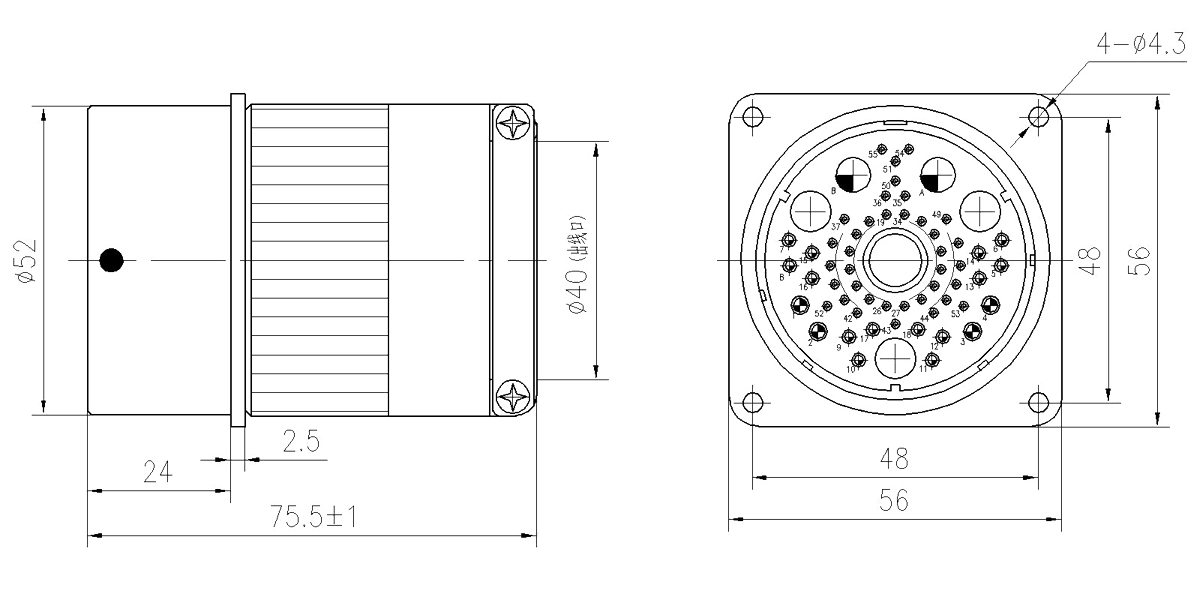

Double-layer Socket (YF30-57ZK)
 |

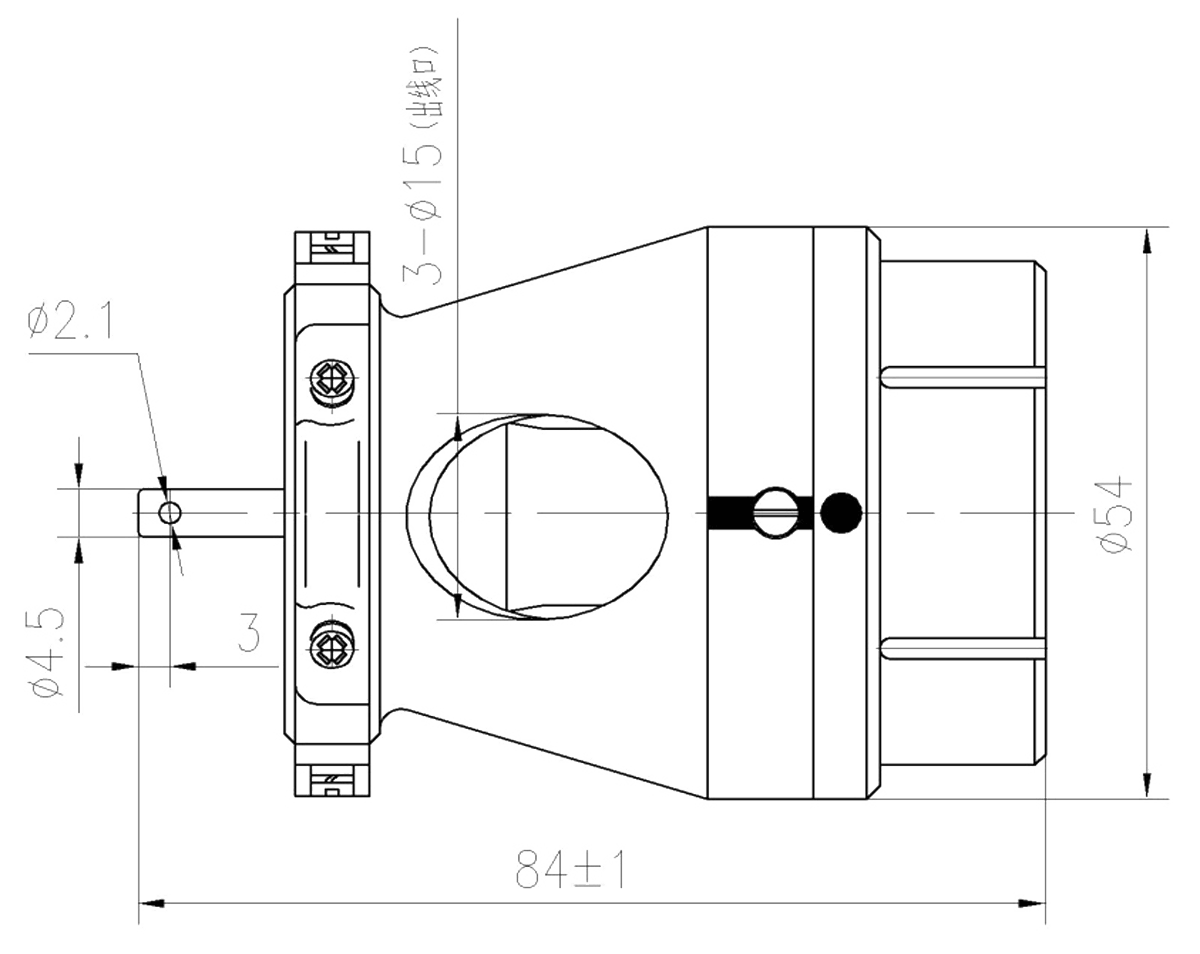

Manual Plug (YF30-65TJ2)
 |
Motor Driven Plug without Reverse Peak Removal Circuit (YF30-65TJD)
 |

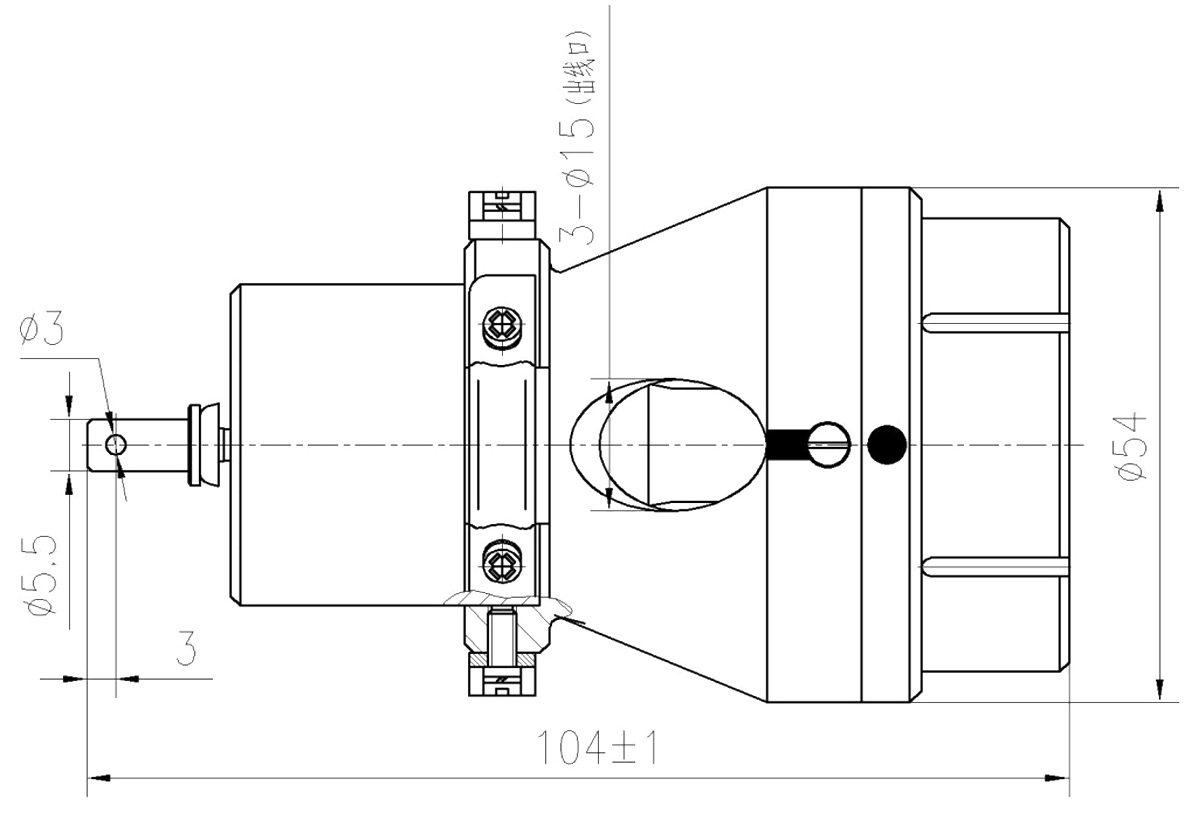

Motor Driven with Reverse Peak Removal Circuit (YF30-65TJDa)
 |

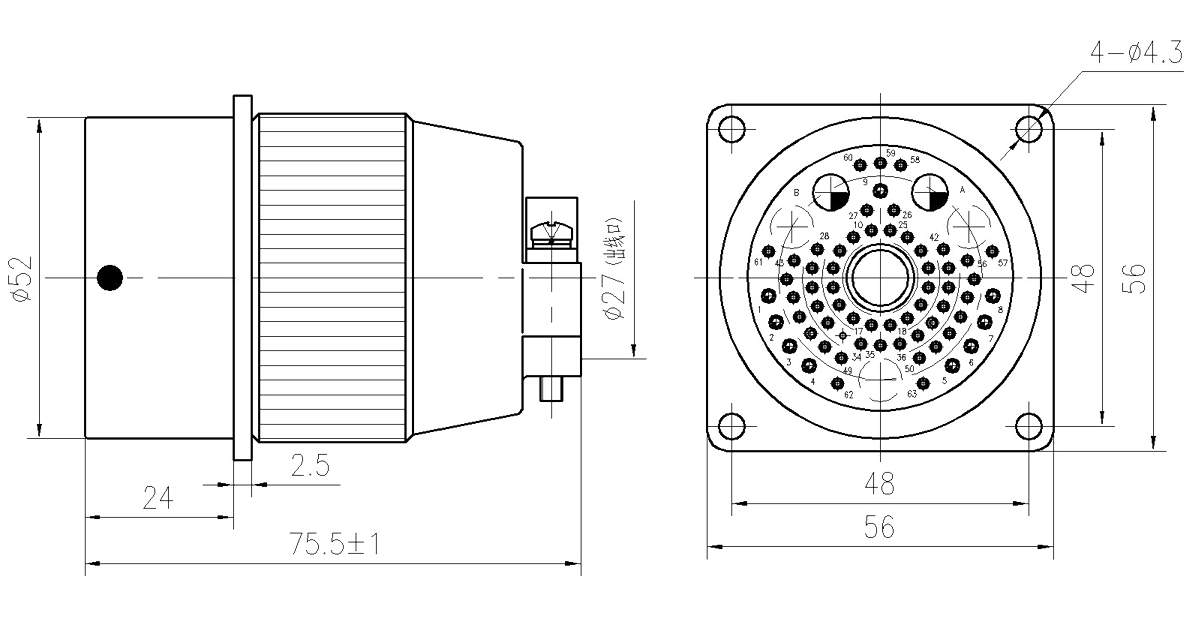

Double-Layer Socket (YF30-65ZK2)
 |

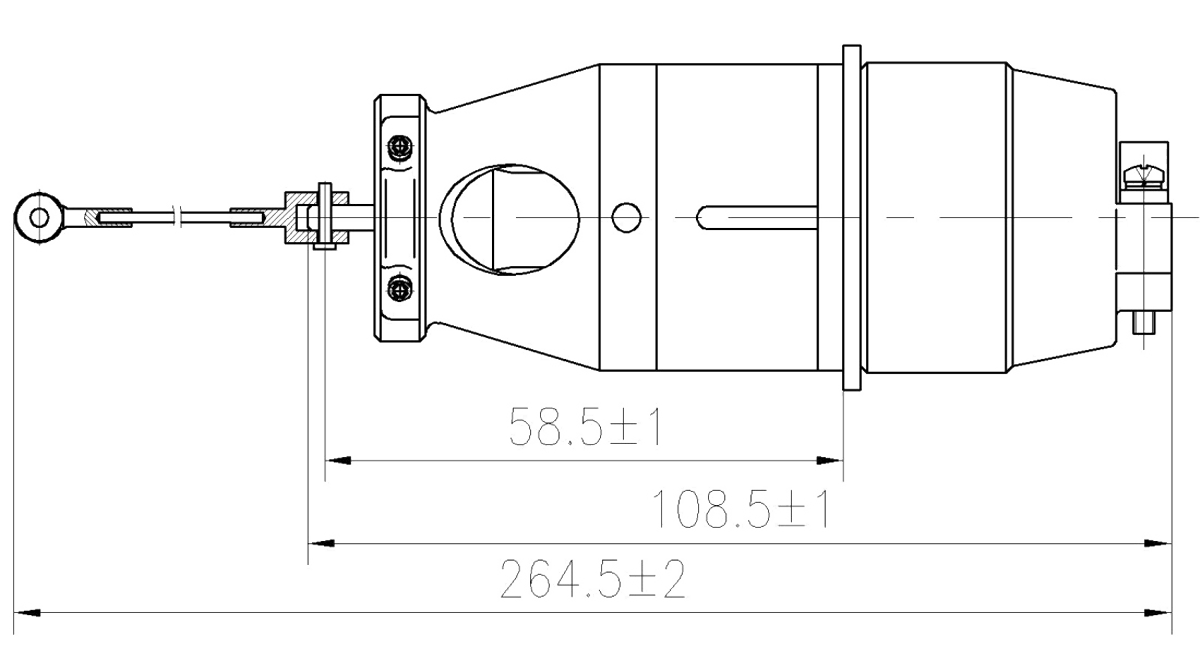

Dimension after Mating (YF30-12TJ/ZK)
 |

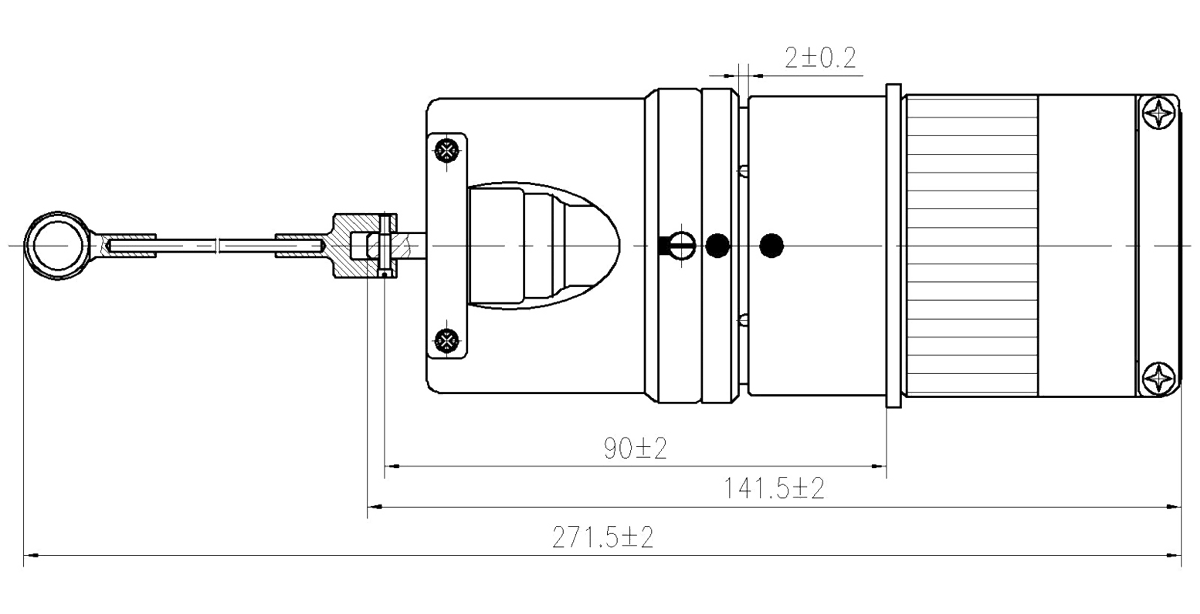

Dimension after Mating (YF30-57TJ/ZK)
 |

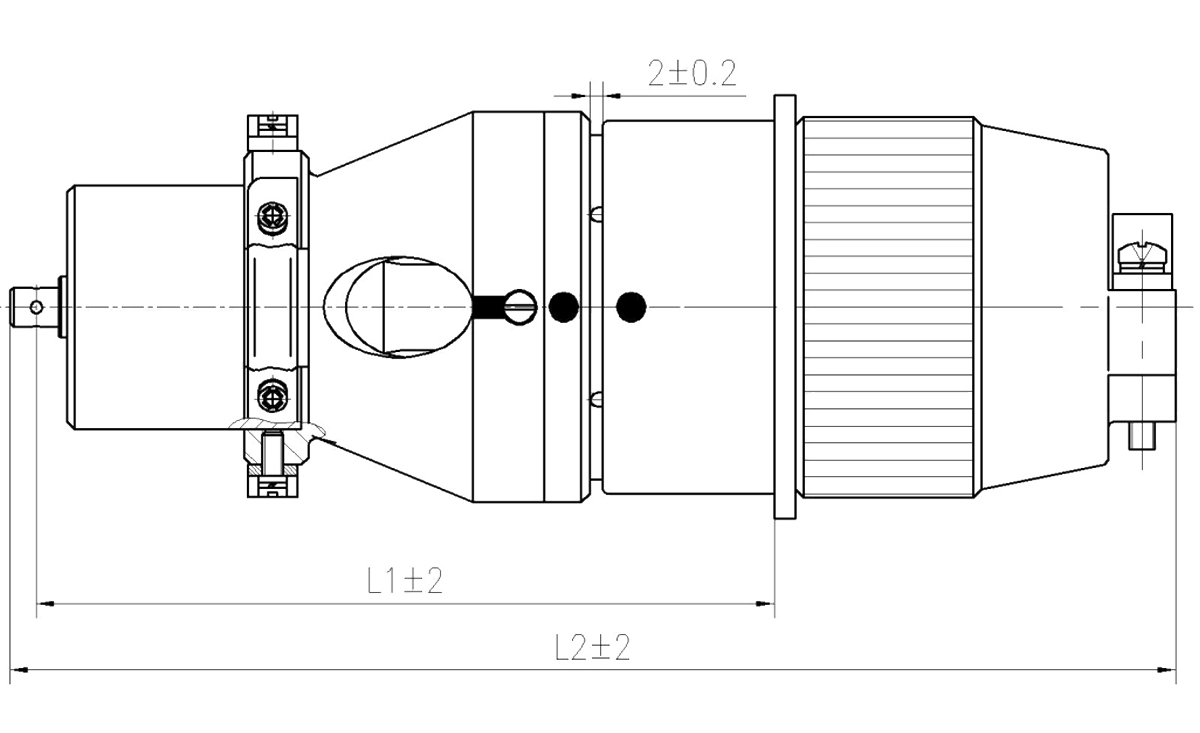

Dimension after Mating (YF30-65)
 |
|
Plug Type |
Socket Type | Size L1 | Size L2 |
| YF30-65TJ2 | YF30-65ZK2 | 90 mm |
141.5 mm |
|
YF30-65TJD |
103 mm | 156 mm | |
| YF30-65TJDa | 108.1 mm |
160 mm |
