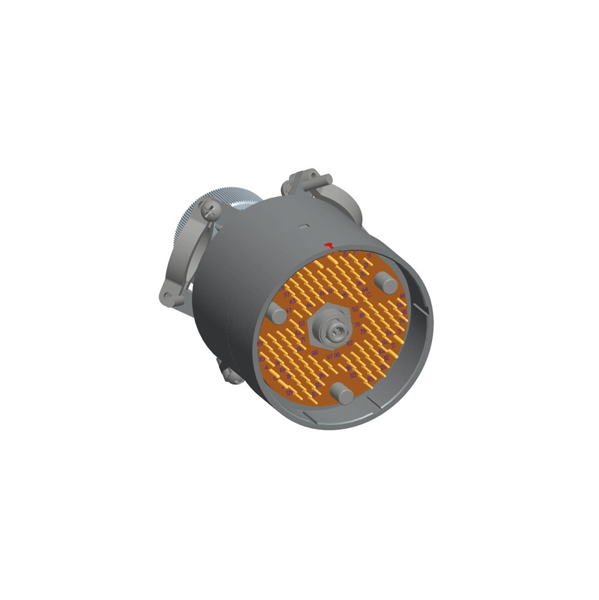

Specifications
| Shell | Aluminum Alloy |
| Shell Finishing | Nickel Plating |
| Insulator | Thermoplastic Plastic |
| Sealing Ring | Silicone Rubber |
| Contact | Gold-Plated Copper Alloy (Solder Cup) |
| Mechanical Life | 500 cycles (Reliability Improved)
100 cycles (J Grade) |
| Mechanical Demating Force | 35 N ~ 100 N |
| Sinusoidal Vibration | Frequency 10 ~ 50 Hz, Full Amplitude 2 mm
Frequency 50 ~ 2000 Hz, Acceleration 196 m/s² (J Grade) Frequency 50 ~ 2000 Hz, Acceleration 250 m/s² (Reliability Improved) |
| Random Vibration | Power Spectral Density 0.4 G2/Hz
Total Acceleration RMS 23.1 G (Reliability Improved) |
| Shock | Acceleration: 490 m/s² (J Grade)
Half-sine Wave 6 ± 1 ms, Peak Acceleration 1200 m/s² (Reliability Improved) |
| Acceleration | Peak Acceleration: 784 m/s² |
| Operating Temperature | -55℃ ~ +85℃ (J Grade)
-55℃ ~ +125℃ (Reliability Improved) |
| Constant Damp Heat Test | At 40℃ ± 2℃, 90% ~ 95% (J Grade)
At 40℃ ± 2℃, 95% ~ 98% (Reliability Improved) |
| Operating Pressure | 6.67×10-2 Pa ~ 1.01×105 Pa |
| Rain Test | Rainfall Intensity 5 mm/min |
| Flameproof | The socket’s mating surface can withstand a high temperature of 600℃ for 6 seconds (J Grade)
The socket’s mating surface can withstand instantaneous temperatures of 2000℃ (Reliability Improved) |
Electrical Ratings
Contact Resistance and Rated Current
|
Contact Specifications |
Number of Contacts | Contact Resistance | Rated Current | |
| Before Life |
After Life |
|||
|
Φ1.0 |
123 | ≤5 mΩ | ≤10 mΩ | 3 A |
| Φ1.5 | 6 | ≤3 mΩ | ≤5 mΩ |
10 A |
Note: When multiple contacts are operating simultaneously, the rated current decline rate meets the requirements in the table below.
|
Number of Contacts |
1~10 | 11~20 | 21~30 | 31~50 | 51~80 | ≥81 |
| Decline Rate % | 0% | 10% | 20% | 30% | 40% |
50% |
Insulation Resistance
|
1 atm |
High Temperature | Humid |
| ≥1000 mΩ | ≥500 mΩ |
≥20 mΩ |
Dielectric Withstand Voltage
|
1 atm |
High Temperature | Humid | Low Pressure |
| AC 1000 Vrms | AC 1000 Vrms | AC 500 Vrms |
AC 200 Vrms |
|
Shielding |
Field strength 50,000 volts/meter Spectrum Range < 100 MHz, Minimum Attenuation 60 dB (Reliability Improved) |
||

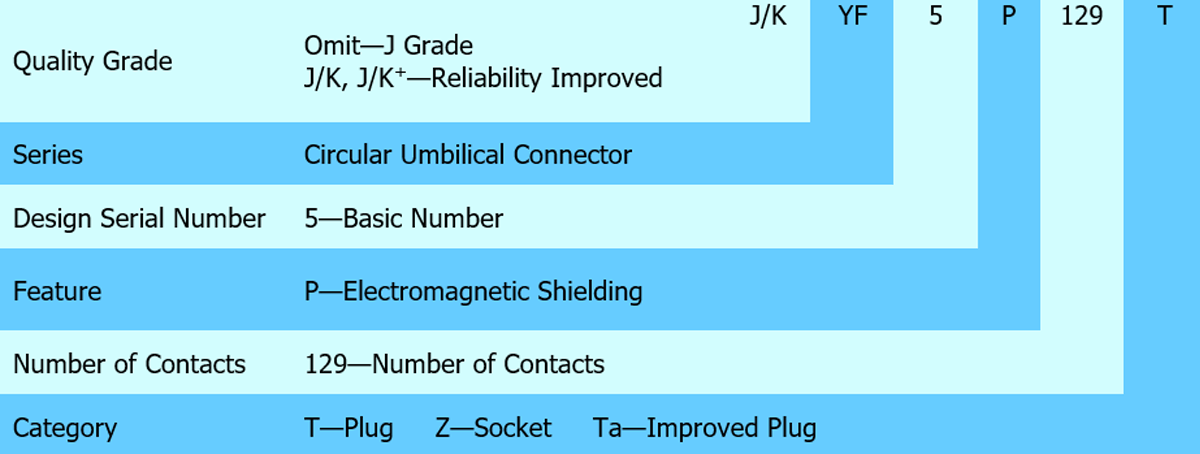

How to Order
Plug Specification
|
Quality Grade |
Plug Type | Features | Part Number of Socket |
| J Grade | YF5P-129T | Ordinary Plug |
YF5P-129Z |
|
Reliability Improved |
J/K YF5P-129T | Reliability Improved Ordinary Plug | J/K YFP5-129Z |
|
J/K YF5P-129Ta |
Reliability Improved Handwheel Improved Plug |
||
| J/K+ YF5P-129T | Reliability Improved Ordinary Plug |
J/K+ YFP5-129Z |

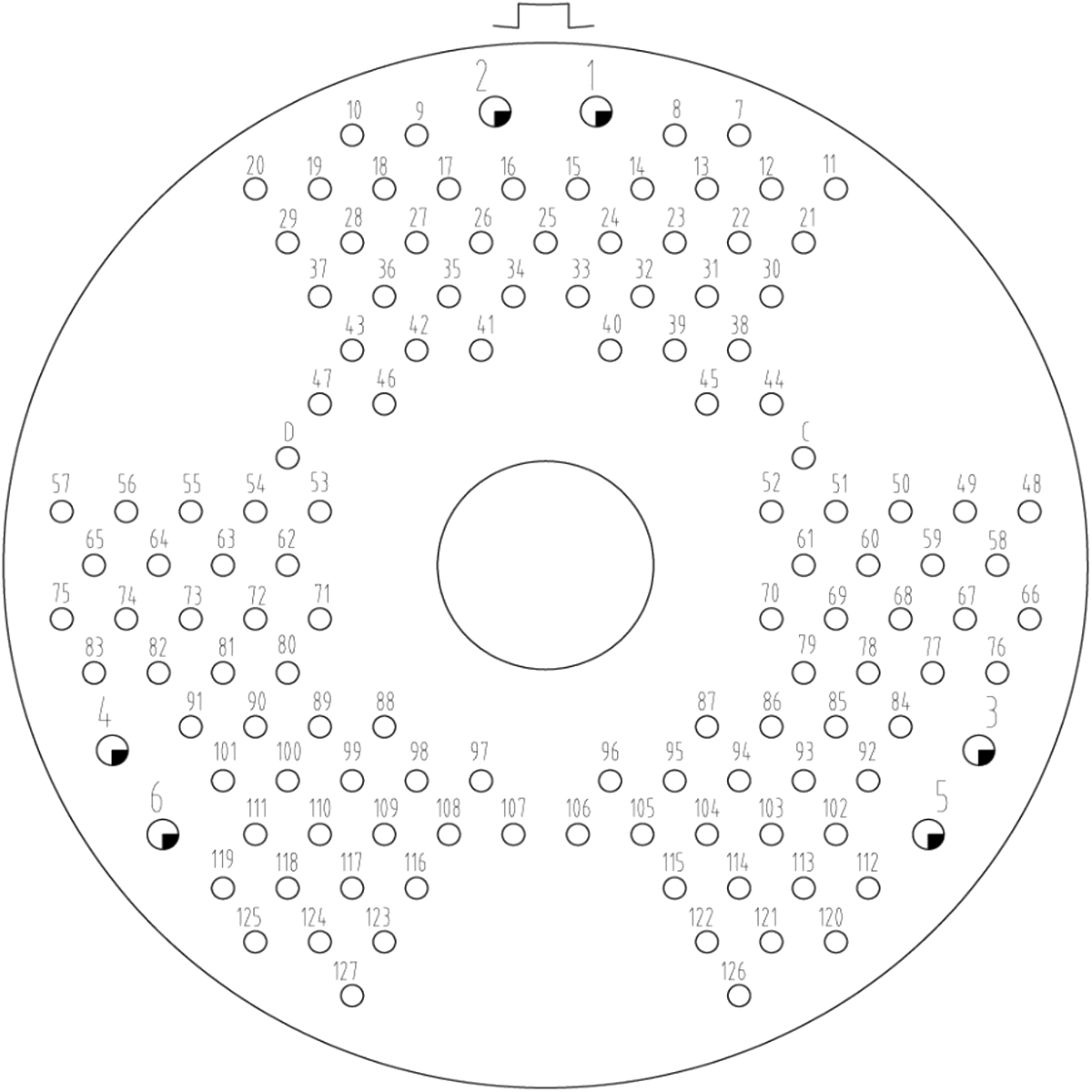

YF5P-129 Contact Arrangement (Front View of Plug Mating Surface)
 |
|
Contact Type |
Symbol | Contact Specifications | Number of Contacts | Contact Soldering Cup | ||
| Inner Diameter | Section Area |
Solderable Area |
||||
|
Ordinary Contact |
 |
Φ1.0 | 123 | Φ1.5 mm | 1.77 mm2 | 1.24 mm2 |
 |
Φ1.5 | 6 | Φ1.8 mm | 5.54 mm2 |
1.78 mm2 |
|
Plug Dimension
 |
Socket Dimension
 |
Dimension
 |
