Specifications
| Shell | Aluminum Alloy |
| Shell Finishing | Nickel Finishing |
| Insulator | Thermoplastic Plastic |
| Interfacial Seal and Sealing Ring | Silicone Rubber |
| Contact | Tin Bronze |
| Mechanical Life | 500 cycles |
| Mechanical Demating | 61 Pin: 15 N ~ 40 N, 67 Pin: 30 N ~ 90 N |
| Electromagnetic Demating | DC27 ± 3 V |
| Sinusoidal Vibration | Frequency 10 ~ 2000 Hz, Acceleration 150 m/s² |
| Random Vibration | 61 Pin Power Spectral Density 0.1 G2/Hz
67 Pin Power Spectral Density 0.4 G2/Hz |
| Shock | 61 Pin Peak Acceleration 735 m/s²
67 Pin Peak Acceleration 980 m/s² |
| Operating Temperature | -55℃ ~ +125℃ |
| Relative Humidity | 48 h |
| Salt Spray Test | At 40℃: 98% |
| Rain Test | 5 mm/min |
| Flameproof | 500℃, 800 s (67 Pin) |
Electrical Ratings
Contact Resistance and Rated Current
|
Contact Specifications |
Operating Diameter | Contact Resistance | Rated Current |
| Φ0.77 | 0.77 mm | ≤10 mΩ |
3 A |
|
1 |
1.00 mm | ≤8 mΩ |
5 A |
Insulation Resistance
|
Normal Temperature |
High Temperature | Humid and Heat | Rain Test | |
| Contact | 1000 mΩ | 500 mΩ | 20 mΩ |
20 mΩ |
|
Electromagnetic Coil |
500 mΩ | 20 mΩ | 5 mΩ |
5 mΩ |
Coaxial Contacts
|
Operating Frequency |
Characteristic Impedance | |
| 12#Coaxial Contact | 0 ~ 20 MHz |
50 Ω |
|
Quadrax Contact |
0 ~ 20 MHz |
100 Ω |
Dielectric Withstand Voltage （50 HZ)
|
Environmental Conditions |
1 atm | Low Pressure | High Temperature | Humid And Heat |
| Ordinary Contact | 1000 Vrms | 150 Vrms | 750 Vrms |
200 Vrms |
|
Coaxial Contact |
500 Vrms | 100 Vrms | 200 Vrms | 100 Vrms |
| Electromagnetic Coil | 625 Vrms | 100 Vrms | 625 Vrms |
100 Vrms |

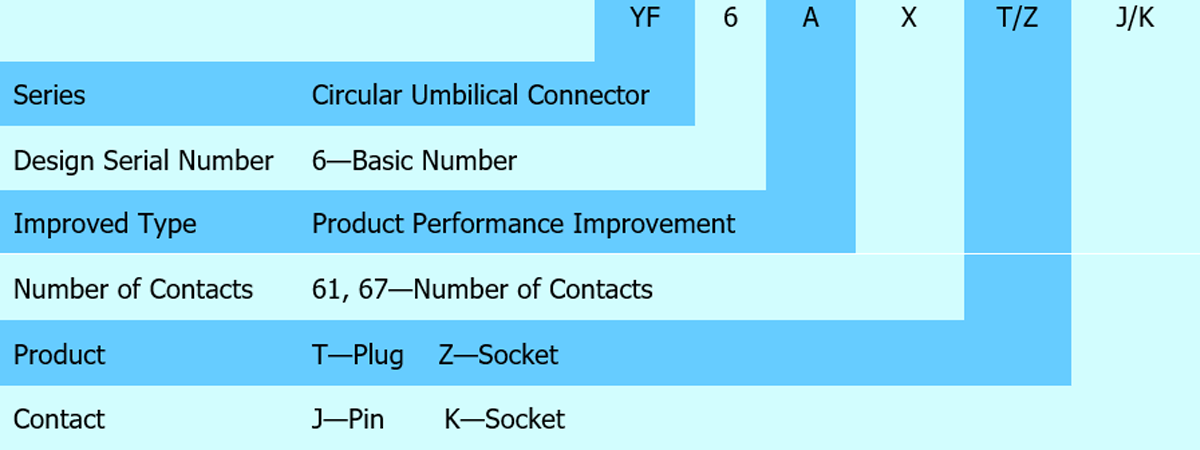

How to Order
Connector Specification
|
Quality Grade |
Plug Type | Features | Part Number of Socket | Features |
| J Grade | YF6A-61TJ | Three-outlet Cable Cover | YF6A-61ZK |
Single-layer Socket (Unsealed) |
|
YF6A-67TJ |
Three-outlet Cable Cover | YF6A-67ZK |
Double-layer Socket (Unsealed) |
Contact Arrangement (Plug Mating View)

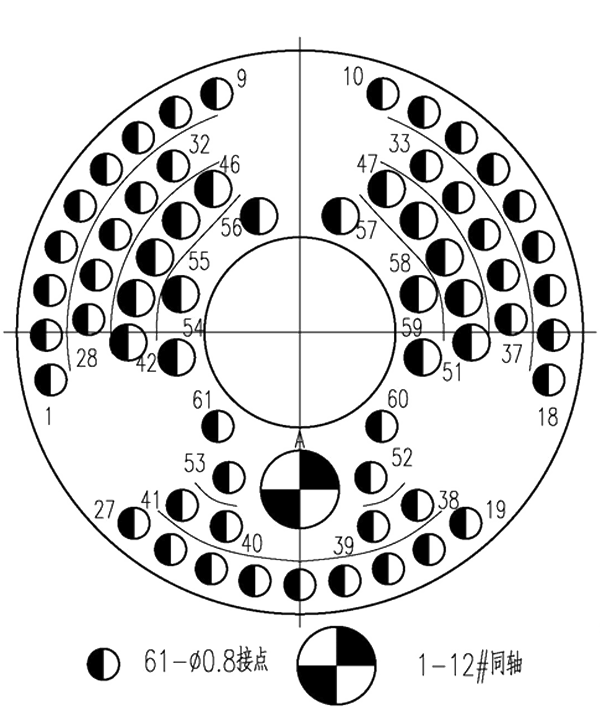

61 Pin Spectrum

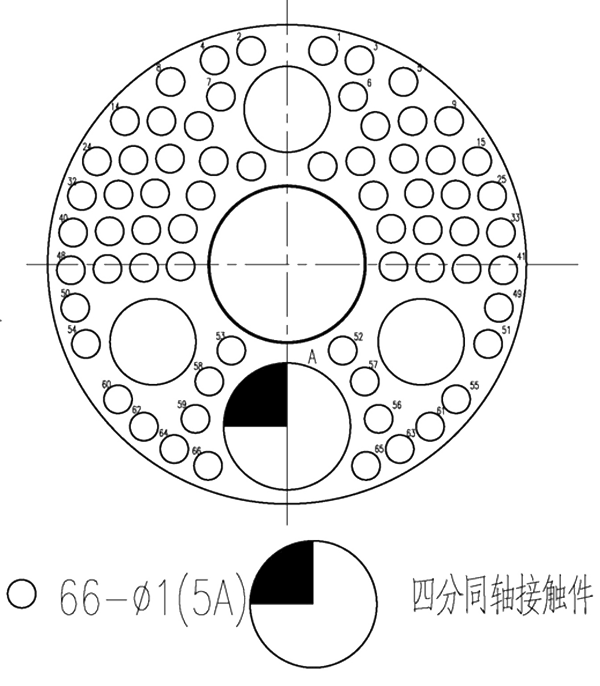

67 Pin Spectrum |
|
Contact Type |
Symbol | Contact Specifications | Contact Soldering Cup Diameter | Section Area |
Solderable Area |
|
Ordinary Contact |
 |
Φ0.8 mm | Φ0.77 mm | Φ1.1 mm2 | 0.95 mm2 |
 |
Φ1.0 mm | Φ1.0 mm | Φ1.4 mm2 |
1.54 mm2 |
Dimension

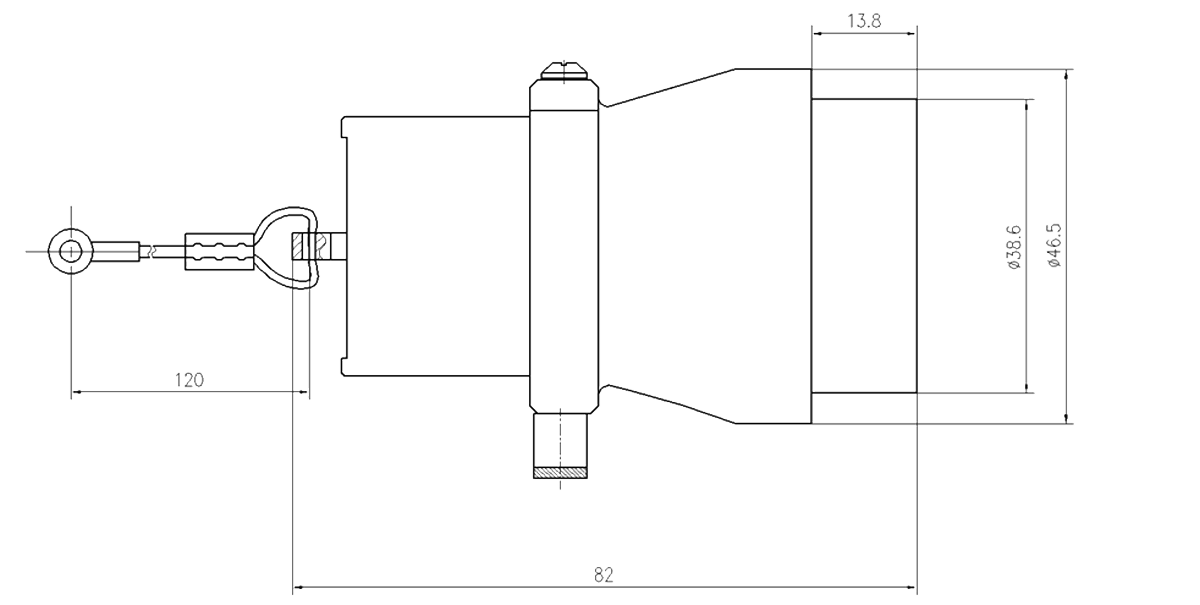

61 Pin Plug
 |
67 Pin Plug
 |
61 Pin Plug (With Cable Cover)
 |
61 Pin Socket (Without Cable Cover)
 |
67 Pin Socket
 |
67 Pin Dimension after Mating
 |
