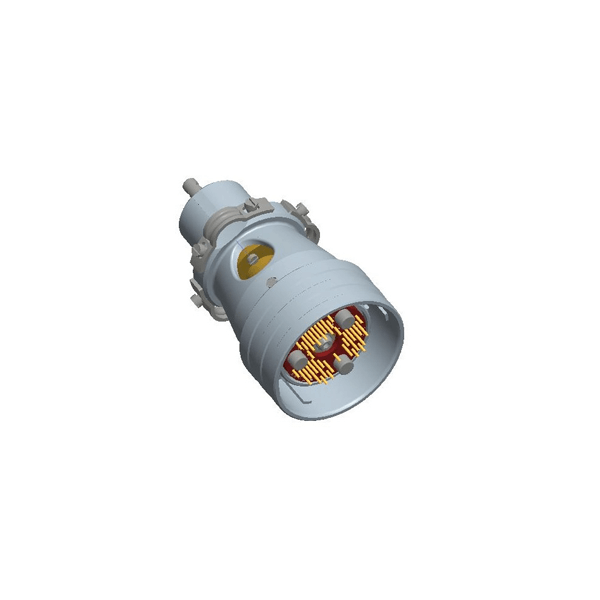

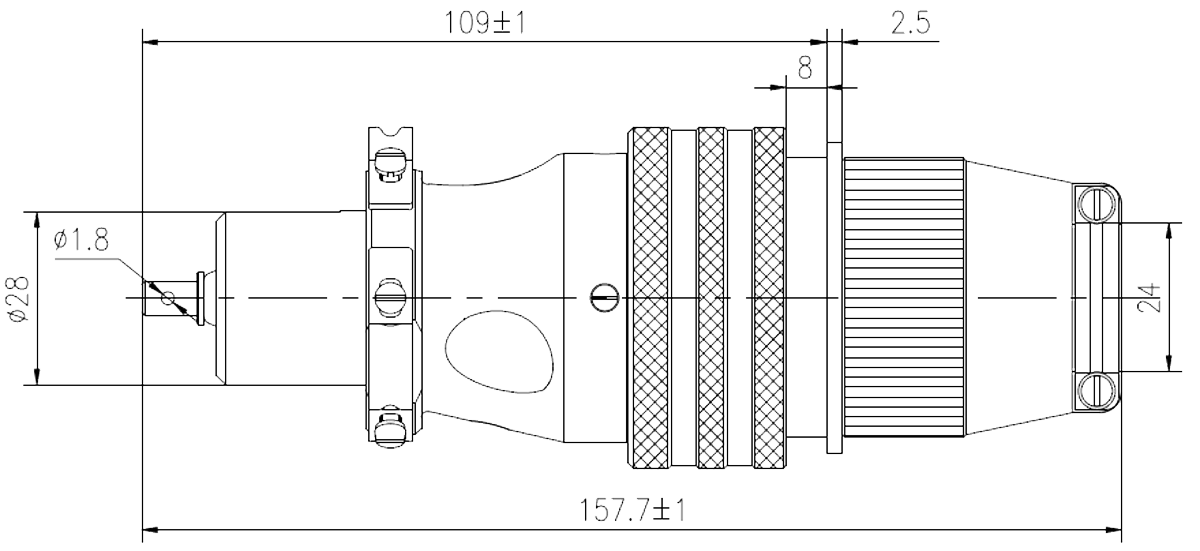

YF9 Circular Rainproof Umbilical Connector

Push-pull coupling mating and mechanical demating.
The mating is aligned by key to avoid mis-mating.
Its features compact size, lightweight, rainproof, dustproof.
It can withstand instantaneous high temperature of 850℃.
Widely used in the inter-stage electrical wiring mating of strategic and tactical weapon systems and aerospace launch systems, as well as the electrical mating between systems and ground equipment, and other industrial equipment.
Per Q/Ag1.078-1991

Shell	Aluminum Alloy
Shell Finishing	Electroless Nickel Plating, Covered with white/orange paint
Insulator	Thermoplastic Plastic
Sealing Ring	Silicone Rubber, Nitrile Rubber
Contact	Gold-Plated Copper Alloy (Solder Cup)
Mechanical Life	100 cycles
Mechanical Demating Force	29.4 N ~ 59 N
Sinusoidal Vibration	Frequency 10 ~ 2000 Hz, Acceleration 98 m/s²
Shock	Peak Acceleration 686 m/s²
Acceleration	Peak Acceleration 245 m/s²
Operating Temperature	-40℃ ~ +85℃
Relative Humidity	At 40℃ ± 2℃: 95% ~ 98%
Operating Pressure	222.9 Kpa ~ 6.7 Pa
Sealing	0.22 MPa
Rain Test	Rainfall 5 mm/min

Note: Vibration, shock, and acceleration performance decrease by 50% during mating.

1 atm	High Temperature	Humid and Heat
≥1000 mΩ	≥100 mΩ	≥20 mΩ

1 atm	Humid	Low Pressure
AC 1000 Vrms	AC 500 Vrms	AC 200 Vrms

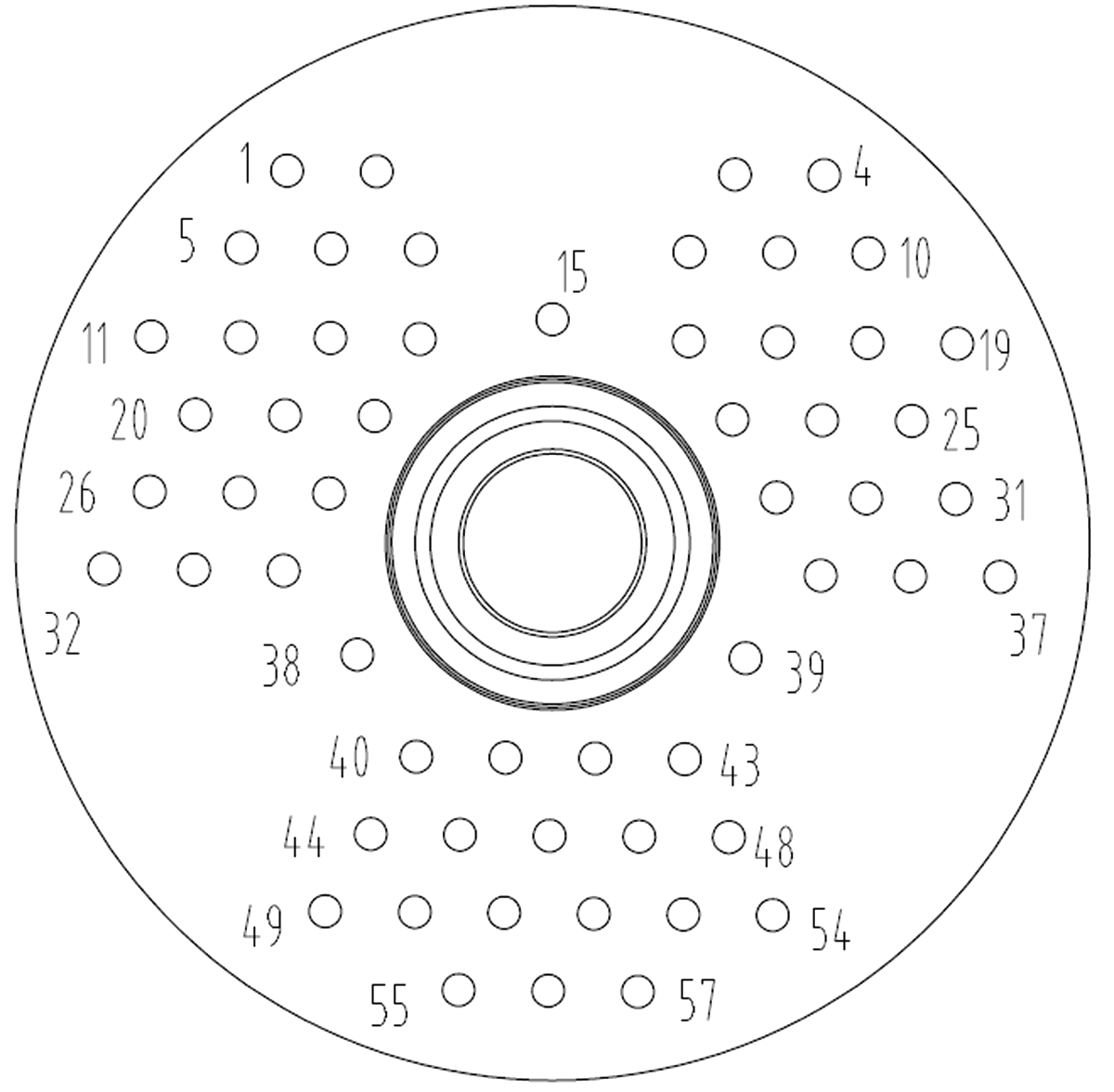

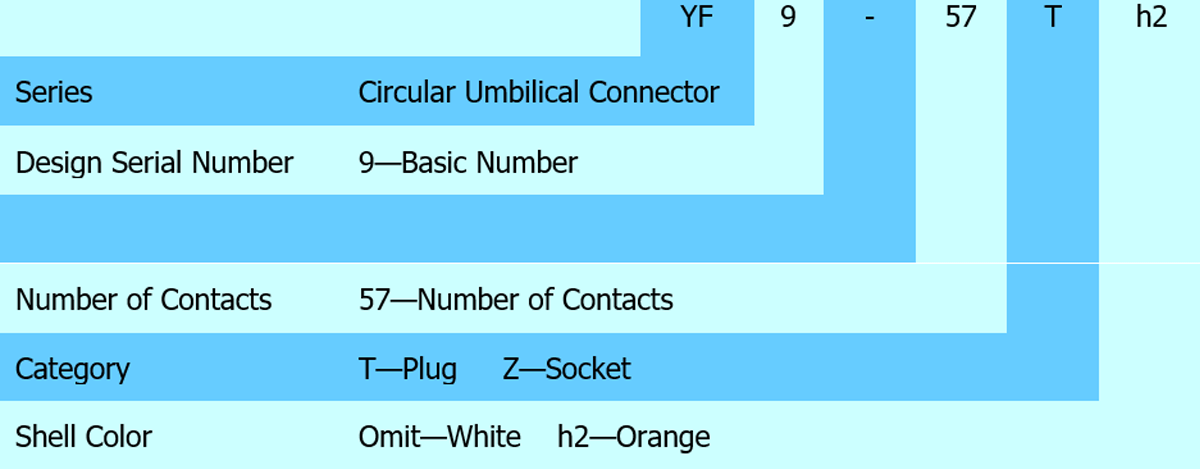

Eg: YF9-57Th2: This is a YF9 type 57 pin orange umbilical plug.

Code	Quality Grade	Feature

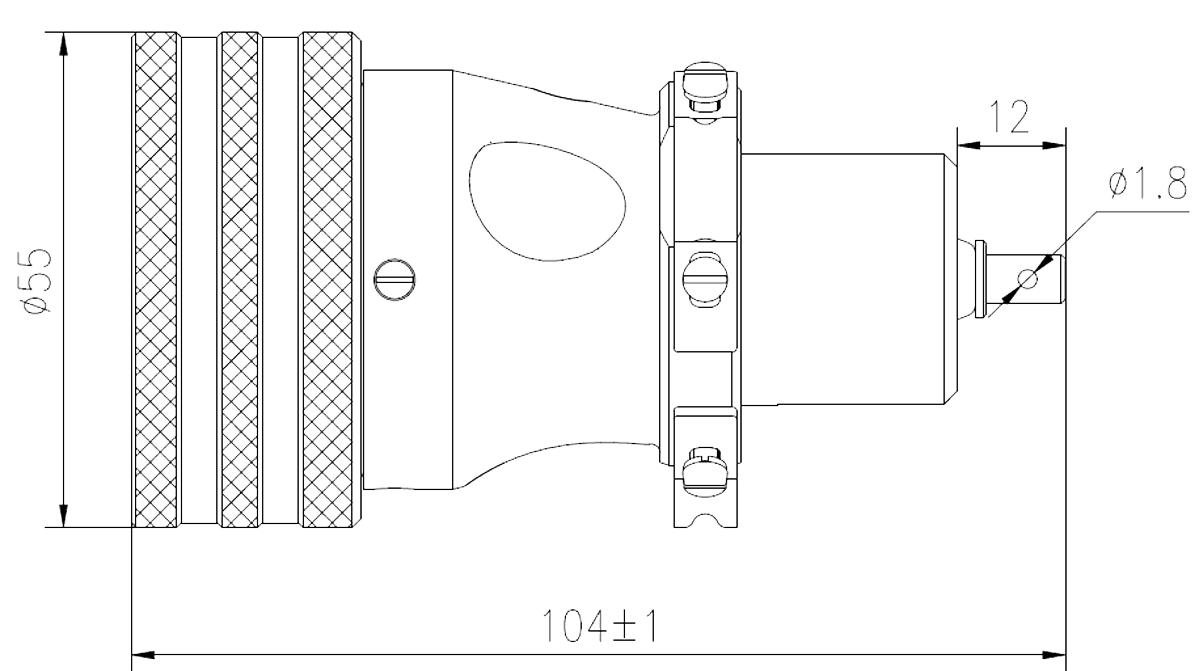

YF9-57T	J Grade	57 Pin White Umbilical Plug Mating with YF9-57Z/Zh
YF9-57Th2	J Grade	57 Pin Orange Umbilical Plug Mating with YF9-57Z/Zh

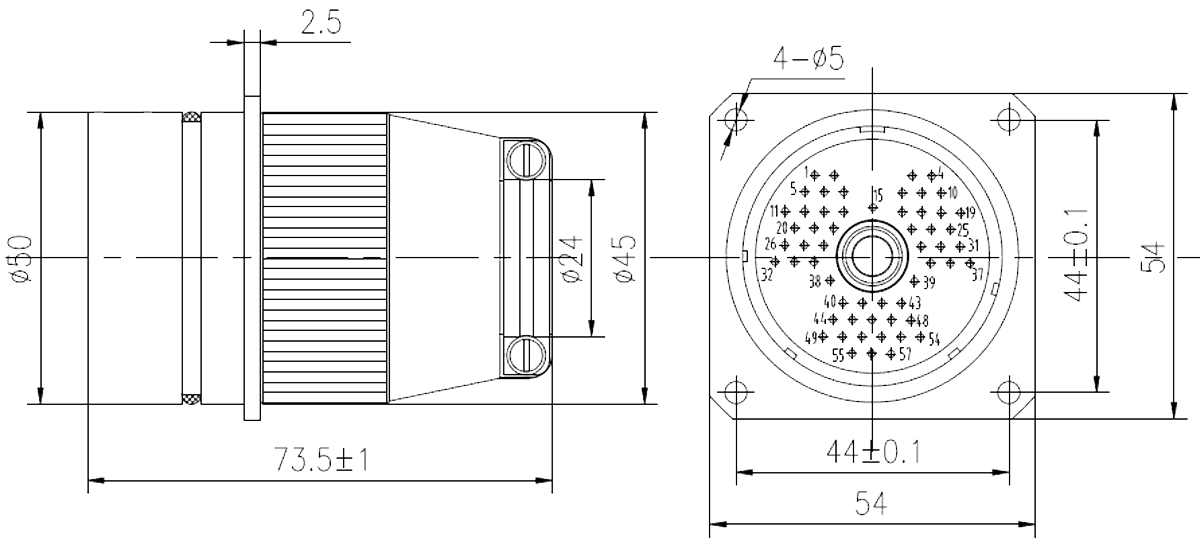

YF9-57Z	J Grade	57 Pin White Umbilical Plug Mating with YF9-57T/Th
YF9-57Zh2	J Grade	57 Pin Orange Umbilical Plug Mating with YF9-57T/Th
