1JG20-1 DC Solid State Relay

  1. Input and output transformer isolation
  2. Power MOSFET output
  3. Fast switching speed
  4. Strong anti-overload capability
  5. High reliability
  6. Standard: Q/RY.J01122-2007
Category:

Description

1JG20-1 DC Solid State Relay

Standard

Q/RY.J01122-2007



Application

Suitable for defense and industrial control fields, such as computer interfaces, digital circuit interfaces, signal transmission, numerical control equipment and measuring instruments, suitable for harsh environments



Description

  • The product can be used for normally open control, with bias terminal power control and control grounding.
Technical Parameters Min. Typ. Max. Unit
Input Parameters
Input voltage 28 V 18 28 32 Vd.c.
12 V 10 12 14
5 V 4 5 7
Input bias current 15 mA
Input control current 10 mA
Switch-on Voltage 28 V 18 Vd.c.
12 V 9
5 V 3.6
Shutdown voltage 28 V 5 Vd.c.
12 V 1.5
5 V 1.5
Switch On time 500 μ s
Switch off time 1000 μ s
Reverse polarity 14/32 Vd.c.
Output parameters
Number of output circuit groups 1D
Output current 1×10-4 20 A
Output voltage 1 30 Vd.c.
Output voltage drop 0.25 Vd.c.
Output leakage current 10 μ A
Overload 70 A
Electrical insulation parameters
Insulation resistance 500
Dielectric withstand voltage 1000 Vr.m.s.
Isolated capacity 25 pF
Environmental parameters
Seal leak rate 1×10-1 Pa·cm3/s
Random vibration 40
10~2000
(m/s2)2/Hz, Hz
Constant acceleration 980 m/s2
Shock 980, 6 m/s2, ms
Storage temperature -55~125
Operating temperature -55~105
Other parameters
Weight 30 g

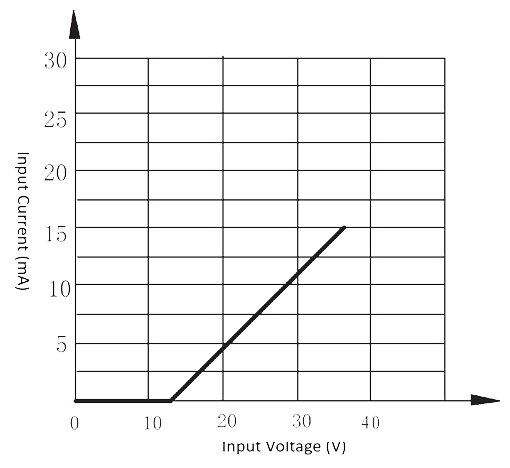

Figure 1. Input current vs. Input voltage curve Figure 2. Maximum output current vs. ambient temp.
Figure 1. Input current vs. Input voltage curve - 1JG20-1 DC Solid State Relay Figure 2. Maximum output current vs. ambient temp. - 1JG20-1 DC Solid State Relay

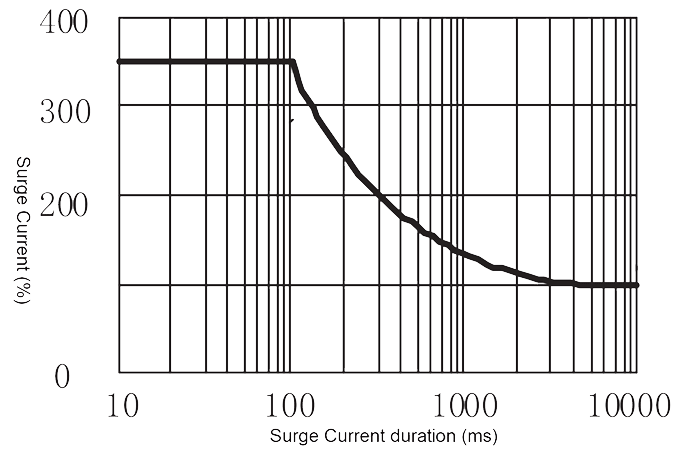

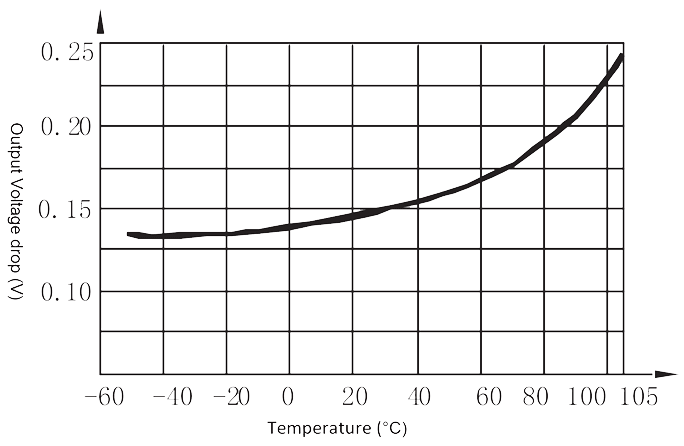

Figure 3. output voltage drop vs. temperature curve Figure 4. Peak Surge Current vs. Surge Current Duration
Figure 3. output voltage drop vs. temperature curve - 1JG20-1 DC Solid State Relay Figure 4. Peak Surge Current vs. Surge Current Duration - 1JG20-1 DC Solid State Relay

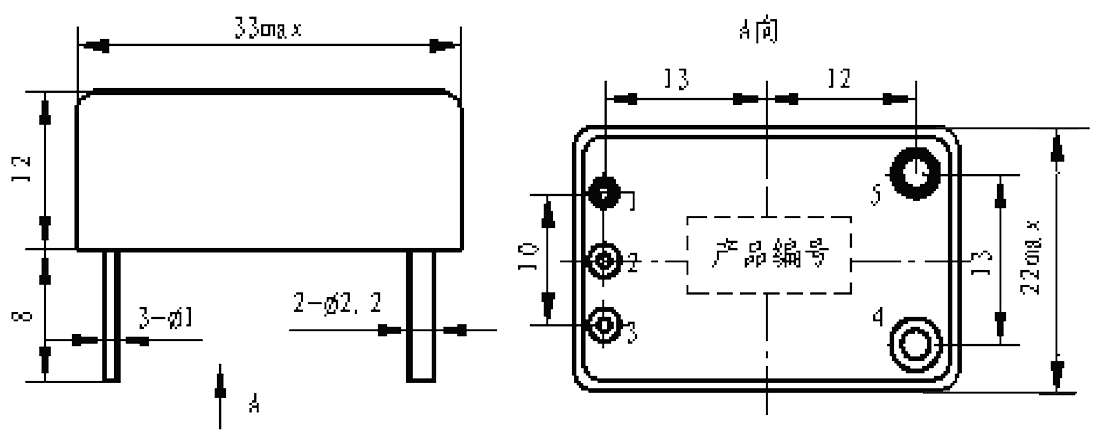

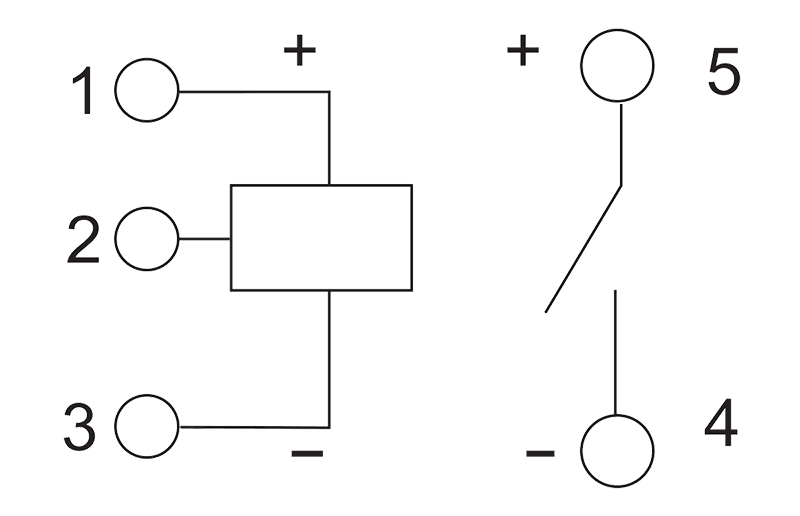

Mechanical drawings Bottom view Circuit
Mechanical drawings - 1JG20-1 DC Solid State Relay Bottom view Circuit - 1JG20-1 DC Solid State Relay



Order Mark

Example: 1JG20-1 012Y

1 JG 20 1 012 Y
Number of outputs Solid relay main name Rated output current Design Number Specification No. (012:12V, 028: 28V) Screening level (Y or W)
