2JG0.5-1 Hermetic DC Solid State Relay

  1. Single input dual output
  2. Input and output transformer isolation
  3. Power MOSFET output
  4. Fast switching speed
  5. Strong anti-overload capability
  6. All sealed packages
  7. High reliability
  8. Standard: RY4.546.041JT
Category:

Description

2JG0.5-1 Sealed DC Solid State Relay

Standard

RY4.546.041JT

Application

Suitable for defense and industrial control fields, such as computer interfaces, digital circuit interfaces, signal transmission, numerical control equipment and measuring instruments, suitable for harsh environments.

Technical Parameters Min. Typ. Max. Unit
Input Parameters
Input voltage 4 5 7 Vd.c.
Input current (5V) 4 10 14 mA
Guaranteed turn-on voltage 3.6 Vd.c.
Guaranteed turn-off voltage 1.5 Vd.c.
Switch On time 60 μ s
Switch off time 1200 μ s
Reverse polarity 7 Vd.c.
Output parameters
Number of output circuit groups 2H (2 groups N.O.)
Output current 1×10-4 0.5 A
Output voltage 0.5 30 Vd.c.
Output voltage drop 0.2 Vd.c.
Output leakage current 10 μ A
Transient voltage 60 Vd.c.
Overload 2 A
Electrical insulation parameters
Insulation resistance 100
Dielectric withstand voltage 300 Vr.m.s.
Isolated capacity 25 pF
Environmental parameters
Seal leak rate 5×10-1 Pa·cm3/s
Random vibration 20
10~3000
(m/s2)2/Hz, Hz
Constant acceleration 980 m/s2
Shock 980, 6 m/s2, ms
Storage temperature -55~125
Operating temperature -55~85
Other parameters
Weight 4 g



Figure 1. Input current vs. Input voltage curve Figure 2. Maximum output current vs. ambient temp.
2JG0.5 1 Figure 1. Input current vs. Input voltage curve - 2JG0.5-1 Hermetic DC Solid State Relay 2JG0.5 1 Figure 2. Maximum output current vs. ambient temp - 2JG0.5-1 Hermetic DC Solid State Relay

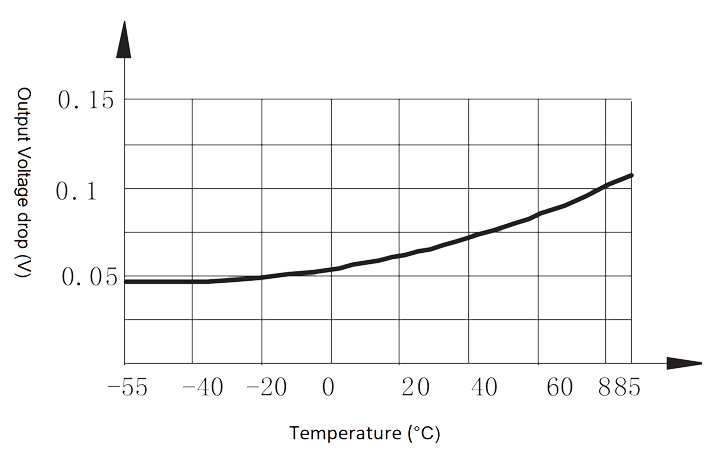

Figure 3. output voltage drop vs. temperature curve Figure 4. Peak Surge Current vs. Surge Current Duration
2JG0.5 1 Figure 3. output voltage drop vs. temperature curve - 2JG0.5-1 Hermetic DC Solid State Relay 2JG0.5 1 Figure 4. Peak Surge Current vs. Surge Current Duration - 2JG0.5-1 Hermetic DC Solid State Relay



Mechanical drawings Bottom view Circuit
2JG0.5 1 Mechanical drawings - 2JG0.5-1 Hermetic DC Solid State Relay 2JG0.5 1 Bottom view Circuit - 2JG0.5-1 Hermetic DC Solid State Relay



Order Mark

Example: 2JG0,5-1

2 JG 0.5 1
Number of outputs Solid relay main name Rated output current Design Number

Note: Please specify the screening level (Y or W) or special demands when ordering.
