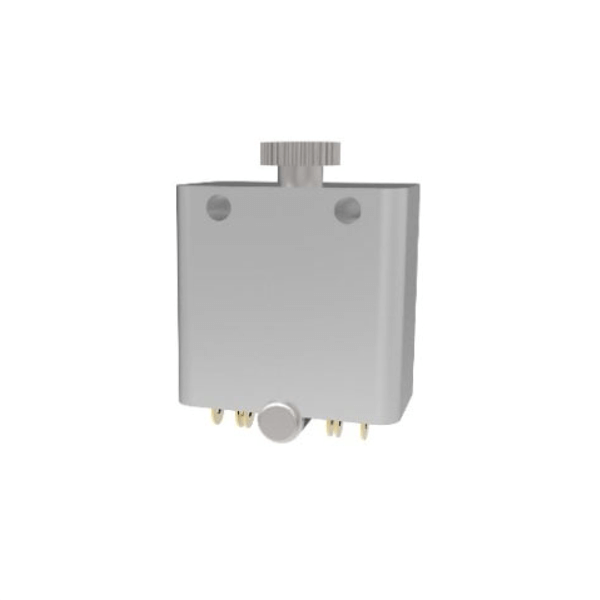

Specifications
| Characteristics |
Parameter |
| Quality Grade |
Military Products (Ⓙ) |
| Operating Temperature |
-45°C ~ 65°C |
| Relative Humidity |
(40 ± 2) °C, 91% ~ 95% |
| Low Pressure Test |
1 kPa |
| Random Vibration |
10 Hz ~ 100 Hz |
100 Hz ~ 1000 Hz |
1000 Hz ~ 2000 Hz |
| +6 dB/Oct |
6 (m/s2)2/Hz |
-6 dB/Oct |
| Shock |
700 m/s2 |
| Acceleration |
500 m/s2 |
| Circuitry |
4 From c |
| Connection Types |
Solder Strip |
| Pretravel ≤ 1.5 mm |
2 ~ 1, 5 ~ 6, 8 ~ 7, 11 ~ 12 (ON) |
| 2 ~ 3, 5 ~ 4, 8 ~ 9, 11 ~ 10 (OFF) |
| Total Travel |
1.7 mm ± 0.15 mm |
| Total Travel Force |
≤ 30 N |
| Electrical Life |
1000 cycles |
Electrical Ratings
| Contact Rating |
27 ± 3 Vd.c., 1 A |
| Contact Resistance |
≤ 0.05 Ω |
| Insulation Resistance |
≥ 500 MΩ |
| Dielectric Withstanding Voltage |
≥ 500 Vr.m.s. |
Dimension
|
Circuit Diagram
|
 |
 |
Order Mark
| 4KX-5 |
Ⓙ |
| Part Number |
Quality Grade |
Technical specification: RY3.604.067JT (exclusive)
RY3.604.021JT
