AK-45 Specifications |
|
| Electrical Rating Resistive | Rated voltage: 28±10%VDC, Rated Current: 5A |
| Pre-travel PT(mm) | 5±0.5 |
| Over travel OT(mm) | ≥14 |
| Operating Force OF(N) | ≤50 |
| Total Travel力(N) | 60～100
[The measuring point is when the actuator button is pressed until the red warning line is basically flush with the end surface of the upper body (ie sleeve)] |
| Operating Temp (℃) | -55～60 |
| Weight (g) | ≤400 |
| Mechanical Life (cycles) | a） (-55℃)2000 cycles;
b）Normal 11000 cycles。 |
| Insulation Resistance (normal) MΩ | ≥1000 |
| Insulation Resistance (damp heat) MΩ | ≥10 |
| Dielectric Withstand Voltage (normal) V ac | 500 |
| Salt fog (h) | 48 |
AK-45

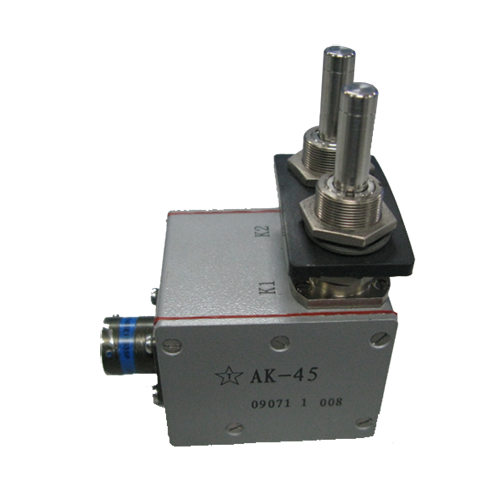

AK-45 Aviation & Military Push Button Switch
1. Large load capacity;
2. With instantaneous action function, the action is sensitive and the parameter accuracy is high;
3. It is suitable for product use under low power or special environment;
4. The electrical life can reach 2000 to 11000 times.
Standard: Meet GJB150-86 military equipment environmental test method (part), GJB360A-96 electronic and electrical component test method (part), GJB809A-97 micro switch general technical specification (part), AK-45 travel switch special technical specification ( internal).
