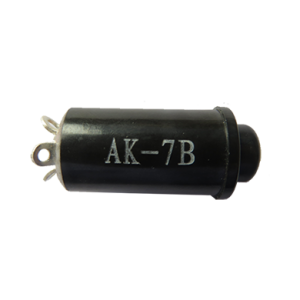

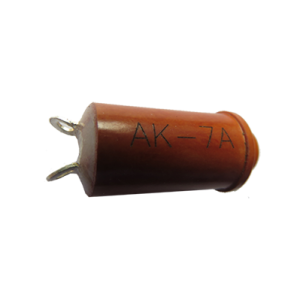

AK-7、AK-7A、AK-7B、AK-7D specifications |
||
| Electrical Rating | AK-7、AK-7B、AK-7D | AK-7A |
| 27VDC、5A (Resistive) | 27VDC、5A (Resistive)
28.5VDC、3A (Inductive, τ=0.005s) |
|
| Travel (mm) | ≤2 | |
| Overrun(mm) | ≥0.3 | |
| Operating Force (N) | ≤19.61 | |
| Releasing Force (N) | ≥4.9 | |
| Operating Temp (℃) | -55～+60 | -55～+80 |
| Mechanical Life (cycles) | 10000 | 20000 |
| Insulation Resistance (normal) MΩ | ≥20 | |
| Insulation Resistance (damp heat) MΩ | ≥1 | |
| Dielectric Withstand Voltage (normal) V ac | 500 | |
| Salt fog (h) | 48 | |
| Weight (g) | ≤5.5 | |
AK-7 Series
AK-7 Series Aviation & Military Push Button Switch
- Moderate size, light weight, wide load range;
- Double breakpoint structure, with instantaneous action function, good operation feel;
Standard: Meet GJB150-86 military equipment environmental test method (part), GJB360A-96 electronic and electrical component test method (part), GJB809B-2013 general technical specification for micro switch (part), AK-7, 7A, 7B, 7D Technical specification for button switch.
