NK2 Series

NK2 Series Aviation & Military Toggle Switch

1. Double pole double throw;
2. Non-maintainability;
3. Operating Temp.: (-60~90)℃.

Category:

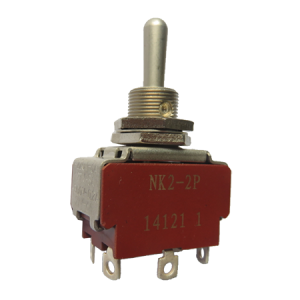

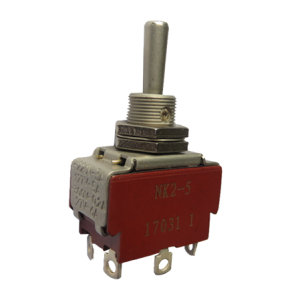

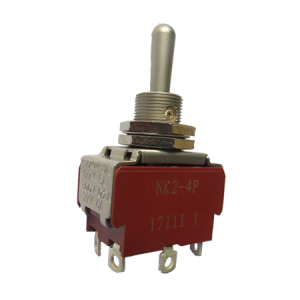

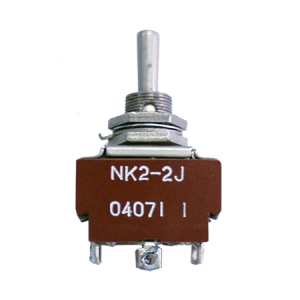

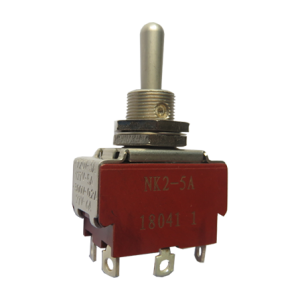

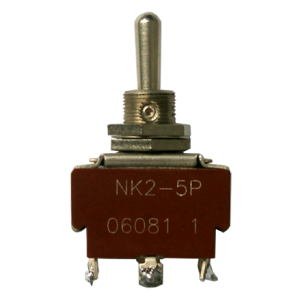

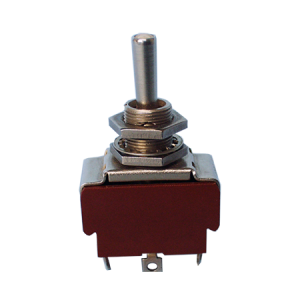

NK2-2 NK2-2J NK2-2P NK2-3 NK2-4 NK2-4P NK2-5 NK2-5A NK2-5P
Orientation Groove Keep Keep Keep Keep Keep Keep Automatic

Reset

Automatic

Reset

Keep
Neutral position Keep Keep Keep Keep Keep Keep Keep Keep Keep
Reverse Orientation Groove Keep Keep Keep Keep Keep Keep Automatic

Reset

Automatic

Reset

Automatic

Reset

With light Yes Yes Yes Yes Yes

NK2 Series

NK2-2、NK2-3、NK2-4、NK2-4P、NK2-2P、NK2-5、NK2-5A、NK2-5P NK2-2J
Electrical Load A Group: 27VDC、6A (Resistive);

B Group: 300VDC、0.2A (Resistive);

C Group: 220VAC、3A (Resistive);

D Group: 127VAC、5A (Resistive).

A Group: 36VDC、5A (Resistive);

B Group: 36VDC、2A (Inductive. τ=0.015s);

C Group: 62.5VAC、4A (Resistive);

D Group: 50VAC、3A (Inductive. cosφ=0.5).

Electric Life 10000 cycles 25000 cycles
Reversing Force  (2.94~29.4)N
Weight 40g max: NK2-2、NK2-3、NK2-4、NK2-4P、45g max: NK2-2P; NK2-5、NK2-5A、NK2-5P 50g max
Operating Temp. -60℃~90℃ -55℃~70℃
Insulation Resistance (normal) 1000ΜΩ
Insulation Resistance (damp heat) 10ΜΩ 20ΜΩ
Dielectric Withstand Voltage 1500VAC 750VAC
Salt Spray 48h
