YP Series Circular Connector

  1. This series combines the advantages and functions of the Y2 series with the P-type electrical connector.
  2. The bayonet type connection structure with Y2 adopts the contact arrangement pattern of the P-type connector.
  3. It has the characteristics of small size, light weight, wide contact type spectrum and fast separation.
  4. The LYP series housing is machined from high-strength aluminum alloy.
  5. The LYP series is interchangeable with the YP series and is an ideal replacement for the old-fashioned ‘P’ connector.
  6. Widely applicable to electrical equipment and circuit connections between various instruments and meters
  7. Enterprise Standard: Q/321202LHY021-2012
Category:

Description

YP series Electrical Connector

Characteristic

Working temperature

Soldering type: -55°C~ +125°C

Crimp type: -55 °C ~ +200 °C

Vibration

YP series: 10Hz ~ 2000Hz ,147 m/s2

LYP series: 10Hz ~ 2000Hz ,196 m/s2

Shock

490 m/s2

Seal

withstand air pressure: 0.2Mpa (only sealed receptacle)



Electrical specifications

  • Contact resistance and rated current

Contact specifications (mm)

Contact resistance (mΩ) Rated Current (A)

Φ1.0

≤5 5

Φ1.5

≤3 10
Φ2.5 ≤1

25

Φ3.5 (YP series only) ≤1

50

Φ5.5 (YP series only) ≤1

100

  • Withstand Voltage (YP series only)

Number of Contacts

Withstand Voltage (V)

3、4、5、7、10、14、19

1500

24、32、36、37、50、65、81、120

1000

  • Rated voltage, withstand voltage and insulation resistance

Working Environment

Rated voltage (V) Withstand Voltage (V) Insulation Resistance (MΩ)

Normal Temperature and pressure

500 1500 ≥ 3000

High temperature and humidity

500 750(YP series)

1125(LYP series)

≥ 20

High temperature 500

≥ 500

Low air pressure: 4.39kpa 250 750(YP series)

350(LYP series)

Note: When the number of contacts is 32, 37, 65, 81, 120, the withstand voltage is 1000V under normal temperature conditions.

  • Crimp pinhole axial load (refer to GJB101A)

Contact size (mm)

Minimum axial load (N)

1.0

50
1.5

60

2.5

70



Contact crimping barrel inner diameter and adapter wire cross section

Contact diameter (mm)

Type inner diameter (Φ) Adapter wire cross section (mm2)

1.0

A

0.8 0.2~0.4

B

1.2 0.5~0.8

C

1.6 1~1.5

1.5

A

0.8 0.2~0.4

B

1.2 0.5~0.8
C 1.6

1~1.5

D 2.0

>1.5

2.5 A 0.8

0.2~0.4

B 1.2

0.5~0.8

C 1.6

>1~1.5

D

2.0

>1.5



Mechanical specifications

  • Shell: Aluminum alloy castings (YP series)
  • High-strength aluminum alloy material (LYP series)
  • Plating: nickel-plated, painted (YP series)
  • Anodized coloring, nickel plating (LYP series)
  • Insulator: heat resistant thermoplastic or thermoset material
  • Contact: Copper alloy plating: gold, silver
  • Mechanical life: 500 times



Order mark

Example: YP21ZJM5gQYNi

YP21 Z J M 5 g Q Y Ni
Main code:
  • LYP – indicates circular electrical connection
  • 21 – Housing number 21, 28, 36, 50
YP21
Housing form:
  • T-plug,
  • Z-receptacle
Z
Contact category:
  • J- pin,
  • K- socket
J
Sealing mark:
  • M – Receptacle seal
  • No marking – Plug or unsealed receptacle
M
Contact combination code:
  • YP21 (1-13),
  • YP28 (1-27),
  • YP36 (1-15),
  • YP50 (1-8)
5
Contact surface plating:
  • u- Gold plated;
  • g- Silver plated
g
Cable cover form:
  • Q- straight cable cover;
  • W- curved cable cover
Q
Wiring method:
  • Y- Crimp type;
  • No mark- Soldered
Y
 Surface treatment:
  • No marking – Black paint;
  • Ni- Blasting nickel plating
Ni



Product Dimension

Model No.

Installation size Dimension

A

D1 M T B H D2 D3 D4 L1 L2 L3 L4 L5 L6 L7 L8

YP21

22~24 12 M21x0.75 LH 3.5 31 51 31 22.7 41 92 82 65 47 102 92 75 57
YP28 28~32 18 M28x1 LH 3.5 42 59 38 28.7 48 106 92 70 51 119 106 84

65

YP36 36~40 26 M36x1 LH 3.5 50 68 46 36.7 56 123 112 81 62 134 123 92

73

YP50 48~52 40 M50x1 LH 4.5 63 60 51.2 130 91 73



Model No.

A B D D1 D2 D3 L

LYP14

16

24 Φ6.5 Φ24 Φ15.5 Φ14 41

LYP21

23 31 Φ12 Φ31 Φ22.6 Φ21

45

LYP28 28 38 Φ18

Φ38

Φ28.6

Φ28

49

LYP36 36 46 Φ26 Φ46 Φ36.6 Φ36

60

LYP50 50 62.5 Φ40 Φ60 Φ51.1

Φ50

71



Contact fitting dia. (mm) 1 1.5 2 2.5 3.5 5 5.5
Identification symbol yp contact sample6 - YP Series Circular Connector yp contact sample7 - YP Series Circular Connector yp contact sample5 - YP Series Circular Connector yp contact sample1 - YP Series Circular Connector yp contact sample2 - YP Series Circular Connector yp contact sample3 - YP Series Circular Connector yp contact sample4 - YP Series Circular Connector



No. of contacts 2 pins 3 pins
yp contact 20 - YP Series Circular Connector yp contact 21 - YP Series Circular Connector yp contact 1 - YP Series Circular Connector yp contact 12 - YP Series Circular Connector yp contact 22 - YP Series Circular Connector yp contact 23 - YP Series Circular Connector yp contact 19 - YP Series Circular Connector
Model No. YP21-1 YP21-2 YP28-1 YP28-1 YP21-3 YP21-4 YP36-1
Contact size Φ1.5X2 Φ2.5X2 Φ3.5X2 Φ5X2 Φ2.5X3 Φ1.5X3 Φ5.5 X 3
No. of contacts 4pins
yp contact 3 - YP Series Circular Connector yp contact 4 - YP Series Circular Connector yp contact 5 - YP Series Circular Connector yp contact 24 - YP Series Circular Connector yp contact 25 - YP Series Circular Connector yp contact 26 - YP Series Circular Connector yp contact 2 - YP Series Circular Connector
Model No. YP21-6 YP21-7 YP21-8 YP28-3 YP28-5 YP28-6 YP28-7
Contact size Φ2.5X4 Φ1.5X4 Φ1.5X2

Φ2.5X2

Φ1.5X2

Φ2.5X2

Φ2.5X2

Φ3.5X2

Φ1.5X2

Φ3.5X2

Φ3.5X4
No. of contacts 4 pins 5 pins 6 pins 7 pins
yp contact 6 - YP Series Circular Connector yp contact 10 - YP Series Circular Connector yp contact 11 - YP Series Circular Connector yp contact 7 - YP Series Circular Connector yp contact 13 - YP Series Circular Connector yp contact 8 - YP Series Circular Connector yp contact 9 - YP Series Circular Connector
YP36-2 YP21-9 YP21-10 YP28-8 YP21-11 YP28-10 YP28-14
Φ5.5X4 Φ2.5 X 5 Φ1.5X5 Φ1.5X4

Φ3.5X2

Φ1.5X7 Φ2.5X7

Φ1.5X3

Φ2.5X4

No. of contacts 8 pins 10 pins 12 pins
yp contact 14 - YP Series Circular Connector yp contact 18 - YP Series Circular Connector yp contact 15 - YP Series Circular Connector yp contact 16 - YP Series Circular Connector yp contact 17 - YP Series Circular Connector
Model No. YP28-15 YP21-12 YP28-19 YP28-21 YP28-22
Contact size Φ2.5X8 Φ1X6

Φ1.5X4

Φ1.5X10 Φ1.5X6

Φ2.5X6

Φ1.5X12

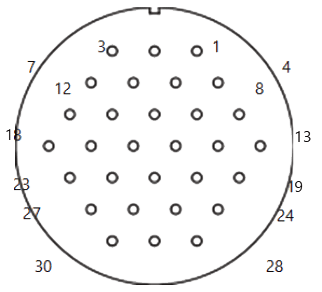

No. of contacts 14 pins 16 pins 19 pins
yp contact 32 - YP Series Circular Connector yp contact 30 - YP Series Circular Connector yp contact 27 - YP Series Circular Connector yp contact 28 - YP Series Circular Connector yp contact 31 - YP Series Circular Connector yp contact 36 - YP Series Circular Connector
Model No. YP21-13 YP28-23 YP36-5 YP36-11 YP28-24 YP36-12
Contact size Φ1×14 Φ1.5×14 Φ1.5×8

Φ2.5×6

Φ1.5×16 Φ1×15

Φ1.5×4

Φ1.5×19
No. of contacts 20 pins 24 pins 26 pins 30 pins
yp contact 33 - YP Series Circular Connector yp contact 37 - YP Series Circular Connector yp contact 34 - YP Series Circular Connector yp contact 35 - YP Series Circular Connector yp contact 29 - YP Series Circular Connector
Model No. YP50-1 YP28-25 YP50-2 YP50-3 YP50-4
Contact size Φ1.5×14

Φ2.5×6

Φ1×20

Φ1.5×4

Φ1.5×26 Φ1.5×22

Φ2.5×8

Φ1.5×30
No. of contacts 32 pins 37 pins 36 pins 50 pins
yp contact 41 - YP Series Circular Connector yp contact 40 - YP Series Circular Connector yp contact 39 - YP Series Circular Connector yp contact 42 - YP Series Circular Connector yp contact 38 - YP Series Circular Connector
Model No. YP28-26 YP28-27 YP36-13 YP36-14 YP50-8
Contact size Φ1×32 Φ1×37 Φ1×32

Φ1.5×4

Φ1×46

Φ1.5×4

Φ2×50

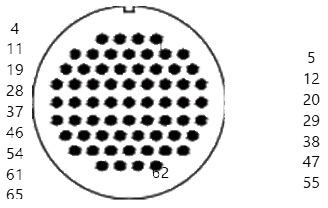

No. of contacts 65 pins 81 pins 120 pins
yp contact 45 - YP Series Circular Connector yp contact 43 - YP Series Circular Connector yp contact 44 - YP Series Circular Connector
Model No. YP36-15 YP50-6 YP50-7
Contact size Φ1×65 Φ1×71

Φ1.5×10

Φ1×120
