AK-11 Series Specifications |
||
| AK-11A | AK-11、AK-11C、AK-11D、AK-11E、AK-11F、11G | |
| Electrical Rating | Switch: 27VDC、1A (Inductive)
Light: 27V, 0.06A |
Switch: 27VDC 、0.1A(Resistive)
Light: 27V, 0.06A |
| Pre-travel PT(mm) | 2～3.5 | |
| Total Travel OT(mm) | 2.5～4 | |
| Operating Force(N) | 19.6～29.4 | |
| Operating Temp (℃) | -55～+85 | |
| Weight (g) | ≤110 | |
| Mechanical Life (cycles) | 10000 | |
| Insulation Resistance (normal) MΩ | ≥20 | |
| Insulation Resistance (damp heat) MΩ | ≥2 | |
| Dielectric Withstand Voltage (normal) V ac | 500 | |
| Salt fog (h) | 48 | |
AK-11 Series

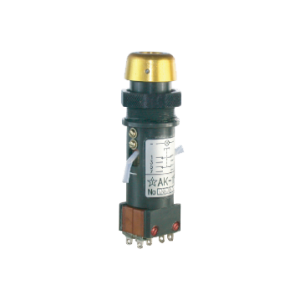

AK-11 Series Aviation & Military Push Button Switch
1. The operation feels comfortable;
2. The buttons are available in red, black, green, white, yellow, blue and other colors, and the variety is complete;
3. Various connection forms of switch circuit;
4. Long life and reliable work.
Standard: Meet HB0-71-76 “Aircraft Motor and Electrical Apparatus Environmental Test Method”
