J24H Series

J24H Series MIL-Spec Connectors

  1. Number of contacts: 10, 15, 19, 25, 26, 37, 38, 51, 52, 74
  2. This series of products uses stranded elastic pins (twist needles) for reliable contact.
  3. The end of the contact piece is a crimped product, and the cross-sectional area of the crimped wire ranges from 0.12 mm2 to 0.2 mm2.
  4. Metal shielded housing with clamps and quick-locking devices
  5. Adopt general specification: GJB2446-1995
  6. Executive standards: Q/Ln.J6-64C-2003

J24H Series Rectangular Connector

Technical Specifications

  • Ambient temperature: -55 °C~+125 °C
  • Relative humidity: up to 98% at +40 °C
  • Low air pressure: 4 kPa
  • Shock: 980 m/s2
  • Vibration: 10 Hz ~ 2000 Hz, 196 m/s2
  • Contact resistance ≤10 mΩ
  • Random vibration: Power spectral density 0.4 g2/Hz; Total acceleration rms value: 23.1 g
  • Insulation resistance: 9/19/25/37/52/74 contacts: ≥1000MΩ; 15/26/38/51 contacts: ≥5000 MΩ
  • Medium withstand voltage: 9/19/25/37/52/74 contacts 800 V; 15/26/38/51 contacts 1000 V
  • Mechanical life: 1000 times
  • Rated current: 3A



Contact arrangement

J24H contact arrangement 09 J24H contact arrangement 11 J24H contact arrangement 06 J24H contact arrangement 03
J24H-9 J24H-15 J24H-19 J24H-25

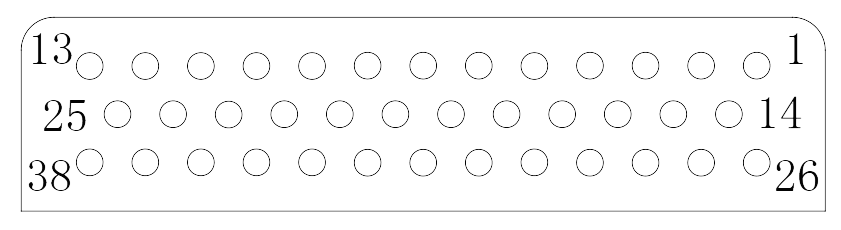

J24H contact arrangement 18 J24H contact arrangement 20 J24H contact arrangement 23 J24H contact arrangement 29
J24H-26 J24H-37 J24H-38 J24H-51
J24H contact arrangement 32 J24H contact arrangement 37
J24H-52 J24H-74



Product Tree

Shell

Plug

Socket
Ordinary type Ordinary type Ordinary type

Type II series

Soldering series Crimp type scries Soldering scries Crimp type scries Soldering series Crimp type series Bending PCB type Straight PCB type Soldering series

Crimp type series



Accessory

Socket accessory (Only for ordinary sockets)

Plug accessories

9, 15, 19, 25, 26, 37, 38, 51, 52, 74

9, 15, 19, 25, 26, 37, 38, 51, 52, 74



Contact
Plug Socket
Pin Plug Hole Plug Pin Socket Hole Socket

Note: As shown in the figure above, when selecting the J24H series, the user must specify the accessory in the order, but the receptacle accessory can only match the normal series receptacle.



Ordering Format

  • Plug ordering format
J24H 9 T J C
Main code:

  • J24H
J24H
Number of contacts:

  • 9, 15, 19, 25, 26, 37, 38, 51, 52, 74
9
Connector type:

  • T-plug
T
Contact type:

  • J-pin,
  • K-socket,
J
Contact form:

  • No marking-Crimping,
  • H-Soldering,
Plug form:

  • No marking- Normal type
  • C- C type
C

Note: The additional instructions are not part of the order format. If the customer selects the product in the crimp form, please indicate the wire specifications of the crimped wire in the brackets: wire cross-sectional area, length and color, etc. When the wiring specification is complicated, please give the wiring specification table.

Example:

J24H-9TJ-C (Additional Notes)

The above marks indicate that the number of contacts is 9, the type of contact is pin, and the contact is terminated with a J24H-C type plug. (Attached description: wire cross-sectional area, length and color, etc.)



  • Receptacle ordering format
J24H II 9 Z K H
Main code:

  • J24H
J24H
Receptacle form:

  • No marking- Normal type,
  • II- type II
II
Number of contacts:

  • 9, 15, 19, 25, 26, 37, 38, 51, 52, 74
9
Connector type:

  • Z- Receptacle
Z
Contact type:

  • J-pin,
  • K-socket,
K
Contact form:

  • No mark: Crimping,
  • H- Soldering,
  • N- Straight PCB type,
  • W- Right angle PCB type.
H

Note: The additional instructions are not part of the order format. If the customer selects the product in the crimp form, please indicate the wire specifications of the crimped wire in the brackets: wire cross-sectional area, length and color, etc. When the wiring specification is complicated, please give the wiring specification table.

Example:

J24H II -9ZKH

The above marks indicate that the number of contacts is 9, the contact type is the jack, and the contact is terminated in the form of a welded J24H II receptacle.
