J30J Large and Small Current Mixed Rectangular Marine-resistant Connector

Technical characteristics

Item	Parameter	Item	Parameter
Ambient temperature	-55°C~+125°C	Impact	735m/s2
Relative humidity	+40°C up to 98%	Insulation resistance	≥5000MΩ (normal)
Vibration	10Hz ~ 2000Hz, 196m/s2	Dielectric withstand voltage	800V (at sea level)
Random vibration	PSD (power spectral density): 0.4G2 /Hz	Contact resistance	≤10MΩ
	Root mean square value of total acceleration: 23. 1G	Mechanical life	500 times



Application

• The features of miniaturization and light weight make it suitable for occasions with special requirements for space;
• The product can withstand harsh conditions such as strong shock and vibration in the marine environment;
• The product meets the requirement of acidic salt spray, acidic atmosphere and mold in the marine environment.



Product Family Tree

• Male (Female) assembly

Male (Female) assembly
Crimped		Welded		Straight-inserted		Right-angle-inserted
J30J □□P□□ □ S □□□ C0 □□□ M□ (Male assembly)	J30J □□P□□ □ P □□□ C0 □□□ M□ (Female assembly)	J30J □□P□□ □ S □□□ S0 □□□ M□ (Male assembly)	J30J □□P□□ □ P □□□ S0 □□□ M□ (Female assembly)	J30J □□P□□ □ S □□□ N1 □□□ M□ (Male assembly)	J30J □□P□□ □ P □□□ N1 □□□ M□ (Female assembly)	J30J □□P□□ □ S □□□ W1 □□□ M□ (Male assembly)	J30J □□P□□ □ P □□□ W1 □□□ M□ (Female assembly)

• Locking accessories

Locking accessories
Free end locking accessories	Fixed end locking accessories
J30JL00 (for crimping and welding)	J30JP00, J30JP05, J30JP06. J30JP07, J30JP08, J30JP09, J30JP11, J30JP12C (for crimping and welding)	J30JP03C (for Straight-inserted connectors)	J30JP04, J30JP10C (for Right-angle-inserted connectors)

• Tail accessories

Tail accessories

two-part wire clamp

A3 (for welded)

As shown in the picture above, it is required for user to choose male (female) connectors and the locking accessories at the same time to form a complete assembly. In addition, the welded products require users to choose tail accessories (clamping parts) according to their actual needs.



Contact arrangement

02P02	03P03	04P04
05P05	06P06	07P07
08P08
09P09
10P10
09P02	11P04	21P02
25P02	27P02	39P02

Note: Viewed from the insertion side of plugs



Order mark

Example: J30J 25P02 J S C00 C0 000 M K – A3 (Additional instructions)

J30J	25P02	J	S	C00	C0	000	M	K	–	A3
①	②	③	④	⑤	⑥	⑦	⑧	⑨		⑩

①Main code: J30J;

②Contact arrangement (see table below)

Code	Arrangement	Code	Arrangement
02P02	2×20A pin	10P10	10×20A pin
03P03	3×20A pin	09P02	7×3A pin + 2×20A pin
04P04	4×20A pin	11P04	7×3A pin + 4×20A pin
05P05	5×20A pin	21P02	19×3A pin + 2×20A pin
06P06	6×20A pin	25P02	23×3A pin + 2×20A pin
07P07	7×20A pin	27P02	25×3A pin + 2×20A pin
08P08	8×20A pin	39P02	37×3A pin +2×20A pin
09P09	9×20A pin

③Types of small current contacts:

• 0 – with no small current contact,
• J – small current pin (3A),
• K – small current jack (3A);

④Types of high current contacts:

• S – high current jack (20A),
• P – high current pin (20A);

⑤Small current contact end:

• 000 – with no small current contact,
• C00 – crimped, the cross-sectional area of the core 0.10mm²~0.15mm²
• S00 – welded,
• N01 – Straight PCB,
• W01 – Right-angle PCB;

⑥High current contact end:

• C0 – crimped, core cross-sectional area 2.0mm² ~ 3.0mm²
• S0 – welded,
• N1 – Straight PCB,
• W1 – Right-angle PCB;

⑦Types of locking accessories:

• 000 – with no locking accessories,
• L00-free end locking accessories,
• P□□ -fixed end locking accessories (see the table below);

Code	Types of locking accessories	Code	Type of locking accessories
P00	Front mounted fixed end locking accessories. PCB thickness ≤2.5mm	P08	3.4mm back mounted fixed end locking accessory
P03	With supporting sleeves straight PCB fixed end locking accessory	P09	2.0mm back mounted fixed end locking accessory
P04	With mounting holes right-angle PCB fixed end locking accessories	P10	Right-angle PCB 2.0mm back mounted fixed end locking accessory
P05	0.6mm back mounted fixed end locking accessory	P11	Front mounted fixed end locking accessories with M3 threaded hole
P06	1.4mm back mounted fixed end locking accessory	P12	Front mounted fixed end locking accessories. PCB thickness ≤5.5mm
P07	2.2mm back mounted fixed end locking accessory



⑧Category:

• M-resistant to marine environment

⑨Material and shell coating:

• W-aluminum alloy, with military green paint applied on surface.
• K-high performance stainless steel

⑩Tail accessories:

• null – without tail accessories,
• A3 – two-part wire clamp (only for welding type)

Note: Additional instructions are not part of the order mark. Customers need to indicate the specifications of crimped wires (such as the cross-sectional area, length and color of the wires) in parentheses. When there are special connection requirements, it should be indicated.



• Crimped plug/socket

Crimped plug (male) J30J □□P□□ S □□□ C0 000 M□	Crimped socket (female) J30J □□P□□ □ P □□□ C0 000 M□
J30J 04P04 0 S 000 C0 000 M □	J30J 04P04 0 P 000 C0 000 M □

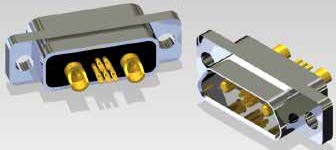

J30J 09P02 J S C00 C0 000 M □	J30J 09P02 K P C00 C0 000 M□



J30J □□P□□ S □□□ C0 000 M□					J30J □□P□□ □ P □□□ C0 000 M□
Plug	Value				Socket	Value
	A	B	C	D		A	B	C	D
J30J02P020S000C0000M □	23.2	18.8	12.9	14.5	J30J02P020P000C0000M □	23.2	18.8	14.4	14.5
J30J03P030S000C0000M □	27.3	22.9	17	18.6	J30J03P030P000C0000M □	27.3	22.9	18.5	18.6
J30J04P040S000C0000M □	31.4	27	21.1	22.7	J30J04P040P000C0000M □	31.4	27	22.6	22.7
J30J05P050S000C0000M □	36.3	30.9	25	26.6	J30J05P050P000C0000M □	36.3	30.9	26.5	26.6
J30J06P060S000C0000M □	39.6	35.2	29.3	30.9	J30J06P060P000C0000M □	39.6	35.2	30.8	30.9
J30J07P070S000C0000M □	43.7	39.3	33.4	35	J30J07P070P000C0000M □	43.7	39.3	34.9	35
J30J08P080S000C0000M □	47.8	43.4	37.5	39.1	J30J08P080P000C0000M □	47.8	43.4	39	39.1
J30J09P090S000C0000M □	51.9	47.5	41.6	43.2	J30J09P090P000C0000M □	51.9	47.5	43.1	43.2
J30J10P100S000C0000M □	56	51.6	45.7	47.3	J30J10P100P000C0000M □	56	51.6	47.2	47.3
J30J09P02JSC00C0000M □	29.7	24.5	18.6	20.2	J30J09P02KPC00C0000M □	29.7	24.5	20.1	20.2
J30J11P04JSC00C0000M □	36.3	30.9	25	26.6	J30J11P04KPC00C0000M □	36.3	30.9	26.5	26.6
J30J21P02JSC00C0000M □	36.3	30.9	25	26.6	J30J21P02KPC00C0000M □	36.3	30.9	26.5	26.6
J30J25P02JSC00C0000M □	36.3	30.9	25	26.6	J30J25P02KPC00C0000M □	36.3	30.9	26.5	26.6
J30J27P02JSC00C0000M □	36.3	30.9	25	26.6	J30J27P02KPC00C0000M □	36.3	30.9	26.5	26.6
J30J39P02JSC00C0000M □	42.8	37.3	31.4	33	J30J39P02KPC00C0000M □	42.8	37.3	32.9	33



• Welded plug/socket

Welded plug (male) J30J □□P□□ □ S □□□S0 000 M□	Welded socket (female) J30J □□P□□ □ P □□□ S0 000 M□
J30J 04P04 0 S 000 S0 000 M □	J30J 04P04 0 P 000 S0 000 M □
J30J 09P02 J S S00 S0 000M □	J30J 09P02 K P S000 S0 000 □



J30J □□P□□□ S □□□ S0 000 M□					J30J □□P□□ □ P □□□ S0 000 M□
Plug	Value				Socket	Value
	A	B	C	D		A	B	C	D
J30J02P020S000S0000M □	23.2	18.8	12.9	14.5	J30J02P020P000S0000M □	23.2	18.8	14.4	14.5
J30J03P030S000S0000M □	27.3	22.9	17	18.6	J30J03P030P000S0000M □	27.3	22.9	18.5	18.6
J30J04P040S000S0000M □	31.4	27	21.1	22.7	J30J04P040P000S0000M □	31.4	27	22.6	22.7
J30J05P050S000S0000M □	36.3	30.9	25	26.6	J30J05P050P000S0000M □	36.3	30.9	26.5	26.6
J30J06P060S000S0000M □	39.6	35.2	29.3	30.9	J30J06P060P000S0000M □	39.6	35.2	30.8	30.9
J30J07P070S000S0000M □	43.7	39.3	33.4	35	J30J07P070P000S0000M □	43.7	39.3	34.9	35
J30J08P080S000S0000M □	47.8	43.4	37.5	39.1	J30J08P080P000S0000M □	47.8	43.4	39	39.1
J30J09P090S000S0000M □	51.9	47.5	41.6	43.2	J30J09P090P000S0000M □	51.9	47.5	43.1	43.2
J30J10P100S000S0000M □	56	51.6	45.7	47.3	J30J10P100P000S0000M □	56	51.6	47.2	47.3
J30J09P02JSS00S0000M □	29.7	24.5	18.6	20.2	J30J09P02KPS00S0000M □	29.7	24.5	20.1	20.2
J30J11P04JSS00S0000M □	36.3	30.9	25	26.6	J30J11P04KPS00S0000M □	36.3	30.9	26.5	26.6
J30J21P02JSS00S0000M □	36.3	30.9	25	26.6	J30J21P02KPS00S0000M □	36.3	30.9	26.5	26.6
J30J25P02JSS00S0000M □	36.3	30.9	25	26.6	J30J25P02KPS00S0000M □	36.3	30.9	26.5	26.6
J30J27P02JSS00S0000M □	36.3	30.9	25	26.6	J30J27P02KPS00S0000M □	36.3	30.9	26.5	26.6
J30J39P02JSS00S0000M □	42.8	37.3	31.4	33	J30J39P02KPS00S0000M □	42.8	37.3	32.9	33



• Straight PCB plug/socket

Straight PCB plug (male) J30J □□P□□ □ S □□□ N1 000 M□	Straight PCB socket (female) J30J □□P□□ □ P □□□ N1 000 M□
J30J 04P04 0 S 000 N1 000 M □	J30J 04P04 0 P 000 N1 000 M □
J30J 09P02 J S N01 N1 000 M □	J30J 09P02 K P N01 N1 000 M □



J30J □□P□□ □ S □□□ N1 000 M□					J30J □□P□□ □ P □□□ N1 000 M□
Plug	Value				Socket	Value
	A	B	C	D		A	B	C	D
J30J02P020S000N1000M □	23.2	18.8	12.9	14.5	J30J02P020P000N1000M □	23.2	18.8	14.4	14.5
J30J03P030S000N1000M □	27.3	22.9	17	18.6	J30J03P030P000N1000M □	27.3	22.9	18.5	18.6
J30J04P040S000N1000M □	31.4	27	21.1	22.7	J30J04P040P000N1000M □	31.4	27	22.6	22.7
J30J05P050S000N1000M □	36.3	30.9	25	26.6	J30J05P050P000N1000M □	36.3	30.9	26.5	26.6
J30J06P060S000N1000M □	39.6	35.2	29.3	30.9	J30J06P060P000N1000M □	39.6	35.2	30.8	30.9
J30J07P070S000N1000M □	43.7	39.3	33.4	35	J30J07P070P000N1000M □	43.7	39.3	34.9	35
J30J08P080S000N1000M □	47.8	43.4	37.5	39.1	J30J08P080P000N1000M □	47.8	43.4	39	39.1
J30J09P090S000N1000M □	51.9	47.5	41.6	43.2	J30J09P090P000N1000M □	51.9	47.5	43.1	43.2
J30J10P100S000N1000M □	56	51.6	45.7	47.3	J30J10P100P000N1000M □	56	51.6	47.2	47.3
J30J09P02JSN01N1000M □	29.7	24.5	18.6	20.2	J30J09P02KPN01N1000M □	29.7	24.5	20.1	20.2
J30J11P04JSN01N1000M □	36.3	30.9	25	26.6	J30J11P04KPN01N1000M □	36.3	30.9	26.5	26.6
J30J21P02JSN01N1000M □	36.3	30.9	25	26.6	J30J21P02KPN01N1000M □	36.3	30.9	26.5	26.6
J30J25P02JSN01N1000M □	36.3	30.9	25	26.6	J30J25P02KPN01N1000M □	36.3	30.9	26.5	26.6
J30J27P02JSN01N1000M □	36.3	30.9	25	26.6	J30J27P02KPN01N1000M □	36.3	30.9	26.5	26.6
J30J39P02JSN01N1000M □	42.8	37.3	31.4	33	J30J39P02KPN01N1000M □	42.8	37.3	32.9	33

• Right-angle PCB Plug/socket

Right-angle PCB Plug (male) J30J □□P□□ □ S □□□ W1 000 M□	Right-angle PCB socket (female) J30J □□P□□ □ P □□□ W1 000 M□
J30J 04P04 0 S 000 W1 000M	J30J 04P04 0 P 000 W1 000 M □
J30J 09P02 J S W01 W1 000 M	J30J 09P02 K P W01 W1 000 M □



J30J □□P□□ □ S □□□ W1 000 M□					J30J □□P□□ □ P □□□ W1 000 M□
Plug	Value				Socket	Value
	A	B	C	D		A	B	C	D
J30J02P020S000W1000M □	23.2	18.8	12.9	14.5	J30J02P020P000W1000M □	23.2	18.8	14.4	14.5
J30J03P030S000W1000M □	27.3	22.9	17	18.6	J30J03P030P000W1000M □	27.3	22.9	18.5	18.6
J30J04P040S000W1000M □	31.4	27	21.1	22.7	J30J04P040P000W1000M □	31.4	27	22.6	22.7
J30J05P050S000W1000M □	36.3	30.9	25	26.6	J30J05P050P000W1000M □	36.3	30.9	26.5	26.6
J30J06P060S000W1000M □	39.6	35.2	29.3	30.9	J30J06P060P000W1000M □	39.6	35.2	30.8	30.9
J30J07P070S000W1000M □	43.7	39.3	33.4	35	J30J07P070P000W1000M □	43.7	39.3	34.9	35
J30J08P080S000W1000M □	47.8	43.4	37.5	39.1	J30J08P080P000W1000M □	47.8	43.4	39	39.1
J30J09P090S000W1000M □	51.9	47.5	41.6	43.2	J30J09P090P000W1000M □	51.9	47.5	43.1	43.2
J30J10P100S000W1000M □	56	51.6	45.7	47.3	J30J10P100P000W1000M □	56	51.6	47.2	47.3
J30J09P02JSW01W1000M □	29.7	24.5	18.6	20.2	J30J09P02KPW01W1000M □	29.7	24.5	20.1	20.2
J30J11P04JSW01W1000M □	36.3	30.9	25	26.6	J30J11P04KPW01W1000M □	36.3	30.9	26.5	26.6
J30J21P02JSW01W1000M □	36.3	30.9	25	26.6	J30J21P02KPW01W1000M □	36.3	30.9	26.5	26.6
J30J25P02JSW01W1000M □	36.3	30.9	25	26.6	J30J25P02KPW01W1000M □	36.3	30.9	26.5	26.6
J30J27P02JSW01W1000M □	36.3	30.9	25	26.6	J30J27P02KPW01W1000M □	36.3	30.9	26.5	26.6
J30J39P02JSW01W1000M □	42.8	37.3	31.4	33	J30J39P02KPW01W1000M □	42.8	37.3	32.9	33





Mating diagram



Locking accessories

Free end locking attachment: J30JL00
Assembly diagram	Dimensions



Fixed-end locking attachment: J30JP00, J30JP12
Assembly diagram	Dimensions
P/N A J30JP00 12.6 J30JP12 15.6



Fixed-end locking attachment: J30JP03
Assembly diagram	Dimensions



Fixed-end locking attachment: J30JP04
Assembly diagram	Dimensions



Fixed-end locking attachment: J30JP05, J30JP06, J30JP07, J30JP08, J30JP09
Assembly diagram		Dimensions
P/N	A	B	C
J30JP05	4.1	0.6	12.6
J30JP06	3.3	1.4	12.6
J30JP07	2.5	2.2	12.6
J30JP08	1.3	3.4	12.6
J30JP09	2.7	2	20



Fixed-end locking attachment: J30JP10
Assembly diagram	Dimensions



Fixed-end locking accessory: J30JP11
Assembly diagram	Dimensions



Wire clamp: J30J□□□A3
Wire clamp code	A	B	Wire clamp code	A	B
J30J02P02A3	23.3	14.5	J30J10P10A3	56. 1	47.3
J30J03P03A3	27.4	18.6	J30J09P02A3	29.8	20.2
J30J04P04A3	31.5	22.7	J30J11P04A3	36.4	26.6
J30J05P05A3	36.4	26.6	J30J21P02A3	36.4	26.6
J30J06P06A3	39.7	30.9	J30J25P02A3	36.4	26.6
J30J07P07A3	43.8	35	J30J27P02A3	36.4	26.6
J30J08P08A3	47.9	39.1	J30J39P02A3	42. 9	33
J30J09P09A3	52	43.2



Back/front mounted hole size

Front mounted hole size			Back mounted hole size
Contact arrangement	A	B	Contact arrangement	A	B
02P02	18.8	14.8	10P10	51.6	47.6
03P03	22.9	18.9	09P02	24.5	20.5
04P04	27	23	11P04	30.9	26.9
05P05	30.9	26.9	21P02	30.9	26.9
06P06	35.2	31.2	25P02	30.9	26.9
07P07	39.3	35.3	27P02	30.9	26.9
08P08	43.4	39.4	39P02	37.3	33.3
09P09	47.5	43.5
Note: For the J30JP11 type locking accessory, M3 threaded holes are directly opened on the mounting plate.



Straight PCB hole size

J30J □□P□□ 0S000 N1 000M□ Straight PCB hole size				J30J □□P□□ 0P000 N1 000M□ Straight PCB hole size
Contact arrangement	L	n	X	Contact arrangement	A	n	X
02P02	18.8	2	B	07P07	39.3	7	G
03P03	22.9	3	C	08P08	43.4	8	H
04P04	27	4	D	09P09	47.5	9	I
05P05	30.9	5	E	10P10	51.6	10	J
06P06	35.2	6	F



J30J09P02JSN01N1000M □ straight PCB hole size	J30J09P02KPN01N1000M □ straight PCB hole size
J30J11P04JSN01N1000M □ straight PCB hole size	J30J11P04KPN01N1000M □ straight PCB hole size

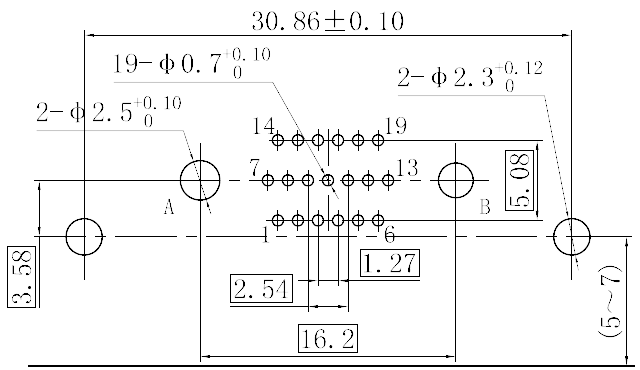

J30J21P02JSN01N1000M □ straight PCB hole size	J30J21P02KPN01N1000M □ straight PCB hole size
J30J25P02JSN01N1000M □ straight PCB hole size	J30J25P02KPN01N1000M □ straight PCB hole size
J30J27P02JSN01N1000M □ straight PCB hole size	J30J27P02KPN01N1000M □ straight PCB hole size
J30J39P02JSN01N1000M □ straight PCB hole size	J30J39P02KPN01N1000M □ straight PCB hole size



Right-angle PCB hole size

J30J □□P□□ 0S000 W1 000M □ right-angle PCB hole size				J30J □□P□□ 0P000 W1 000M □ right-angle PCB hole size
PCB edge				PCB edge
Contact arrangement	L	n	X	Contact arrangement	A	n	X
02P02	18.8	2	B	07P07	39.3	7	G
03P03	22.9	3	C	08P08	43.4	8	H
04P04	27	4	D	09P09	47.5	9	I
05P05	30.9	5	E	10P10	51.6	10	J
06P06	35.2	6	F



J30J09P02JSW01W1000M □ right-angle PCB hole size	J30J09P02KPW01W1000M □ right-angle PCB hole size
PCB edge	PCB edge
J30J11P04JSW01W1000M □ right-angle PCB hole size	J30J11P04KPW01W1000M □ right-angle PCB hole size
PCB edge	PCB edge
J30J21P02JSW01W1000M □ right-angle PCB hole size	J30J21P02KPW01W1000M □ right-angle PCB hole size
PCB edge	PCB edge
J30J25P02JSW01W1000M □ right-angle PCB hole size	J30J25P02KPW01W1000M □ right-angle PCB hole size
PCB edge	PCB edge
J30J27P02JSW01W1000M □ right-angle PCB hole size	J30J27P02KPW01W1000M □ right-angle PCB hole size
PCB edge	PCB edge
J30J39P02JSW01W1000M □ right-angle PCB hole size	J30J39P02KPW01W1000M □ right-angle PCB hole size
PCB edge	PCB edge
