JGC-3031 (4JG0.5-1) Optical-MOS Relay

  1. Bidirectional configuration
  2. Ceramic housing standard DIP-16 package
  3. Input and output photovoltaic isolation
  4. Wide input voltage and input current range
  5. Fast switching speed
  6. Environmental adaptability
  7. High reliability
  8. Standard: Q/RY.J01159.3—2010
Category:

Description

JGC-3031(4JG0.5-1) Optical-MOS Relay

Standard

Q/RY.J01159.3—2010



Application

Suitable for defense, scientific research, industrial control and modern management, such as isolated drive for aerospace, aviation and terrestrial electronic equipment, coupled amplification of digital signals, switching of analog signals, power transistor drive, measuring instruments, etc. Suitable for harsh environments.

Technical Parameters Min. Typ. Max. Unit
Input Parameters
Rated input current 10 mAd.c.
Input current range 5 25 mAd.c.
Input switching current 5.0 mAd.c.
Input shutdown voltage 0.8 Vd.c.
On time 1.5 ms
Shutdown time 0.4 ms
Output parameters
Output configuration Bidirectional
Number of output circuit groups 4H (4 groups N.O.)
Rated output current ±0.5 Ad.c.
Rated output voltage ±50 Vd.c.
Output on-resistance ≤2.0
Output leakage current ≤1.0 μA
Transient voltage ±60 Vd.c
Electrical insulation parameters
Insulation resistance 1000
Dielectric withstand voltage 1000 Vr.m.s.
Power consumption 2.2 W
Environmental parameters
Seal leak rate 1×10-2 Pa·cm3/s
Random vibration 40
10~2000
(m/s2)2/Hz, Hz
High Frequency Vibration 294, 10~3000 m/s2, Hz
Constant acceleration 49000 m/s2
Shock 14700, 0.5 m/s2, ms
Storage temperature -55~125
Operating temperature -55~105
Other parameters
Weight 2.5 g
Dimensions 10.16×7.6×3.8 mm

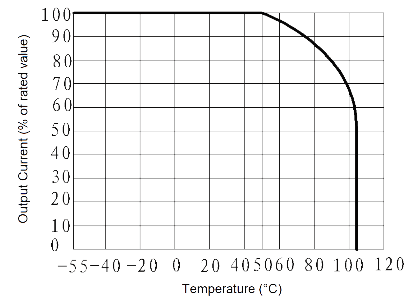

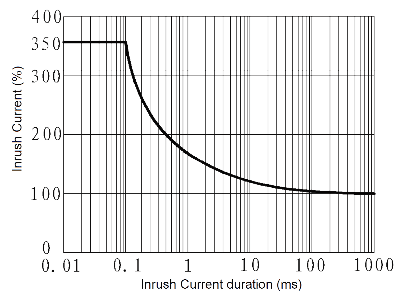

Fig.1: Turn-On time vs. Output Voltage Fig. 2: Output Current vs. Temperature curve Fig. 3: Inrush Current vs. Inrush Current duration curve
JGC30314JG0.5 1 Fig.1 Turn On time vs. Output Voltage - JGC-3031 (4JG0.5-1) Optical-MOS Relay JGC30314JG0.5 1 Fig. 2 Output Current vs. Temperature curve - JGC-3031 (4JG0.5-1) Optical-MOS Relay JGC30314JG0.5 1 Fig. 3 Inrush Current vs. Inrush Current duration curve - JGC-3031 (4JG0.5-1) Optical-MOS Relay

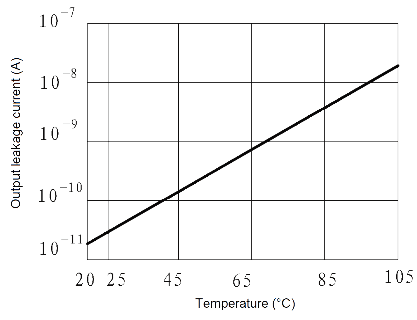

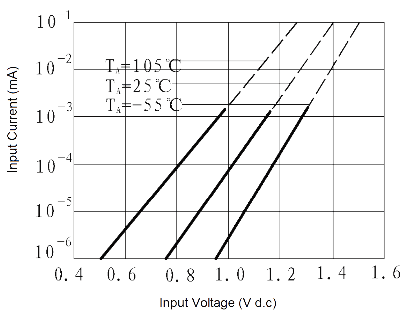

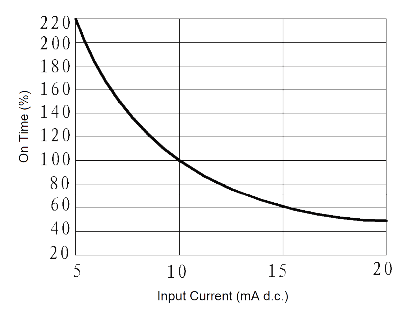

Fig. 4: On time vs. Input Current curve Fig. 5: Input Current vs. Input Voltage curve Fig. 6: Output leakage current vs. Temperature curve
JGC30314JG0.5 1 Fig. 4 On time vs. Input Current cune - JGC-3031 (4JG0.5-1) Optical-MOS Relay JGC30314JG0.5 1 Fig. 5 Input Current vs. Input Voltage curve - JGC-3031 (4JG0.5-1) Optical-MOS Relay JGC30314JG0.5 1 Fig. 6 Output leakage current vs. Temperature curve - JGC-3031 (4JG0.5-1) Optical-MOS Relay

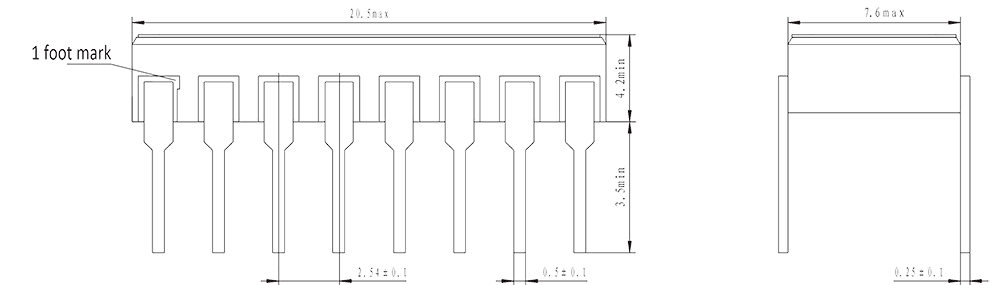

Drawing
JGC30314JG0.5 1 Drawing - JGC-3031 (4JG0.5-1) Optical-MOS Relay

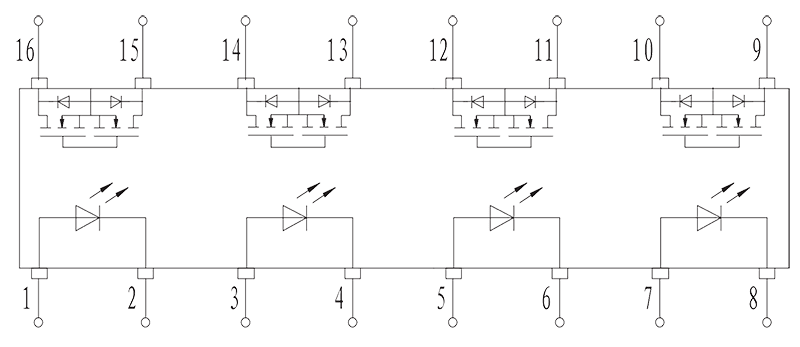

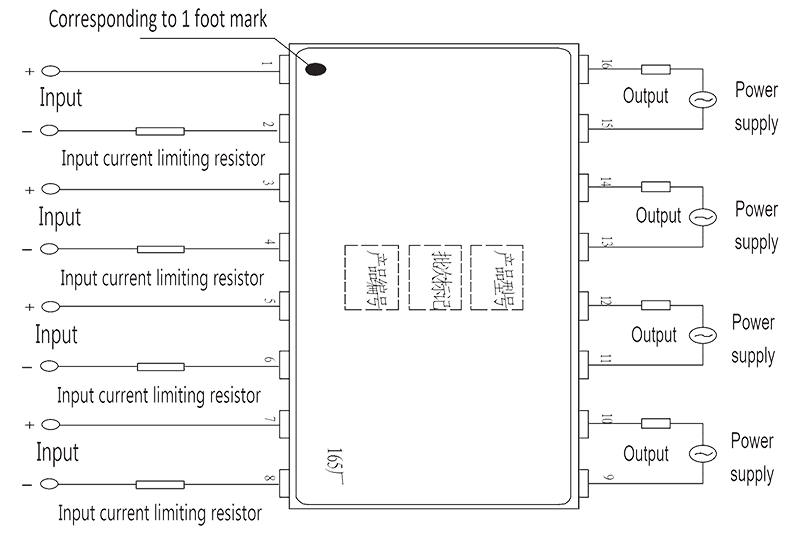

Internal circuit diagram Overhead wiring diagram
JGC30314JG0.5 1 Internal circuit diagram - JGC-3031 (4JG0.5-1) Optical-MOS Relay JGC30314JG0.5 1 Overhead wiring diagram - JGC-3031 (4JG0.5-1) Optical-MOS Relay



Order Mark

Example: JGC-3031Y

JG C 3031 Y
Solid relay main name Shape symbol (W, C or X) Design Number Screening level

Note: The screening level (Y or W) and DIP/SMD should be indicated.
