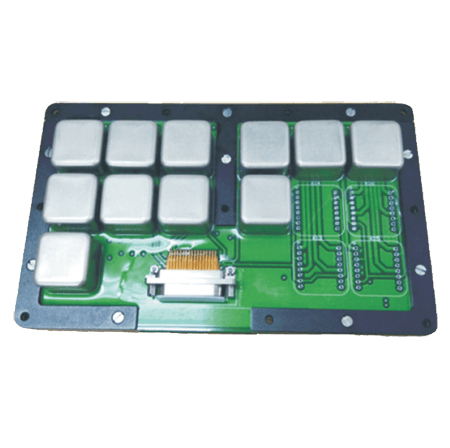

UK-66/00-10 Launch Control Panel

  • Pulse interference resistance for input
  • The launch output realizes the load positive and negative dual control, each output has its own current limiting resistor, which can be adjusted according to the launch current.

Dimensions:180mm×110mm×43mm

Description

Main Function

Items Performance Remarks
Operating voltage range 18Vd.c.~34Vd.c.
Working/storage temperature range -40°C ~60°C/-55oC~105°C
Output 34 launch output Can be reduced according to needs
Launch current ≤10A/200ms Can be fine-tuned according to the launch time, each way contains current limiting resistor
Launch voltage 28.5Vd.c. Up to 60Vd.c.
Anti-interference performance of input control signal ≤5ms Adjustable
Environmental stress According to GJB1032
Environmental adaptability High temperature, low temperature, temperature shock, temperature-altitude, mold, salt spray, damp heat, acceleration, vibration, shock, noise, road transportation, etc. Test under GJB150, parameters customized
Life 15 years
Weight <1kg
Structure / electrical interface Screw installation/ J30J-74ZKW-I-P7,

J30J-100ZKW-I-P7 connector
